RED Expander module with CTRL(RS232) port required. (10-1320-A) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

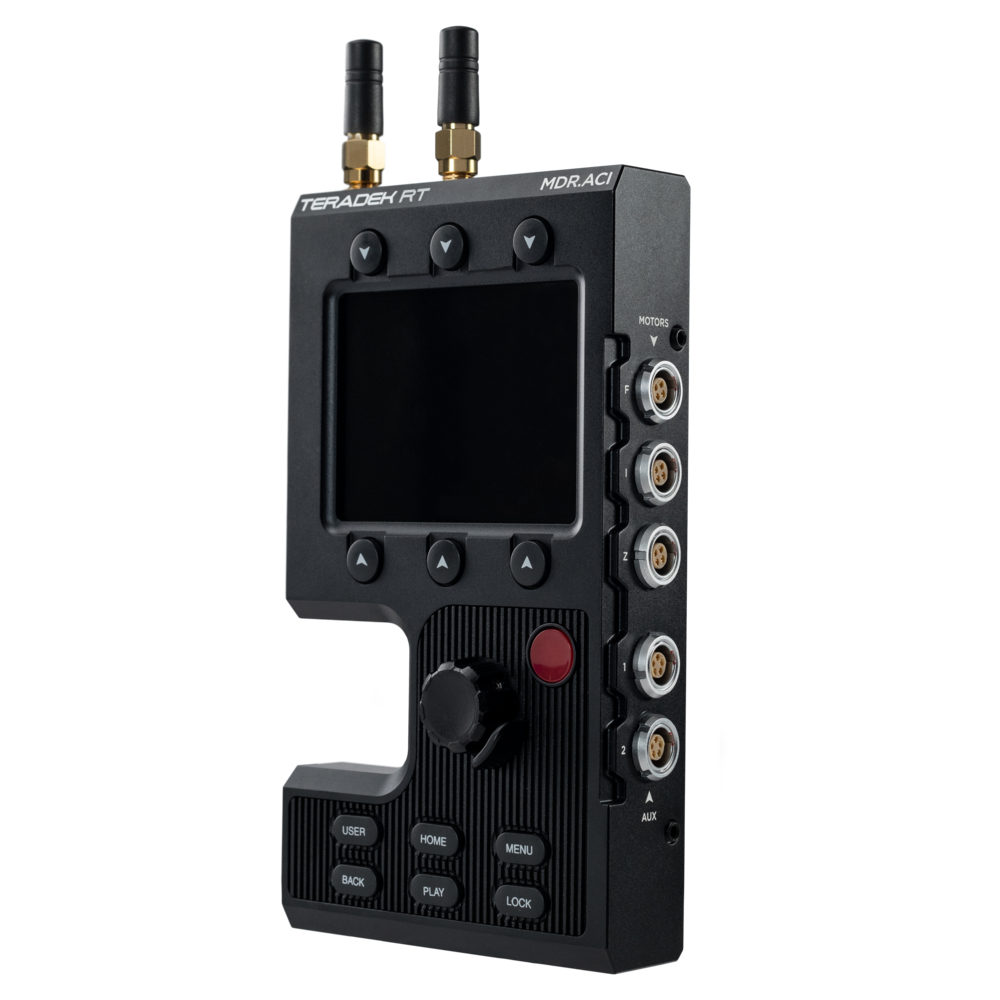

MDR.ACI Assistant Camera Interface with Integrated MDR to Power RT Motors – 10-1320-A

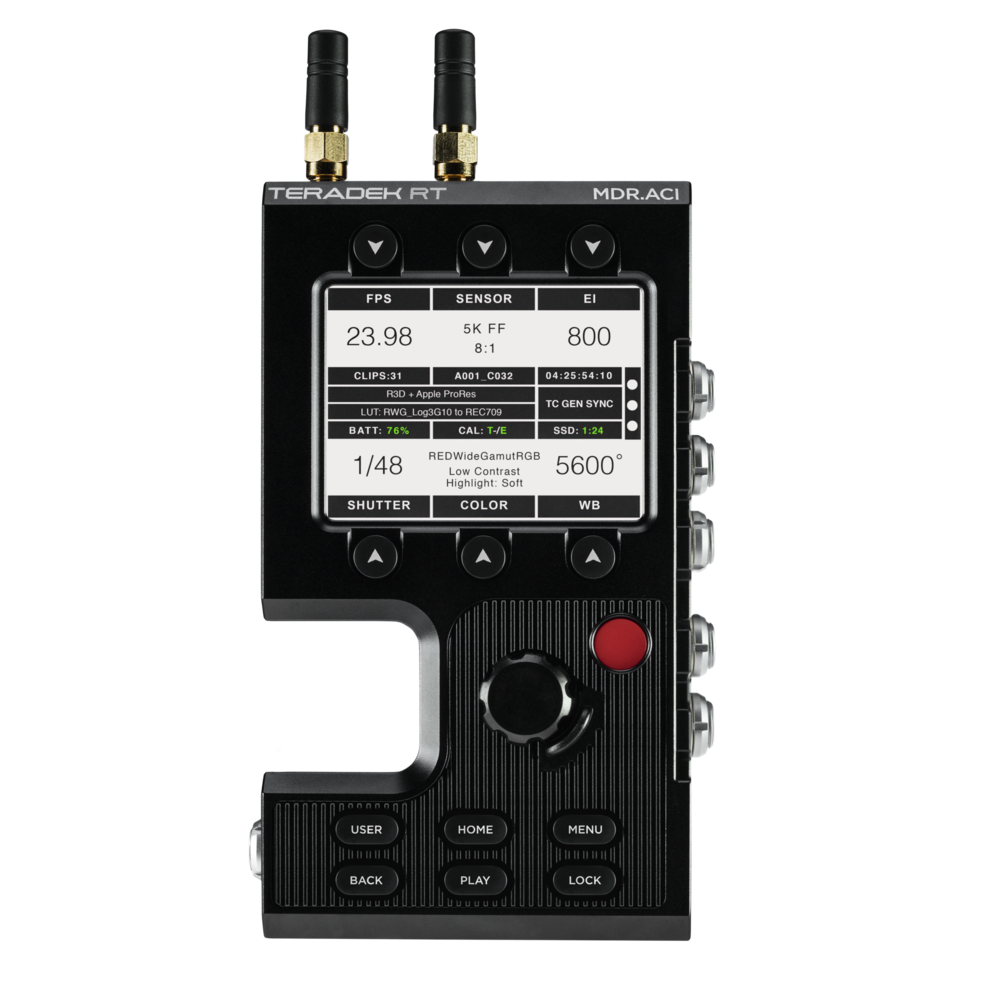

Easily access RED camera settings via an intuitive menu system on integrated LCD display
Connects seamlessly to the assistant side of RED DSMC2 cameras.
Redesigns RED’s default camera menu.
Dedicated button and jog wheel controls to navigate through settings.
Fully customizable button layout.
Integrated 3-channel MDR for wireless FIZ controls with Teradek RT.
Up to 5,000 ft. of wireless range.
Brand
Teradek
Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content.
Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek
Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
| Weight | 5 kg |
|---|---|
| In the box | 1 x ACUI Top Bracket 1 x ACUI Bottom Bracket 4 x Screw Steel Nylon-Tip Set M4 x 8mm 4 x Screw Socket Head Cap Black Oxide M3 x 4mm 1 x Hex L key 2mm size 3-3/8" length 1 x Hex L-Key, 3 mm Size, 2-9/16" Overall Length 1 x Assistant Camera Interface 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable 1 x ACI Control + Power Cable [11-0262] 2 x Antenna Straight WiFi 2.4 GHz RP-SMA |

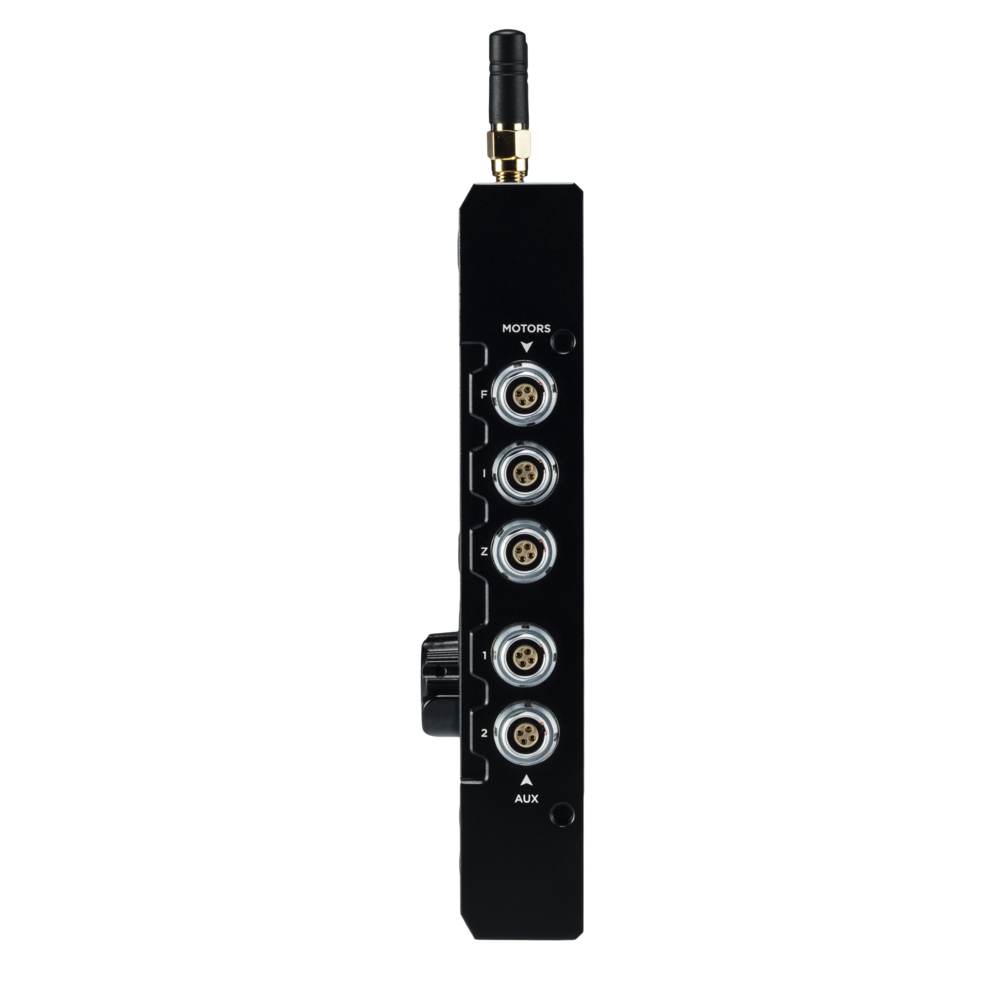

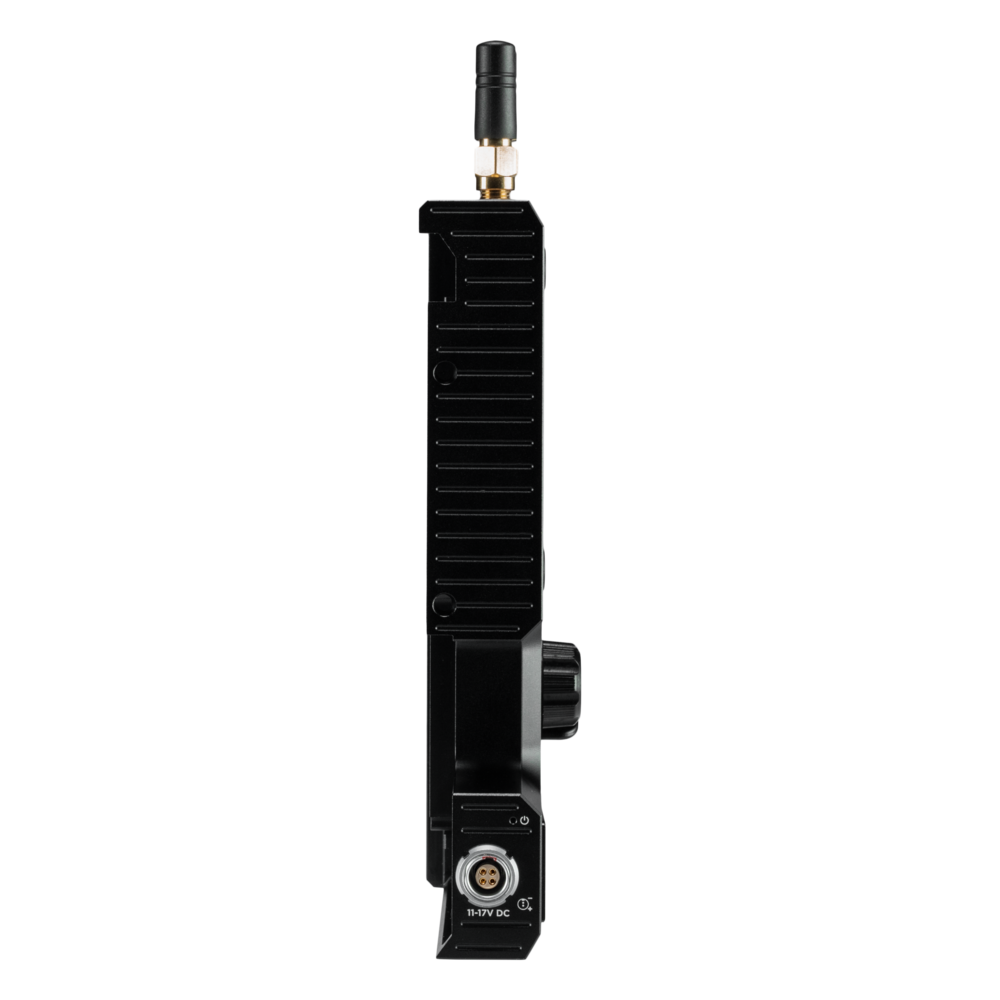

| Specs | Technical Specifications: #Protocol Support – Network Protocols : RED Command Protocol (RCP) – Rf Handset Support : MK3.1 Controller CTRL.1 Controller – Camera Runstop Support : RED DSMC2 Cameras – Full Control : RED DSMC2 Cameras – Teradek Rt Accessory Support : MK3.1 Motor Thumbwheel Smartknob MK3.1 Controller CTRL.1 Controller – App Support : FoolControl for iOS, Android, and OSX devices #Wireless – Integrated Radios : Teradek RT FHSS 2.4GHz – Fhss : Up to 5000ft (1500m) line-of-sight (in USA/FCC mode) Up to 500ft (150m) indoors – Bluetooth : Bluetooth BLE 5.0 #Physical Attributes – Dimensions : 0.9", x 3.1" x 5.7", (23.7mm x 79.6mm x 143.9mm) – Weights : 9.6oz (272g) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : Mount to DSMC2 bracket (included) with M4 screws. – Operating Temperature : -4 to 122°F (-20 to 50°C) #Interfaces – Configuration Interface : 13 menu function buttons and jog wheel controller – Connectors : 1x Power & Control input, 3x Motor ports, 2x Slave controller inputs – Usb Interface Functionality : Upgrade via Micro-USB #Connectors – Power And Camera Input Ctrl : Power: 4-pin circular-locking connector, 7-17V DC CTRL (Camera): 4-pin circular-locking connector, RS-232 for RED control – Motor Inputs : 3x 4-pin motor ports – Auxiliary Inputs : 2x 4-pin locking connector – Microusb : Configuration and Firmware upgrade #Power – Power Input : 4-Pin Circular-locking connector (7-24V DC) or DSMC2 Battery Module – Nominal Power Consumption : 3 W + Motors |
| UPC | 818264024355 |
