with
Teradek Protective Case
Description

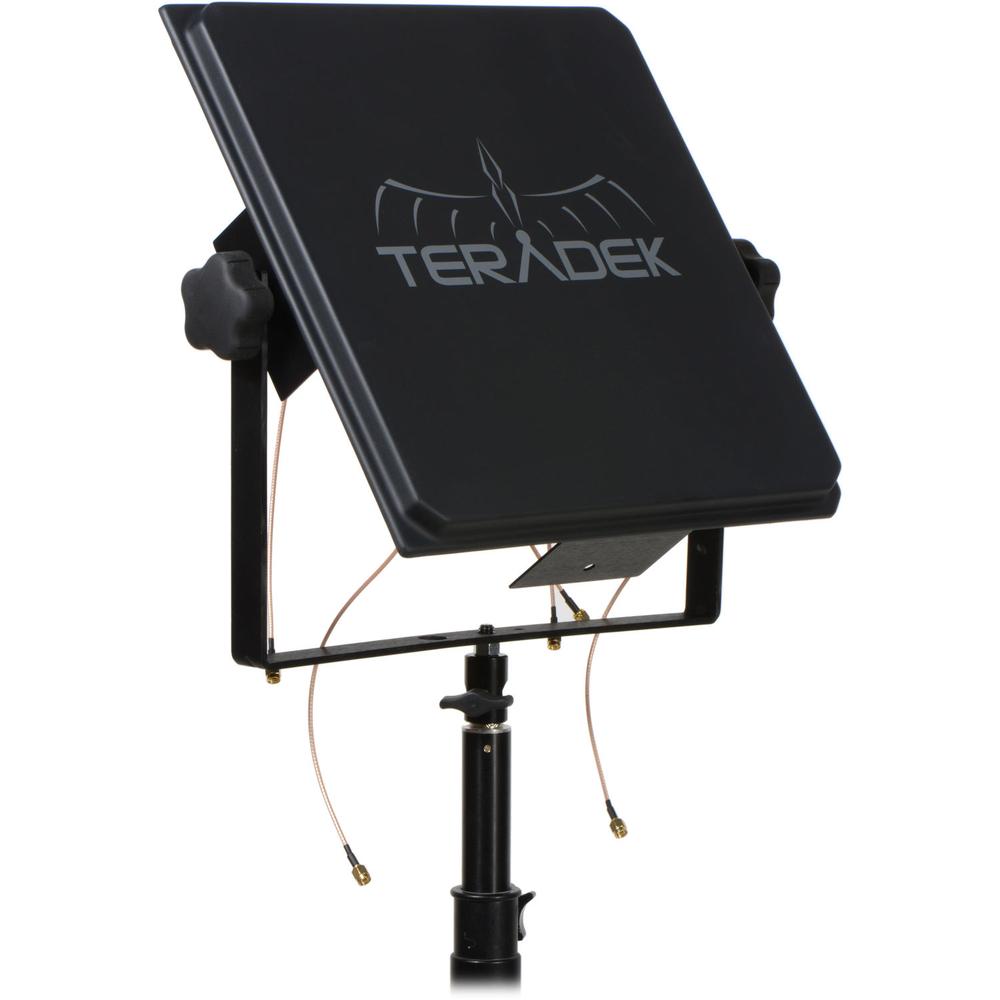

The Panel Array Antenna is your go-to solution for cutting through wireless interference in crowded environments. When attached to a Bolt 1000 or 3000, the antenna provides an extremely robust directional signal that will ensure your signal arrives uninterrupted.
Watch BC Live Production’s Range Testing with the Panel Array Antenna

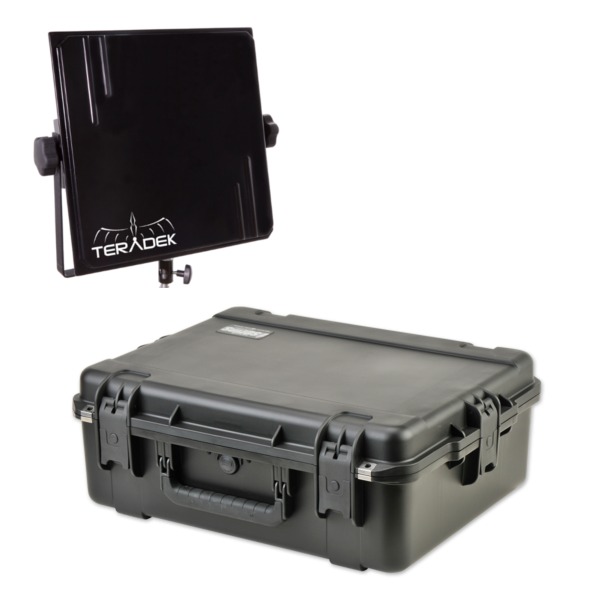

Comes with the Teradek Antenna Array and a Protective SKB Case with custom foam. The custom foam was designed to accommodate the Antenna Array, 1 Bolt Transmitter and up to 2 Bolt Receivers. The Teradek Array is a 5GHz MIMO panel antenna designed for use with Beam, Bolt 600, 1000, 2000, 3000 Receivers (Bolt Transmitters, Bolt 300 and Sidekick are not supported). The Array offers a more resilient wireless transmission, especially in challenging RF conditions, by focusing the signal and reducing interference. As a result, you may achieve a boost in the reception range but it will not be above the maximum range.
Features
Focuses the wireless signal and reduces interference to achieve a boost in reception range (but not above max range of Bolt set)
Composed of 3×16 dBi and 2×14 dBi antennas using 5.1-5.8 GHz MIMO
Small, Lightweight and made from UV-protected plastic with aluminum alloy
Watch BC Live Productions Range Test with the Antenna Array – or – Watch NEBTEK’s Bolt 3000 Range Test
More Info
Teradek Protective Case

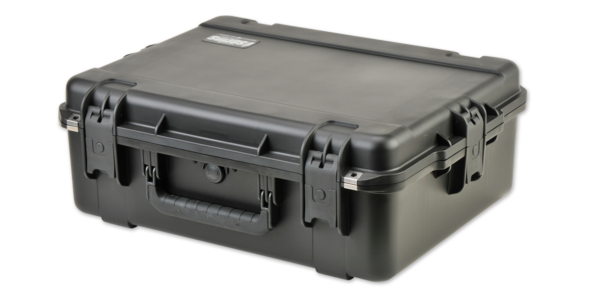

The Teradek Protective SKB Case is an injection molded Military-Standard Waterproof Case molded of ultra high-strength polypropylene copolymer resin, featuring a gasketed, water and dust tight, submersible design that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve, resistance to UV, solvents, corrosion, fungus and impact damage.
Features
Waterproof and dust tight design
Molded-in hinge for added protection
Trigger release latch system
Snap-down rubber over-molded cushion grip handle
Ambient pressure equalization valve
Resistant to UV, solvents, corrosion, fungus
Resistant to impact damage
Technical Specs
Connector Types of Included Cables
5x 10″ (25 cm) right-angle N to RP-SMA cables
Frequency Range
5.1 – 5.8 GHz
Dimensions
13.8 x 13.8 x 1.25″ (35 x 35 x 3.2 cm)
Weight
2.45 lbs
Protective Case Specs:
Lid Depth:
2.00 in
5.08 cm
Base Depth:
6.00 in
15.24 cm
Interior Length:
22.00 in
55.88 cm
Interior Width:
17.00 in
43.18 cm
Interior Depth:
8.00 in
20.32 cm
Interior Cu. Volume:
1.73 cu ft
0.05 cu m
Exterior Length:
24.32 in
61.77 cm
Exterior Width:
19.50 in
49.53 cm
Exterior Depth
8.86 in
22.50 cm
Exterior Cu. Volume:
2.43 cu ft
0.07 cu m
Max. Temperature
180.00° F
82.22° C
Min. Temperature
-69.00° F
-56.11° C
Max. Buoyancy
109.00 lb
50.00 kg
Carton Length:
23.75 in
60.33 cm
Carton Width:
19.63 in
49.85 cm
Carton Depth:
9.00 in
22.86 cm
Carton Cu. Volume:
2.43 cu ft
0.07 cu m
Product Weight:
10.95 lb
4.97 kg
Shipping Weight:
13.00 lb
5.90 kg
with
Just Antenna and Mount (No Protective Case)
Description
The Panel Array Antenna is your go-to solution for cutting through wireless interference in crowded environments. When attached to a Bolt 1000 or 3000, the antenna provides an extremely robust directional signal that will ensure your signal arrives uninterrupted.
Watch BC Live Production’s Range Testing with the Panel Array Antenna
Comes with the Teradek Antenna Array and a Protective SKB Case with custom foam. The custom foam was designed to accommodate the Antenna Array, 1 Bolt Transmitter and up to 2 Bolt Receivers. The Teradek Array is a 5GHz MIMO panel antenna designed for use with Beam, Bolt 600, 1000, 2000, 3000 Receivers (Bolt Transmitters, Bolt 300 and Sidekick are not supported). The Array offers a more resilient wireless transmission, especially in challenging RF conditions, by focusing the signal and reducing interference. As a result, you may achieve a boost in the reception range but it will not be above the maximum range.
Features
Focuses the wireless signal and reduces interference to achieve a boost in reception range (but not above max range of Bolt set)
Composed of 3×16 dBi and 2×14 dBi antennas using 5.1-5.8 GHz MIMO
Small, Lightweight and made from UV-protected plastic with aluminum alloy
Watch BC Live Productions Range Test with the Antenna Array – or – Watch NEBTEK’s Bolt 3000 Range Test
More Info (11-0028) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
