with
Teradek Protective Case
Description
Includes:
1 Panel Antenna Array
1 SKB Waterproof Utility Case ( 22 x 17 x 8 inches)
1 Mounting Bracket for use with a Teradek Beam Receiver

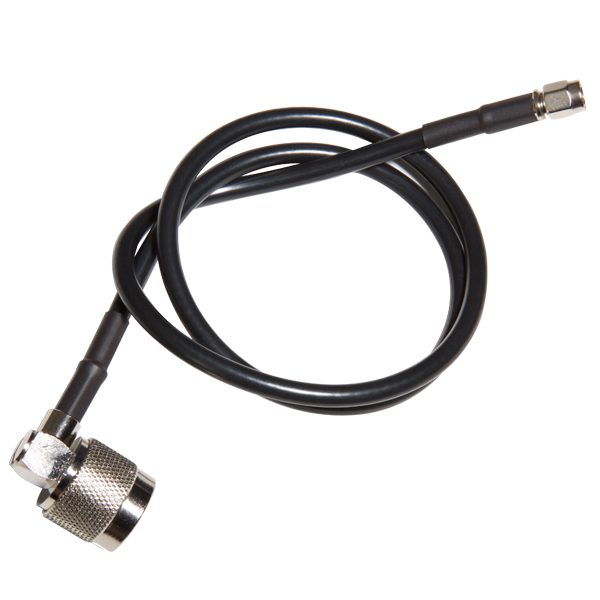

3 N-Male to SMA-Male 24 Inch Cables (for use with Beam Rx Only)
1 lightstand adapter 3/8 inch
*Beam Rx NOT Included

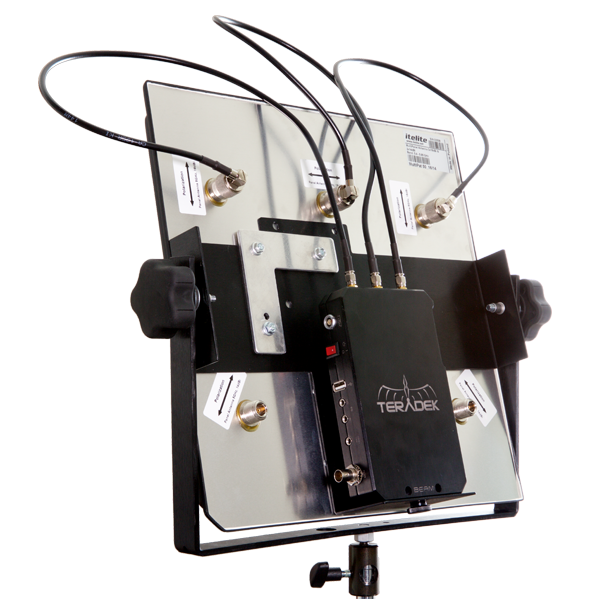

Panel Antenna Array 5GHz 3x16dBi 2×14 dBi Black with with a receiver mounting bracket
The Teradek Array is a 5GHz MIMO panel antenna designed for use with Beam, Bolt 600 and Bolt 2000 receivers. The Array offers a more resilient wireless transmission, especially in challenging RF conditions, but it will not increase range.
SKB iSeries Injection Molded Mil-Standard Waterproof Cases are molded of ultra high-strength polypropylene copolymer resin, featuring a gasketed, water and dust tight, submersible design that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve, resistance to UV, solvents, corrosion, fungus and impact damage.
Features
Waterproof and dust tight design
Molded-in hinge for added protection
Trigger release latch system
Snap-down rubber over-molded cushion grip handle
Ambient pressure equalization valve
Resistant to UV, solvents, corrosion, fungus
Resistant to impact damage
Technical Specs
Antenna Array Specs:
SKB Case Specs:
Lid Depth:
2.00 in
5.08 cm
Base Depth:
6.00 in
15.24 cm
Interior Length:
22.00 in
55.88 cm
Interior Width:
17.00 in
43.18 cm
Interior Depth:
8.00 in
20.32 cm
Interior Cu. Volume:
1.73 cu ft
0.05 cu m
Exterior Length:
24.32 in
61.77 cm
Exterior Width:
19.50 in
49.53 cm
Exterior Depth
8.86 in
22.50 cm
Exterior Cu. Volume:
2.43 cu ft
0.07 cu m
Max. Temperature
180.00° F
82.22° C
Min. Temperature
-69.00° F
-56.11° C
Max. Buoyancy
109.00 lb
50.00 kg
Carton Length:
23.75 in
60.33 cm
Carton Width:
19.63 in
49.85 cm
Carton Depth:
9.00 in
22.86 cm
Carton Cu. Volume:
2.43 cu ft
0.07 cu m
Product Weight:
10.95 lb
4.97 kg
Shipping Weight:
13.00 lb
5.90 kg
with
Just Antenna and Mount (No Protective Case)
Description
Includes:
1 Panel Antenna Array
1 Mounting Bracket for use with a Teradek Beam Receiver
3 N-Male to SMA-Male 24 Inch Cables (for use with Beam Rx Only)
1 lightstand adapter 3/8 inch
*Beam Rx NOT Included
Panel Antenna Array 5GHz 3x16dBi 2×14 dBi Black with with a receiver mounting bracket
The Teradek Array is a 5GHz MIMO panel antenna designed for use with Beam, Bolt 600 and Bolt 2000 receivers. The Array offers a more resilient wireless transmission, especially in challenging RF conditions, but it will not increase range. (11-0033) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
