The Paralinx Tomahawk2 is a long-range HD video system offering real-time wireless HD transmission for your Television, Film, Broadcast, Industrial or UAV/UAS application.
The Tomahawk2 features several improvements from the original Tomahawk:
Dual-Input Transmitter (HD-SDI & HDMI)
Receiver is lighter and 60% smaller
Input voltage range is now 6-28V on Transmitter
Machined-aluminum Receiver enclosure improves durability
Integrated 1/4-20 & 4-40 mounting points on Tx/Rx
Compatible with Teradek Sidekick (1stGen)
Compatible with Teradek Bolt 2000, Sidekick1, or Paralinx Tomahawk (1st Gen)*
Manual Channel Selection & Pairing Interface using new on-screen menu interface
All Transmitter+Receiver sets include custom case

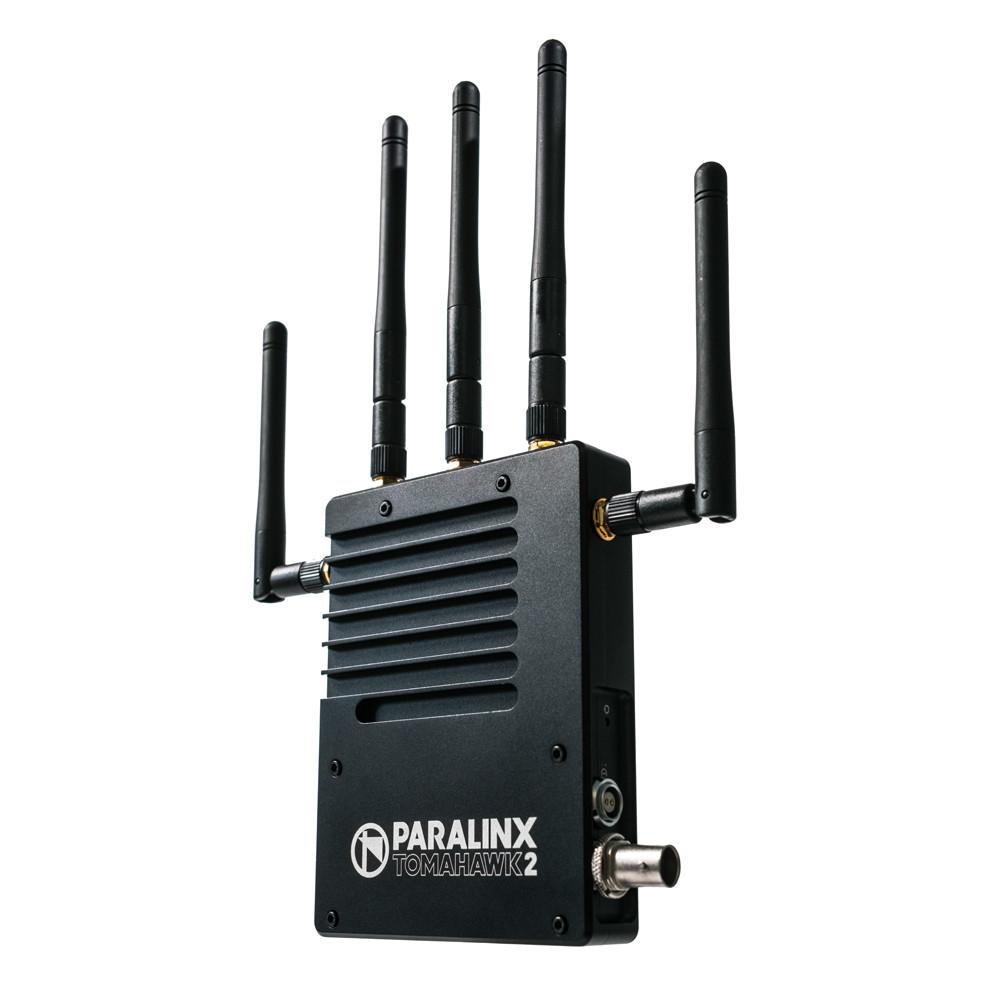

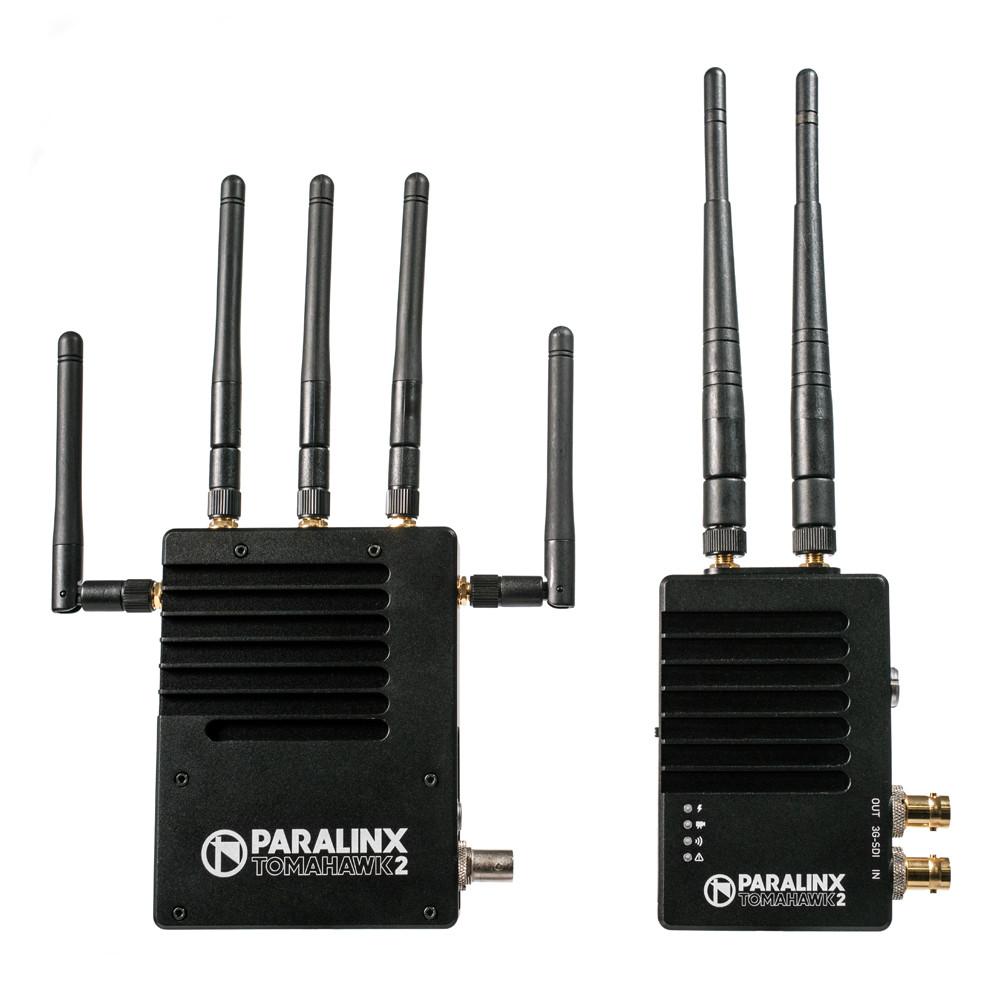

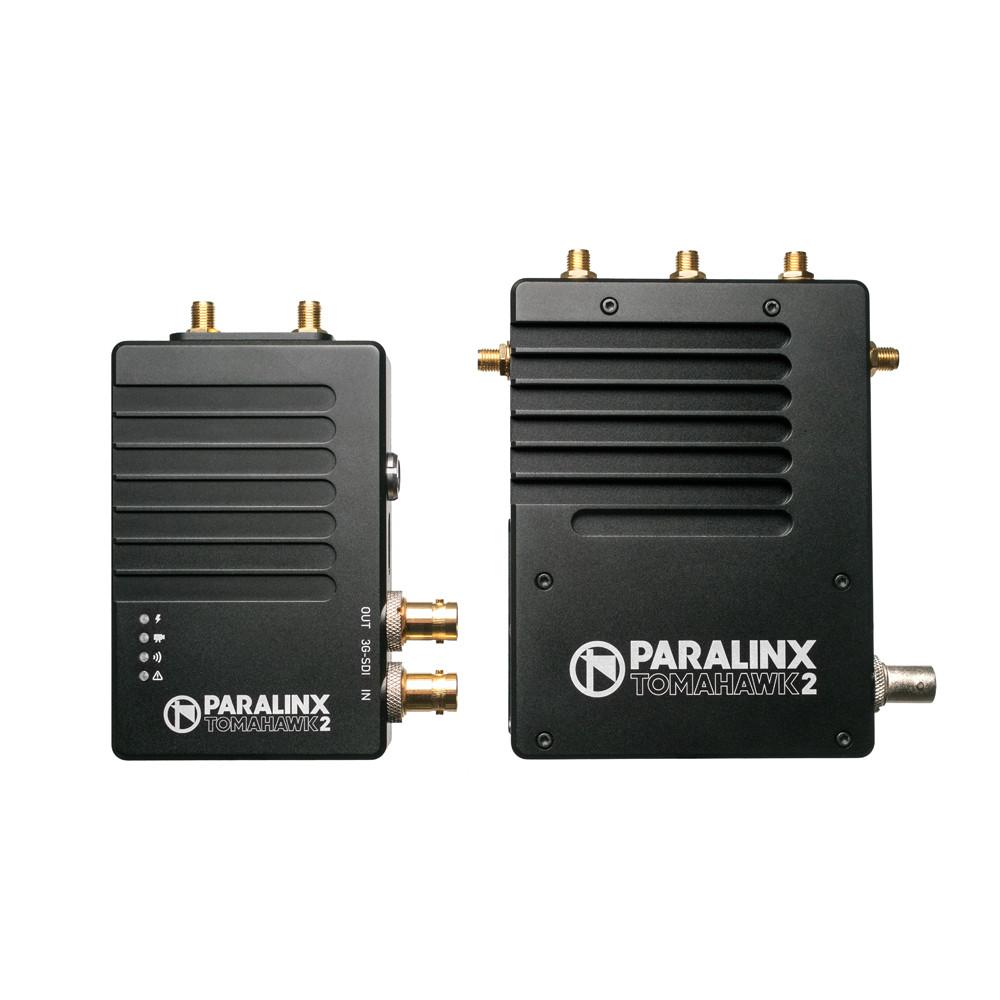

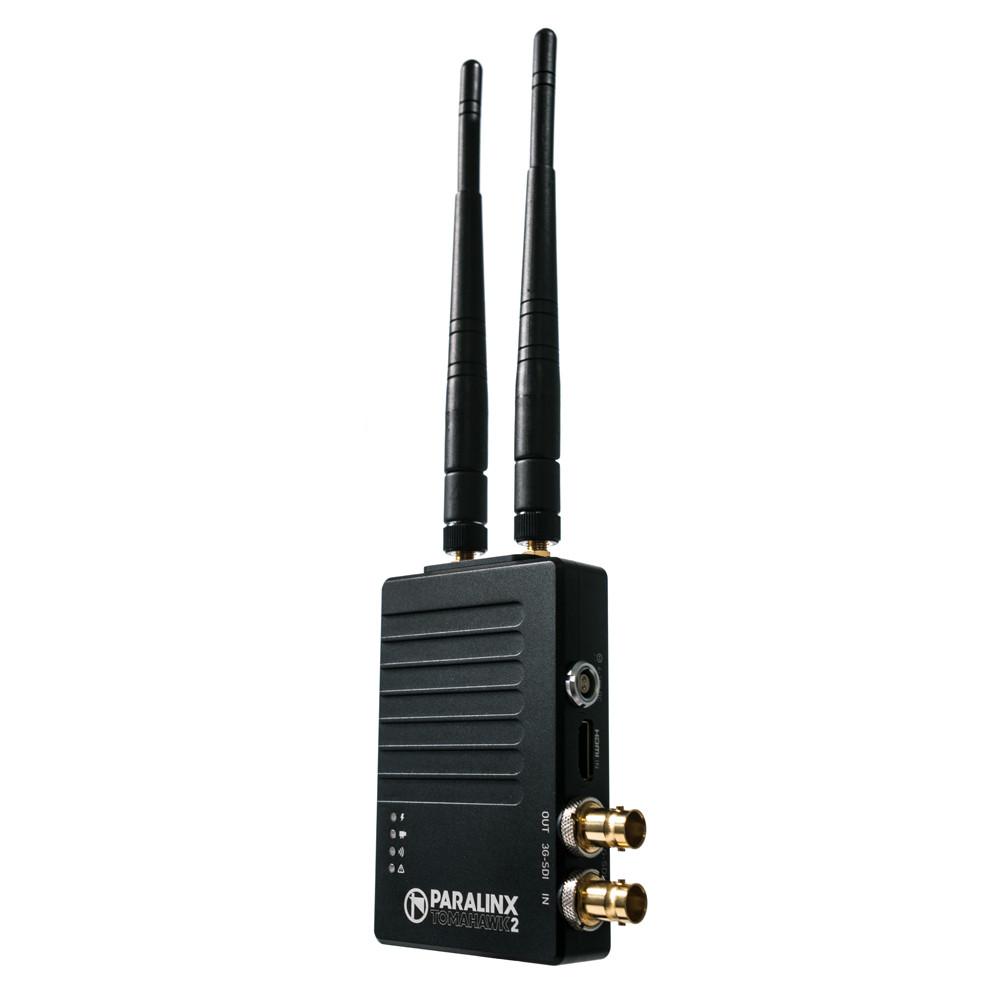

The Paralinx Tomahawk2 has a range of up to 2000 feet** (600m) and maintains an incredible <1ms latency glass-to-glass. Both the transmitter and receiver feature 2-Pin power connectors and the transmitter features a wide 6-28V input voltage range (receiver has 7-17V input). The Tomahawk2 system features both 3G-SDI input (with loop-out) & HDMI input on the transmitter, and a 3G-SDI output on the receiver. The Tomahawk2 transmits Full-HD video (up to 1080p/60 4:2:2) and is capable of sending video to up to 4 receivers simultaneously. The transmitter weighs approximately 7.3oz/208g (without antennas) and the receiver weighs only 8.9oz/252g (without antennas). The Paralinx Tomahawk2 System is available for US$7,499.95 for one transmitter and receiver pair. Additional receivers can be purchased for US$3,699.95 each. Battery plates, antennas, mounting brackets, power cables, and custom cases are all available as accessories to help customize your set-up. Tomahawk2 Features: Lightweight Minimalist design for Handheld, Steadicam, Gimbal, and UAV Payload Transmitter features both 3G-SDI & HDMI inputs and SDI loop-out. Receiver features 3G-SDI output. Rugged machined-aluminum enclosure for both the transmitter and receiver Ultra long-range transmission - Up to 2,000 feet (600 meters) ** REAL-TIME viewing - Less than 1 millisecond latency Visually lossless full-HD video signal allow critically accurate monitoring Multicast capable (up to 4 receivers per transmitter) 128 bit AES Encryption - Secure transmission Operates on 5gHz frequency band Conforms to major technical and environmental standards including FCC, CE, MIC (TELEC) and RoHS Specifications Click here for supported frame rates *When linked to a Bolt 2000 or Paralinx Tomahawk (1st Gen) unit the following features are not supported: PsF video, Run/Stop, Timecode **Range may vary depending on environment and interference Dimensions (Tx): 4.1in x 2.6in x 0.9in (not including antennas/connectors)Dimensions (Tx): 104mm x 66mm x 22mmWeight (Tx): 7.3oz / 208g (without antennas) Dimensions (Rx): 4.6in x 3.5in x 0.9in (not including antennas/connectors)Dimensions (Rx): 117mm x 88mm x 22mmWeight (Rx): 8.9oz / 252g (without antennas) 1:1 Kits include:1x Tomahawk2 SDI/HDMI transmitter1x Tomahawk2 SDI receiver1x PTap to 2-pin power cable (18in/45cm)1x AC power supply with 2-pin connector1x 18in BNC Cable (right-angle to right-angle)1x HDMI Cable (18in/45cm)1x Lightstand adapter2x 5dbi omnidirectional antennas (for transmitter)5x 2dbi omnidirectional antennas (for receiver)1x Mini-USB to USB cable (for firmware updates)1x Custom Case with rugged foam (Pelican 1400)1:2 Kits include:1x Tomahawk2 SDI/HDMI transmitter2x Tomahawk2 SDI receivers2x PTap to 2-pin power cable (18in/45cm)1x AC power supply with 2-pin connector2x 18in BNC Cable (right-angle to right-angle)1x HDMI Cable (18in/45cm)2x 5dbi omnidirectional antennas (for transmitter)10x 2dbi omnidirectional antennas (for receivers)1x Mini-USB to USB cable (for firmware updates)1x Custom Case with rugged foam (Pelican 1400) 1:1 Deluxe Kits include:1x Tomahawk2 SDI/HDMI Transmitter1x Tomahawk2 SDI Receiver1x Tomahawk2 Mounting Bracket (for transmitter)1x Paralinx Dual Battery Bracket (for receiver)1x AC power supply with 2-pin connector2x PTap to 2-pin power cables (18in/45cm1x PTap to 2-pin power cable (6.5in/16.5cm)1x 2-pin to 2-pin Power Cable (24in/60cm)2x 18in/45cm BNC cables (right-angle to right-angle)1x 18in/45cm HDMI cable1x Mini-USB to USB cable (for firmware updates)1x Paralinx Array MIMO panel antenna5x Type-N to RP-SMA antenna cables (for use with Array)2x 5dbi omnidirectional antennas (for transmitter)5x 2dbi omnidirectional antennas (for receiver)1x Lightstand adaptor1x Custom Case with rugged foam (Pelican 1550)1:2 Deluxe Kits include:1x Tomahawk2 SDI/HDMI Transmitter2x Tomahawk2 SDI Receivers1x Tomahawk2 Mounting Bracket (for transmitter)2x Paralinx Dual Battery Brackets (for receivers)1x AC power supply with 2-pin connector3x PTap to 2-pin power cables (18in/45cm)2x PTap to 2-pin power cables (6.5in/16.5cm)1x 2-pin to 2-pin power cable (24in/60cm)3x 18in/45cm BNC cables (right-angle to right-angle)1x 18in/45cm HDMI cable1x Mini-USB to USB cable (for firmware updates)1x Paralinx Array MIMO panel antenna5x Type-N to RP-SMA antenna cables (for use with Array)2x 5dbi omnidirectional antennas (for transmitter)10x 2dbi omnidirectional antennas (for receivers)1x Lightstand adaptor1x Custom Case with rugged foam (Pelican 1550) PLEASE NOTE: Additional Power Cables for the Tomahawk2 system must be purchased separately. PTap to 2-pin, 2-pin to 2-pin, and JST-RCY to 2-pin options are available. (10-1286) - Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek
