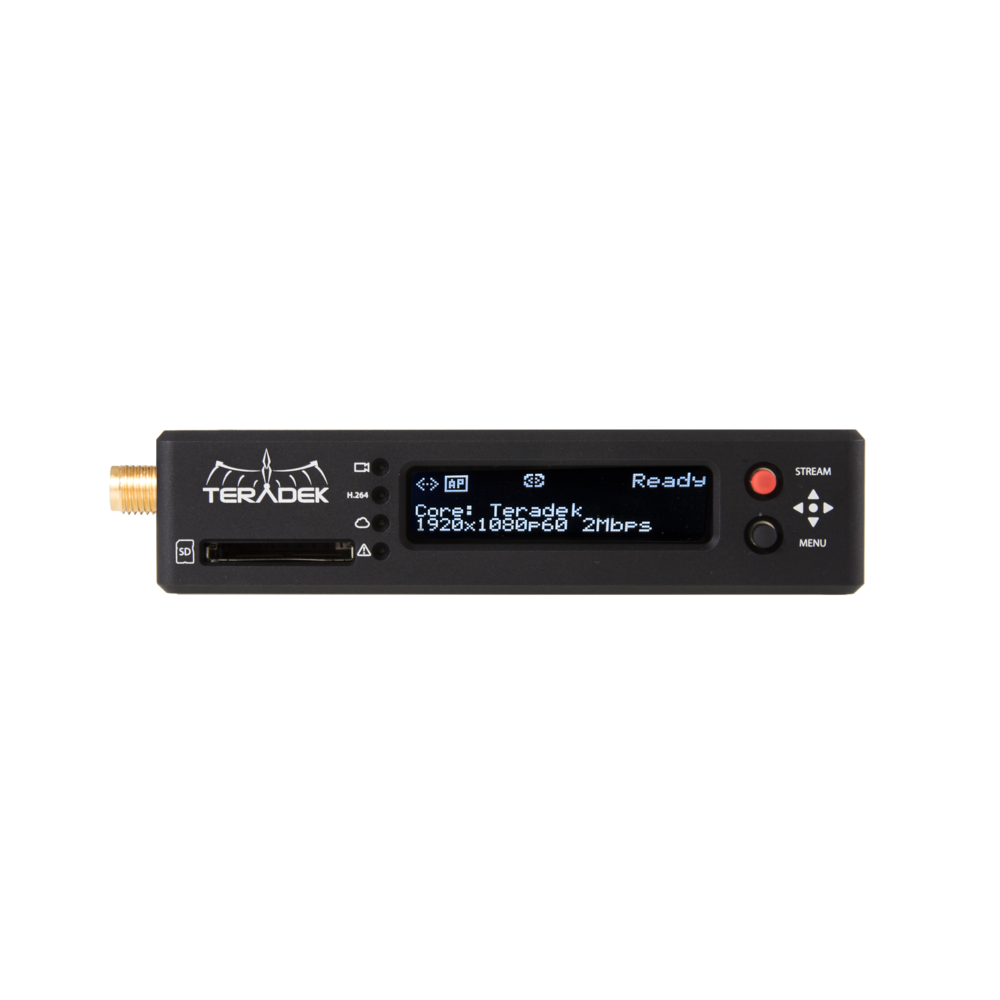

Cube 655 – H.264(AVC) Encoder SDI/HDMI GbE WiFi – Cube 655 – 10-0655

Real-Time H.264 (AVC) Encoder
Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces
HDMI and SDI Video Inputs
Camera Top Form Factor
Built-In Color Grading
On-Board SD Card Recording
Two-Pin Connector-Type Power Input

SKU: 10-0655 Categories: , Tags: , , , , , , , , , ,

Designed for Professionals
Cube is manufactured in the USA and features 3G-SDI and HDMI inputs along with a new, high-powered 802.11AC WiFi adapter. Cube’s rugged aluminum chassis and professional locking 2-Pin Connector connector ensure it’s ready for constant use in any environment.

Higher Bitrates

The Cube 600 series encodes video at bitrates up to 15 Mbps for pristine quality in any application. When bandwidth is limited, adaptive bitrate allows Cube to automatically adjust and stream at the highest quality achievable.

Improved Wireless Performance
Built-in 802.11ac dual band (2.4/5GHz) WiFi offers higher data throughput and stronger wireless connectivity at longer distances.

iPad Monitoring for All
Cube 600 supports monitoring on up to 6 devices iOS devices simultaneously so clients, crew, and director can all see the action.

Built-in Color Grading
Support for 33 point 3D LUTs and Pomfort LiveGrade integration allows your creative team to monitor graded footage on set or off. Looks can be applied to the stream itself or controlled independently within the TeraView app.

All New User Interface
Cube’s intuitive new user interface makes it easier than ever to configure your device. Pages load more quickly, configuration changes apply instantly, and all encoder statuses are updated dynamically.

Onboard Recording
Cube’s built-in SD card slot gives you the option to save high quality backup recordings for post-event editing.* *Recorded video file bitrate and resolution match encoded stream quality.

Test Pattern Generator
A configurable test pattern generator allows you to test your stream without connecting a video source and prevents interruptions if video sync is lost. (10-0655) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

Brand

Teradek

Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content. Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
Weight 2 kg
Dimensions 7 × 7 × 5 cm
In the box

1 x 2-pin Connector to 18W AC Power Adapter 1 x Ethernet Cable 1 x SDI Cable (BNC to BNC) 1 x HDMI Cable (Full Type A to Full Type A) 1 x 1-Year Warranty 2 x Wireless Antennas (2dBi 2.4/5.8 Ghz)1 x Hot Shoe Adapter
Specs

Technical Specifications: #Video – Video Inputs : 1 x SD/HD-SDI (75 Ohm BNC) 1 x HDMI Type-A receptacle – Sdi Compliance : N/A – Video Outputs : N/A – Sdi Ancillary Data Support : N/A – Color Sampling : N/A – Delay Tx To Rx : N/A #Bonding – Bonding : TeraLink #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60* 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i 480p (for HDMI input only) 576p (for HDMI input only) *Ingests 1080p50/59/60 #Video Processing – Video Compression : H.264, Baseline, Main and High Profile – Supported Video Bitrate : 250 Kbps to 15 Mbps* *15 Mbps (wired), 10 Mbps (WiFi) – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : Supports Custom Test Pattern – Video Format Conversion Support : Built in Video Scaler and Deinterlacer – Color Correction : CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) #Protocol Support – Network Protocols : TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP – Supported Video Transport Protocols : SRT RTMP RTP, RTSP, RTSP over HTTP MPEG-TS (MPEG-TS is an optional paid license) – Remote Control : Teradek Core – Software Or Platform Integration : Ustream, YouTube Live, Facebook & new Livestream #Audio Processing – Audio Compression : AAC-LC, MPEG Layer 2 – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input Analog Line or Mic in, adjustable gain #Outputs – Audio Output : Headphone output #Physical – Dimensions : 4.75", W x 3"D x 1.1", H [120.7 x 76.2 x 27.9mm] – Weight : 11.6oz [328.9g] – Construction : Milled Aluminum – Mountability : Can be mounted horizontally or vertically with 1/4", 20 mounting holes #Interfaces – Http : WebUI for Configuration and Control – Configuration Interfaces : OLED Display with joystick Navigation buttons Feature-rich WebUI for configuration and control – Switches : On/Off and Reset Switch – Recording Storage : SD Card: Full Size – Mobile App : Vuer, Live:Air – Desktop App : N/A – Usb Interface Functionality : 1x Powered USB 2.0 host port – External Control : N/A – Bluetooth : N/A #Network – Ethernet : 10/100/1000 BASE-T Gigabit – Wireless : WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo – Usb : USB 3G/4G Modem support** ** refer to this article on which modems are known to be supported: https://support.teradek.com/hc/en-us/articles/217447037-What-3G-4G-USB-Modems-are-supported- – Rf Channel Selection : Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only) Configurable to specific channels – Encryption : 802.1x, 802, 11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES – Rf Power : N/A – Range : N/A – Unicast Multicast : N/A – Noise Rejection : N/A #Power – Power Input : 2 Pin Connector Power input – Power Output : N/A – Battery : No Battery Included – Battery Runtime : N/A – Nominal Power Consumption : 8W, 7W (no WiFi) – Auxilary Power Input : 6-28V DC #Environmental – Operating Temperature : N/A – Humidity : N/A
UPC

854980006411
Teradek : Cube 655 AVC HDMI/SDI Encoder 10/100/1000 2.4/5.8 GHz / (Cube 655 AVC HDMI/SDI Encoder 10/100/1000 2.4/5.8 GHz)
