Condition:Like NewWith 90 Day WarrantyProduct photos may not accurately represent the unit sold.Product photos may not accurately represent the unit sold.

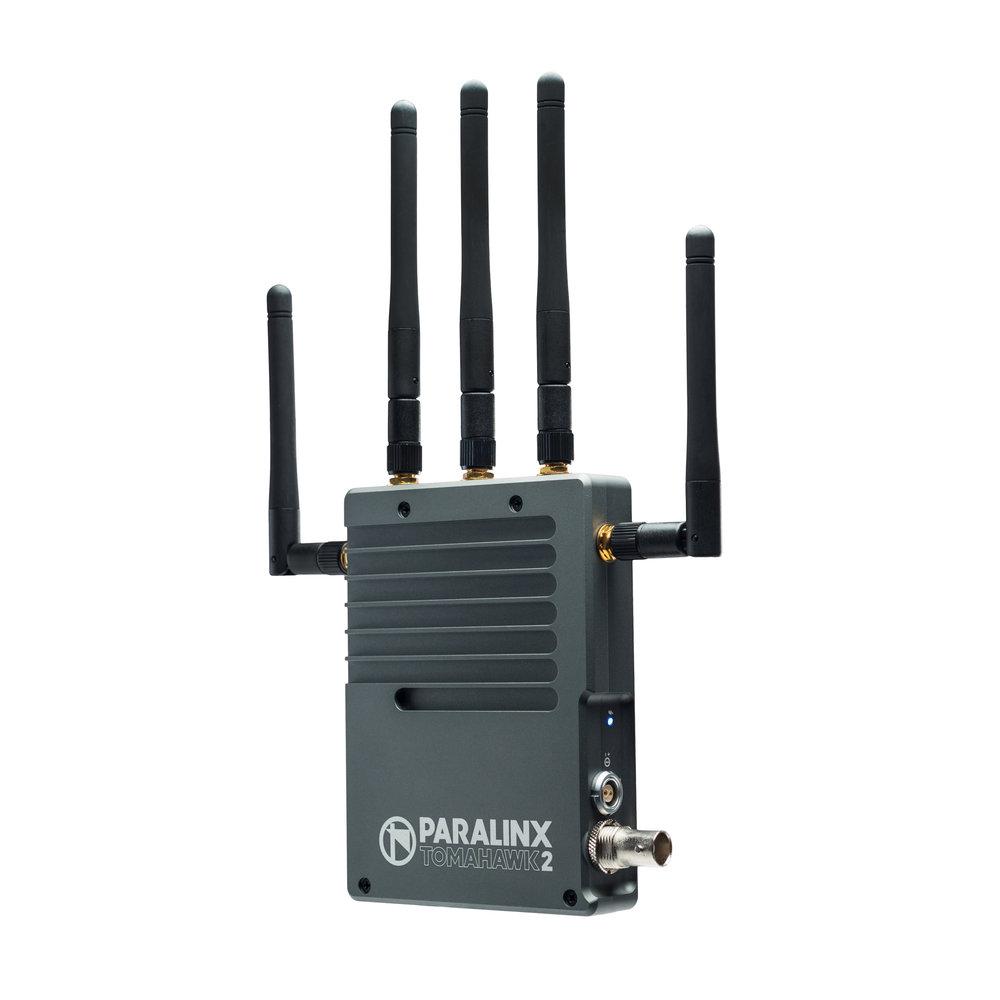

The Paralinx Tomahawk2 is a long-range HD video system offering real-time wireless HD transmission for your Television, Film, Broadcast, Industrial or UAV/UAS application.
The Tomahawk2 features several improvements from the original Tomahawk:
Dual-Input Transmitter (HD-SDI & HDMI)
Receiver is lighter and 60% smaller
Input voltage range is now 6-28V on Transmitter
Machined-aluminum Receiver enclosure improves durability
Integrated 1/4-20 & 4-40 mounting points on Tx/Rx
Compatible with Teradek Sidekick (1stGen)
Compatible with Teradek Bolt 2000, Sidekick1, or Paralinx Tomahawk (1st Gen)*
All Transmitter+Receiver sets include custom case
The Paralinx Tomahawk2 has a range of up to 2000 feet** (600m) and maintains an incredible <1ms latency glass-to-glass. Both the transmitter and receiver feature 2-Pin power connectors and the transmitter features a wide 6-28V input voltage range (receiver has 7-17V input). The Tomahawk2 system features both 3G-SDI input (with loop-out) & HDMI input on the transmitter, and a 3G-SDI output on the receiver. The Tomahawk2 transmits Full-HD video (up to 1080p/60 4:2:2) and is capable of sending video to up to 4 receivers simultaneously. The transmitter weighs approximately 7.3oz/208g (without antennas) and the receiver weighs only 8.9oz/252g (without antennas). Tomahawk2 Features: Lightweight Minimalist design for Handheld, Steadicam, Gimbal, and UAV Payload Transmitter features both 3G-SDI & HDMI inputs and SDI loop-out. Receiver features 3G-SDI output. Supports Timecode, SDI Start/Stop, and PsF Rugged machined-aluminum enclosure for both the transmitter and receiver Ultra long-range transmission - Up to 2,000 feet (600 meters) ** REAL-TIME viewing - Less than 1 millisecond latency Visually lossless full-HD video signal allow critically accurate monitoring Multicast capable (up to 4 receivers per transmitter) 128 bit AES Encryption - Secure transmission Operates on 5gHz frequency band Conforms to major technical and environmental standards including FCC, CE, MIC (TELEC) and RoHS Specifications Click here for supported frame rates *When linked to a Bolt 2000 or Paralinx Tomahawk (1st Gen) unit the following features are not supported: PsF video, Run/Stop, Timecode **Range may vary depending on environment and interference Dimensions (Tx): 4.1in x 2.6in x 0.9in (not including antennas/connectors)Dimensions (Tx): 104mm x 66mm x 22mmWeight (Tx): 7.3oz / 208g (without antennas) Dimensions (Rx): 4.6in x 3.5in x 0.9in (not including antennas/connectors)Dimensions (Rx): 117mm x 88mm x 22mmWeight (Rx): 8.9oz / 252g (without antennas)PLEASE NOTE: Additional Power Cables for the Tomahawk2 system must be purchased separately. PTap to 2-pin, 2-pin to 2-pin, and JST-RCY to 2-pin options are available. (23-1245) - Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek
