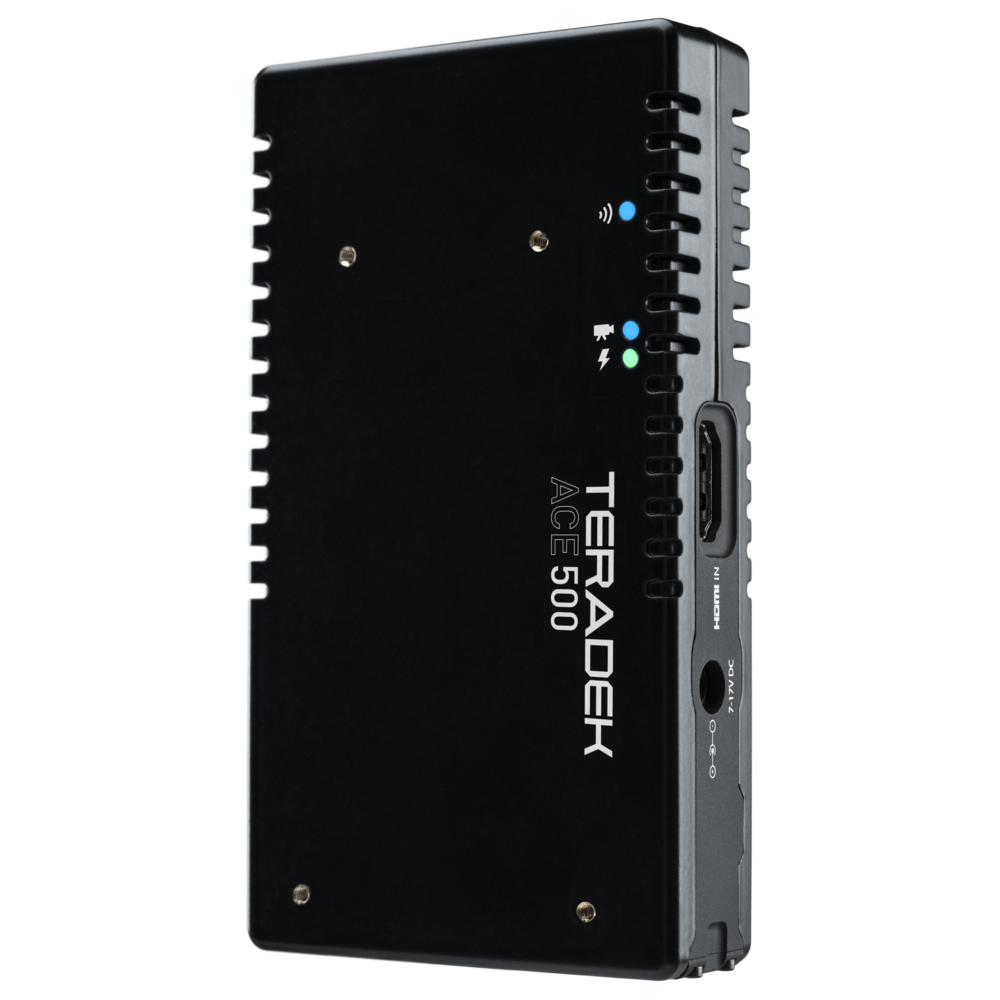

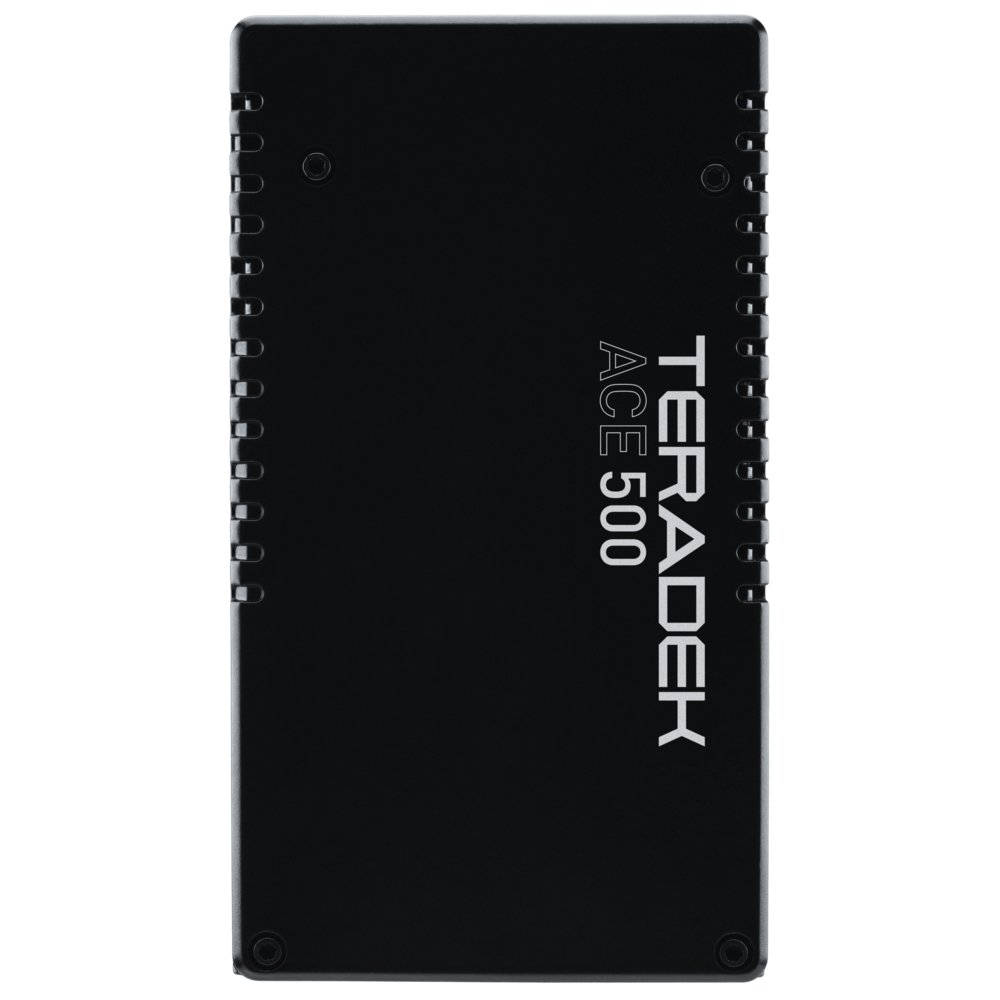

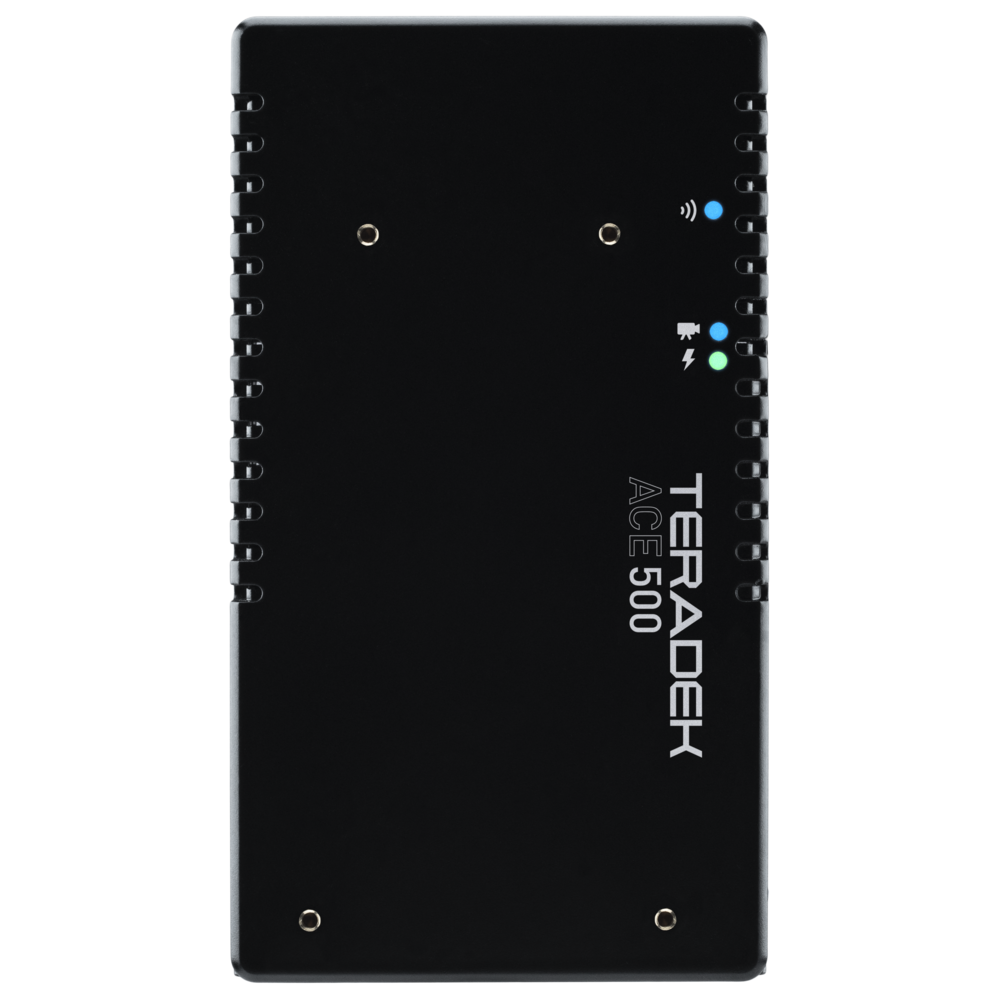

Teradek Ace 500 TX only – 10-1806

1080p60 wireless video, less than 1ms of delay.
Up to 500 ft. wireless range.

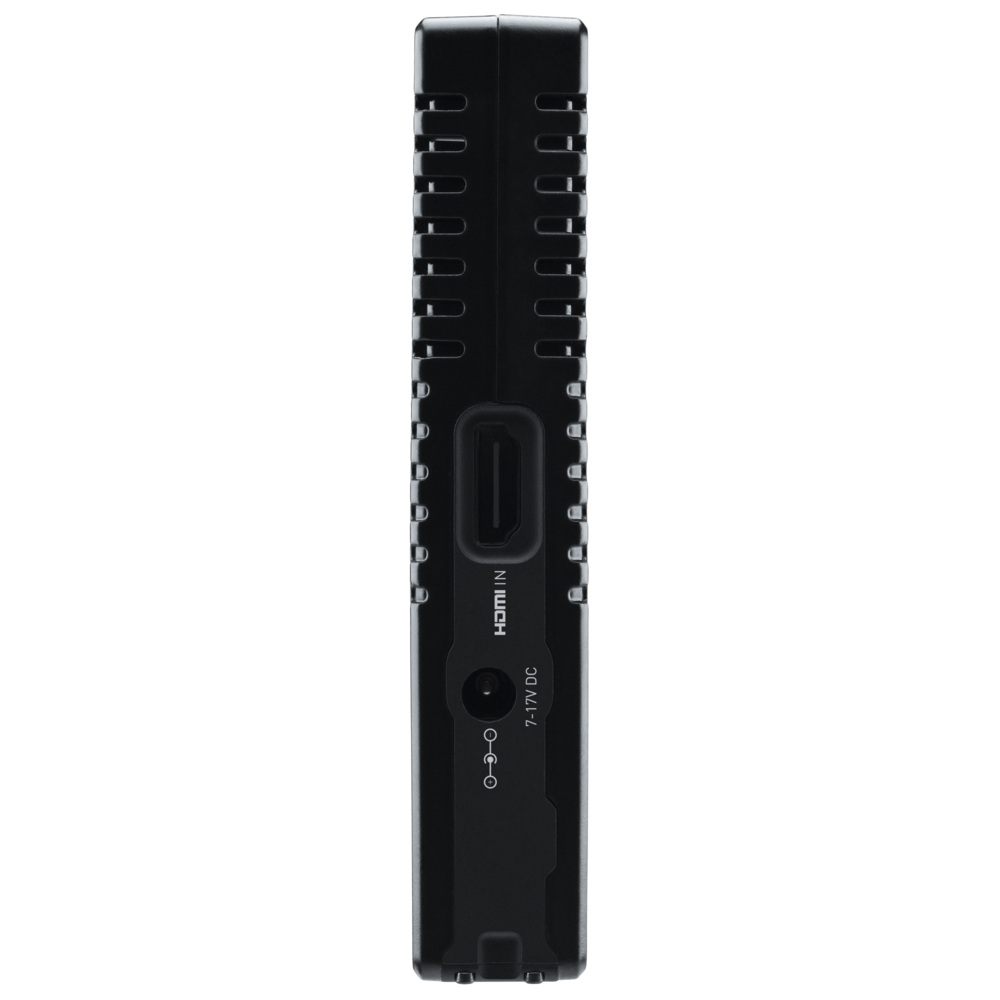

HDMI input.
Transmit to up to 4 receivers.
1x ¼-20” mounting point.
Tx weight: 126g.

SKU: 10-1806 Categories: , Tags: , , , , , ,

Ace 500 is a compact, lightweight and powerful wireless video system designed for professionals on a budget.
Zero-Delay Wireless Video
Transmit uncompressed 1080p60 video to receivers up to 500 ft. away with less than 1ms of delay.
Compatibility
Ace 500 transmitters are compatible with all current Bolt 500, LT & XT receivers and integrated SmallHD Bolt monitors.
Reliability
Built with the same reliability and performance as the Bolt, Ace 500 ensures you have a continuous video feed when you need it most.
Receivers
Send video from the transmitter to up to 4 receivers within 500 ft.

Mounting Options

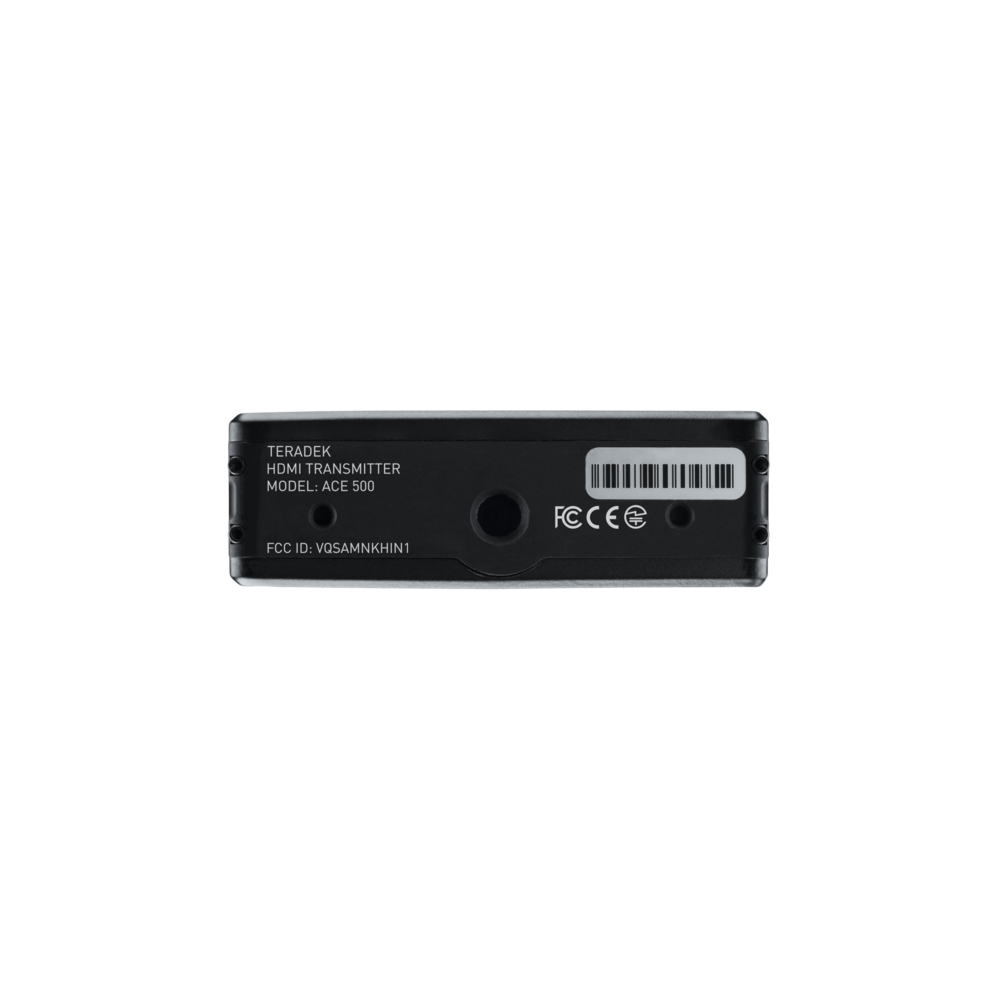

Ace transmitter includes 1x 1/4-20″ and 2x 4-40″ mounting points.
Powering Options
Keep your Ace powered with optional battery plates* attached directly to your transmitter.
*Available in Sony L-Series, BP-U, BP-9 and Canon LP-E6. (10-1806) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

Brand

Teradek

Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content. Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
Weight 4.32 kg
In the box

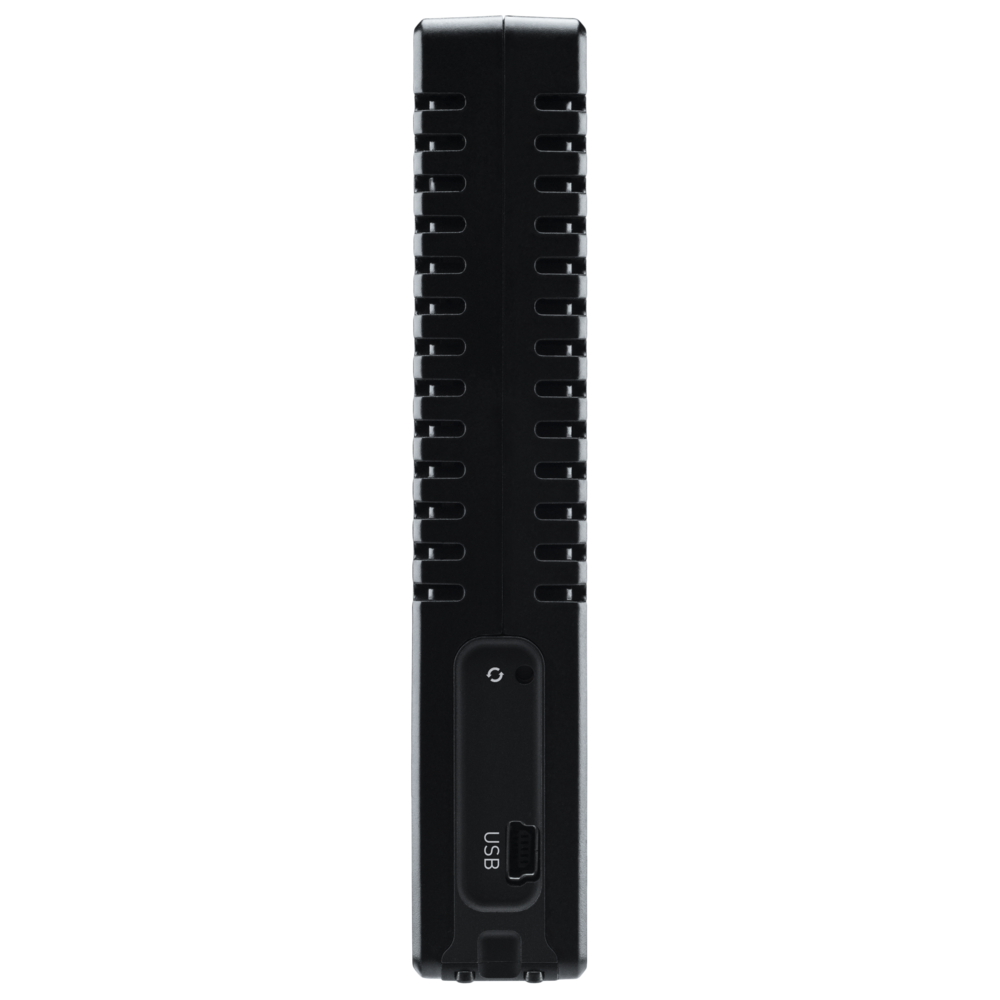

1 x Ace 500 TX [10-1806] 1 x Mini-USB (5pin) to USB – 18in/45cm Cable [11-1267] 1 x P-Tap to R/A Barrel, 18 in Cable [11-1252] 1 x Ultra Thin HDMI Male Type A to HDMI Male Type A 18 Inch [11-1235] 1 x Quickstart Guide
Specs

Technical Specifications: #Video – Video Inputs : 1 x HDMI (Type A receptacle) – Sdi Compliance : N/A – Video Outputs : none – Sdi Ancillary Data Support : N/A – Color Sampling : HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : N/A – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : Visually Lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : N/A – Color Correction : N/A #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 2.6 x 4.7 x 0.6", (6.7 x 11.9 x 1.5 cm) – Weight : 4.4 oz (126 g) – Construction : Aluminum and ABS plastic – Mountability : 1/4", -20 mounting threads 2x 4-40 mounting holes #Interfaces – Http : N/A – Configuration Interfaces : N/A – Switches : Reset/Pairing Button – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : Internal Antennas – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Number Of Channels : N/A – Channel Bandwidth : 12x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : up to 17 dBm – Rf Sensitivity : N/A – Range : Up to 500 ft line of sight – Unicast Multicast : Unicast / Multicast – Noise Rejection : Coexists with WiFi and 5GHz cordless phones #Power – Power Input : Barrel Connector 7-17 VDC – Power Output : None – Battery : N/A – Battery Runtime : N/A – Nominal Power Consumption : 4.8 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A
UPC

818264024751
