The Bolt 500 LT is the essential, no-frills high performance wireless video system for filmmakers on a budget. It offers the same zero-delay wireless video of the Bolt XT line at an affordable price.
Zero-Delay Video
Transmit pristine 1080p60 wireless video instantly to receivers up to 500 ft. away.
Compatibility
Bolt 500 LT transmitters are compatible with Bolt 500, LT & XT receivers of the same range. Also compatible with Sidekick II, Sidekick LT & XT, 703 Bolt, and Focus Bolt.
Inputs/Outputs

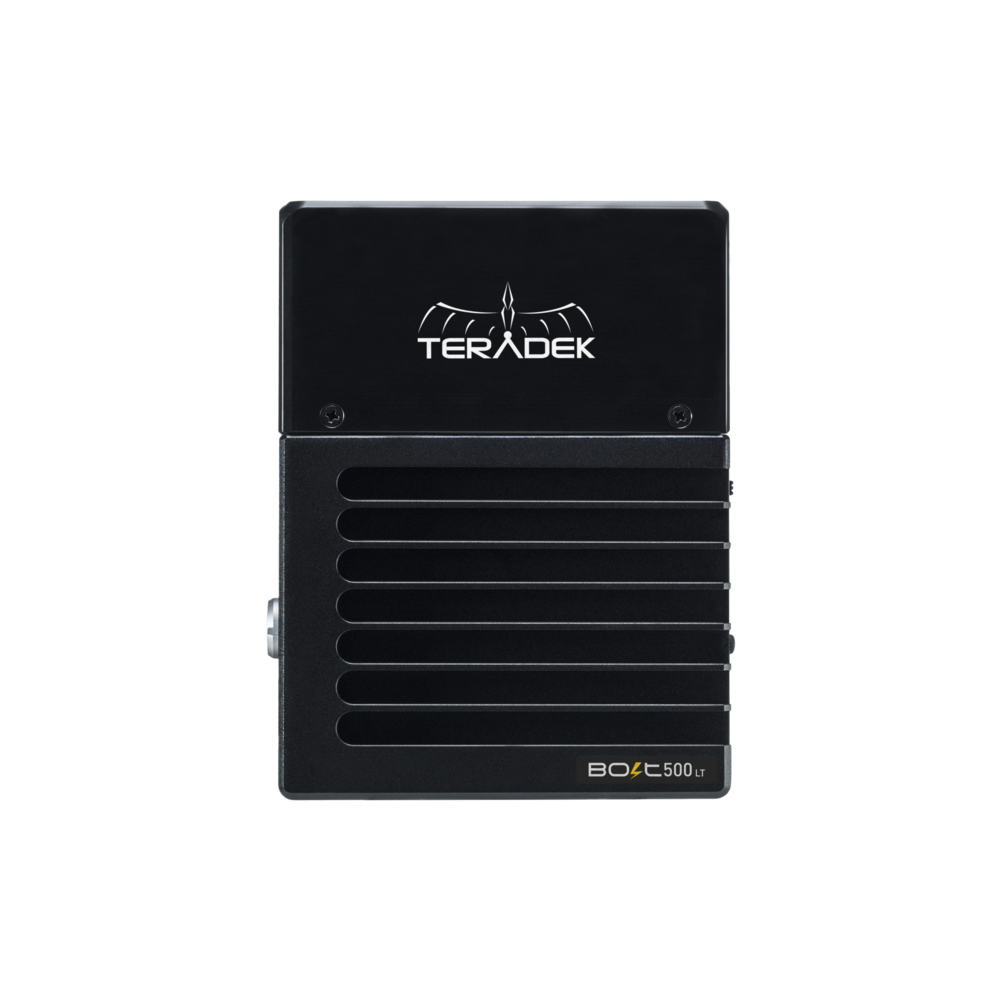

Transmitter – 3G-SDI or HDMI input with matching loopout.Receiver – Matching output with transmitter.
Optional Battery Plate
Complete your wireless video setup with optional built-in battery plates.
Transmitter – Dual Sony L-Series / Canon LP-E6.Receiver – Gold/V-mount or dual Sony L-Series / Canon LP-E6. (10-1905) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
Bolt 500 LT HDMI Wireless TX/RX – HDMI – 10-1905
Compatible with 3rd generation Bolt 500, Bolt 500 XT, Sidekick II, and 703 Bolt
HDMI loop out on TX

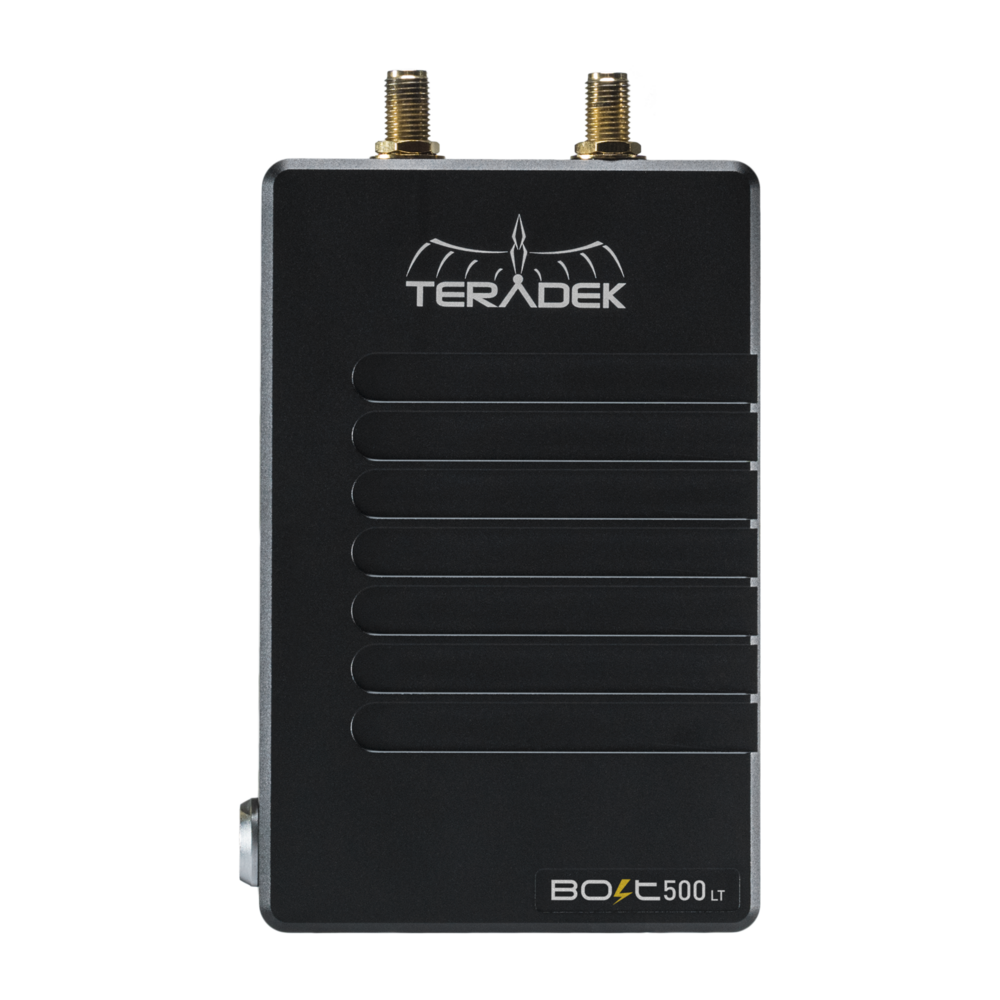

External antennas on Bolt 500 TX
Smaller and lighter chassis design with robust mounting points (3/8” and ¼”-20)
Extremely affordable and offers the same wireless performance as the XT
Brand
Teradek
| Weight | 3 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |

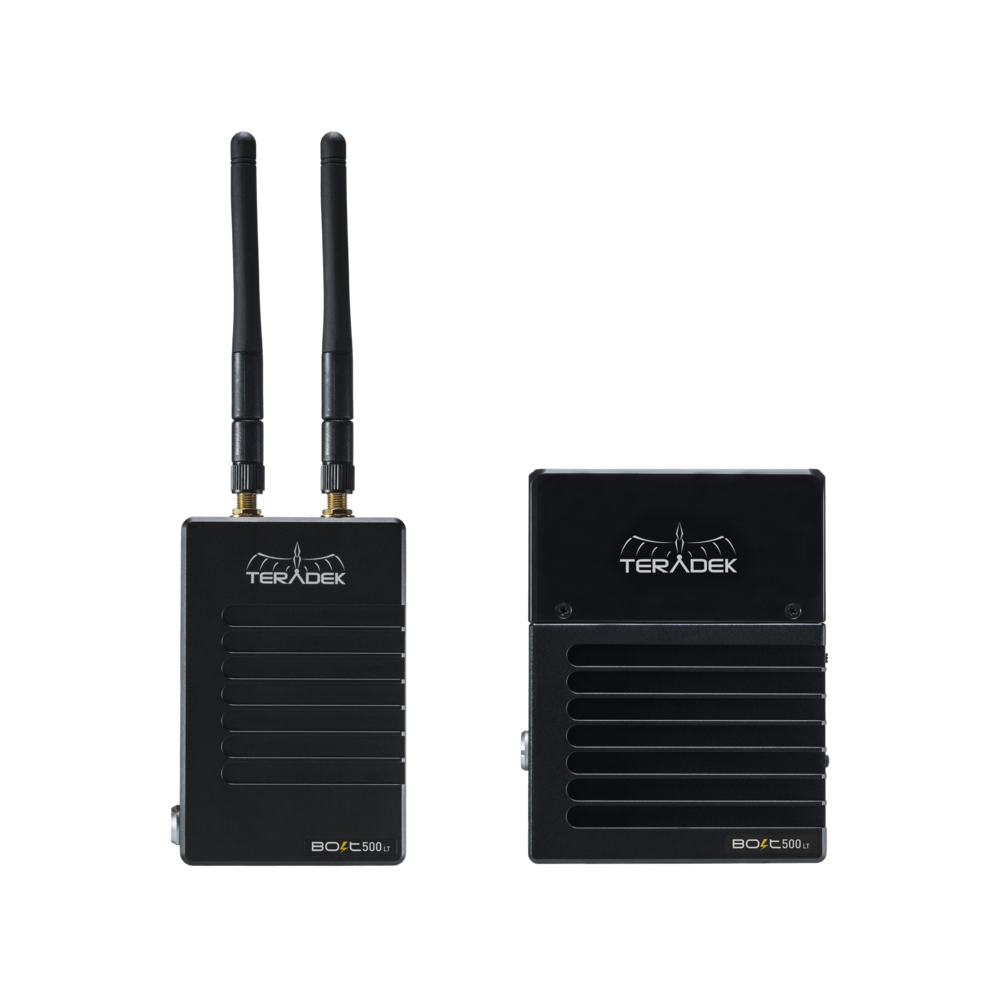

| In the box | Comes with a 1 Bolt Transmitter AND 1 Bolt Receiver. A complete set to transmit 1 video source to 1 video receiver. You can purchase up to 3 additional receivers to work with this set. Transmitter 1 x 2-pin Connector to PowerTap 18 inch Cable 1 x Hot Shoe Adapter (1/4"-20 inch) 2 x Antenna 2dBi WiFi 2.4/5.8 GHz 1 x USB 2.0 Cable (A-Male to Mini-B) 1 x HDMI 18in Cable (Type A to Type A) |
| Specs | Technical Specifications: Bolt 1906 Bolt LT 500 HDMI Wireless TX ———— #Video – Video Inputs : 1 x HDMI (Type A receptacle) – Sdi Compliance : N/A – Video Outputs : 1 x HDMI Loop-out (Type A receptacle) – Sdi Ancillary Data Support : supports metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087 – Color Sampling : HDMI: RGB 4:4:4, 8-bit – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : visually lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : None – Color Correction : CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Compression : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 0.95", x 2.6" x 4.47", (24mm x 66mm x 101.5mm) – Weight : 8oz (226g) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : Multiple mounting options with M3 and 1/4", holes 3/8" ARRI style accessory mount #Interfaces – Http : None – Configuration Interfaces : None – Switches : On/Off and Reset Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager Application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : 17dBm EIRP – Range : Up to 500ft line of sight – Unicast Multicast : Unicast / Multicast – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones #Power – Power Input : 2-Pin Connector 7-17 VDC – Power Output : N/A – Battery : None – Battery Runtime : N/A – Nominal Power Consumption : 7.3 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A Bolt 1907 Bolt LT 500 HDMI Wireless RX ———— #Video – Video Inputs : N/A – Sdi Compliance : N/A – Video Outputs : 1 x HDMI Type-A receptacle – Sdi Ancillary Data Support : supports metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087 – Color Sampling : HDMI: RGB 4:4:4, 8-bit – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : visually lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : Yes – Video Format Conversion Support : None – Color Correction : CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Compression : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 1.0", x3.4"x4.5", (25.0×85.5×114.0mm) – Weight : 10.1oz (288g) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB Plastic Cap – Mountability : Multiple mounting options with M3 and 1/4", holes #Interfaces – Http : None – Configuration Interfaces : No OLED Screen There is an OSD that appears on the Video Output which can be controlled with the Menu Joystick – Switches : On/Off and Reset Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager Application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : 15dBm EIRP – Range : Up to 500ft line of sight – Unicast Multicast : Unicast / Multicast – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones #Power – Power Input : 2-Pin Connector 7-17 VDC – Power Output : N/A – Battery : None – Battery Runtime : N/A – Nominal Power Consumption : 9 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A |
| UPC | 818264023044 |
