Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.
Real-Time 4K Wireless Video
Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 ft. of range.
True HDR Color
Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.
Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.
Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.
Inputs/Outputs
1x 12G-SDI, 1x HDMI 2.0,1x 12G-SDI loopout
Battery Plates
Optional Gold or V-Mount battery plate with pass-through power available.
Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.
Bolt App for iOS
Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand. (10-2101) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

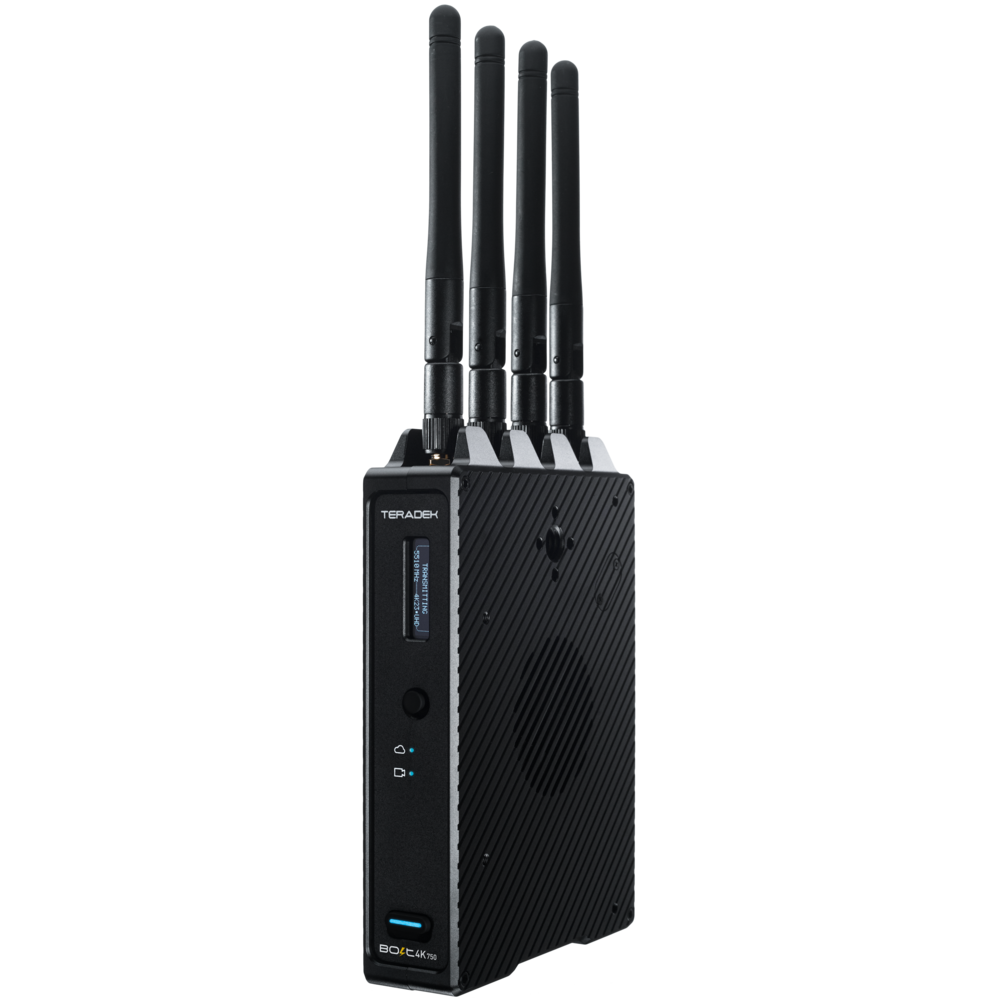

Bolt 4K 750 TX – Bolt 4K 750 12G-SDI/HDMI Wireless TX / No Mount – 10-2101
Includes: 1 TX
Video: Up to 4K60FPS
Range: 750 ft.
Inputs: 12G-SDI, HDMI 2.0
Outputs: 12G-SDI loopout
Multicast: Up to 6 RXs
Compatibility: Bolt 4K 750, Bolt 4K 1500
Brand
Teradek
| Weight | 2 kg |
|---|---|
| In the box | 1 x Bolt 750 12G-SDI/HDMI Wireless TX 1 x 2pin Conn. to PowerTap – 18in Cable 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable 1 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable 1 x SDI 12G BNC to BNC Cable Length: 18in / 46cm 1 x Large Universal Box 1 x Foam Bolt 4K TX 1 x Small Insert for Large Universal Box Bolt 4K 1 x Sticker for Universal Box – Bolt 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable 4 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna) 1 x Teradek Standard Terms and Conditions 1 x Insert – Product Register 1 x Quickstart Guide – Bolt 4K 750/1500 1 x Insert – Bolt 4K A/C Adapter Requirements |
| Specs | Technical Specifications: #Video – Video Inputs : 1 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4) – Sdi Compliance : N/A – Video Outputs : 1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ω – Sdi Ancillary Data Support : Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. – Color Sampling : SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : Yes, HDMI to SDI – Delay Tx To Rx : <0.001sec #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : Visually Lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : Connect an HD source to the Tx and get a 4K signal out of Rx Connect a 4K source to the Tx, get HD resolution out of Rx You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx Input/output configurations are controlled directly on units or via Bolt 4K app – Color Correction : None #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded SDI/HDMI Audio Input (2 Channel) #Outputs – Audio Output : N/A #Physical – Dimensions : 132 x 91 x 27 mm – Weight : 358g (12.6 Oz) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : Multiple mounting options with 1/4", x20 and M3 holes #Interfaces – Http : N/A – Configuration Interfaces : OSD with Menu, Joystick Navigation – Switches : On/Off Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : N/A – Usb Interface Functionality : Upgrade via Micro-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : 4 External 2dBi RP-SMA antennas (included) – Wireless : Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz – Number Of Channels : N/A – Channel Bandwidth : 13x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto, Manual Manual available for non-DFS Channels – Encryption : AES-256, RSA-1024 key exchange – Rf Power : 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power) – Rf Sensitivity : N/A – Range : Up to 750 ft, line of sight – Unicast Multicast : Can connect one Transmitter to up to 6 Receivers – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location #Power – Power Input : 2-Pin Circular locking Connector 6-28 VDC – Power Output : N/A – Battery : None, optional Gold or V mount battery plate – Battery Runtime : N/A – Nominal Power Consumption : 20 Watts – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0-40℃ – Humidity : N/A |
| UPC | 818264025499 |
