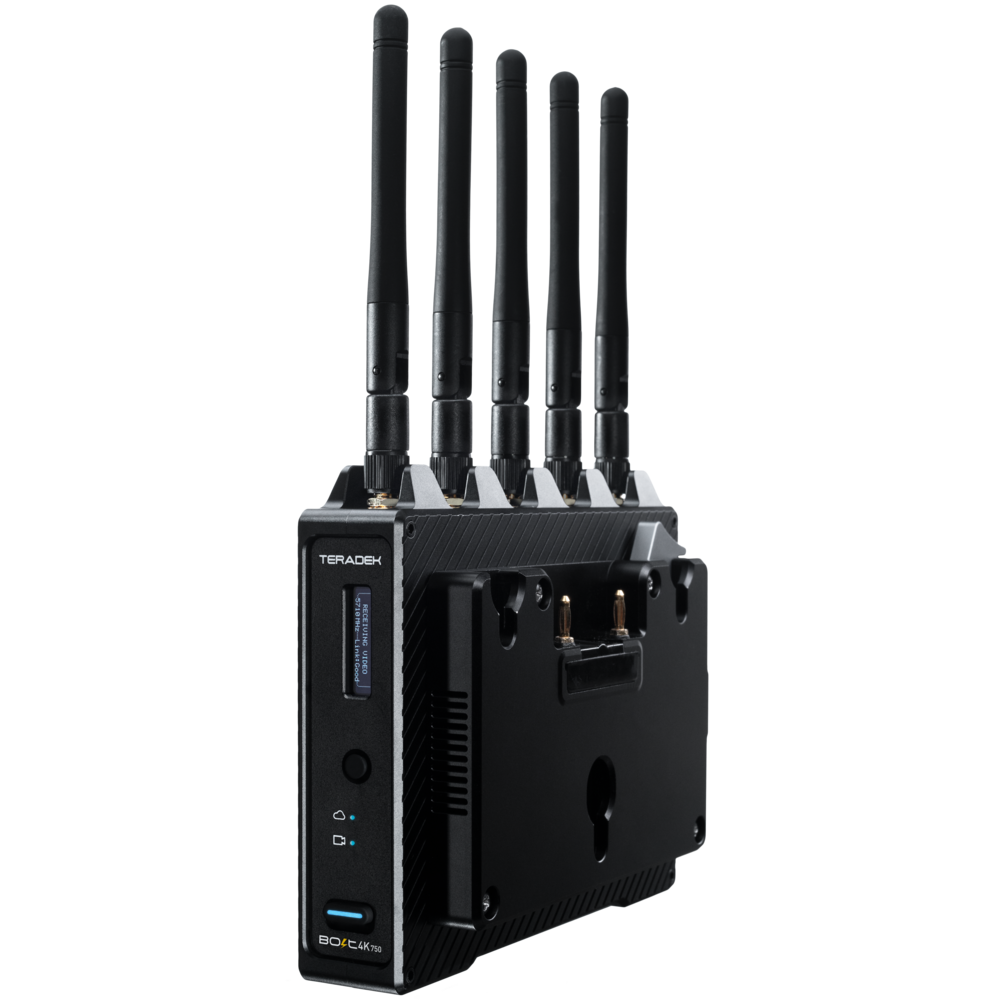

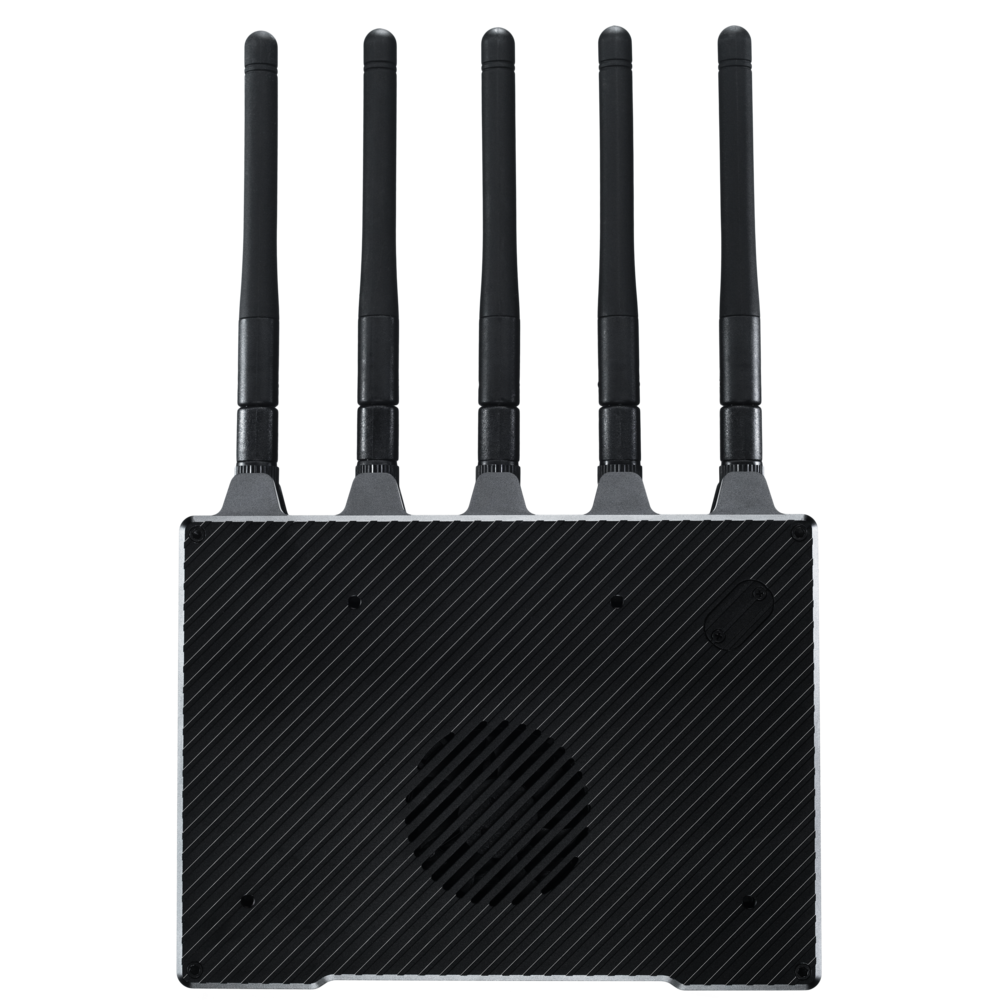

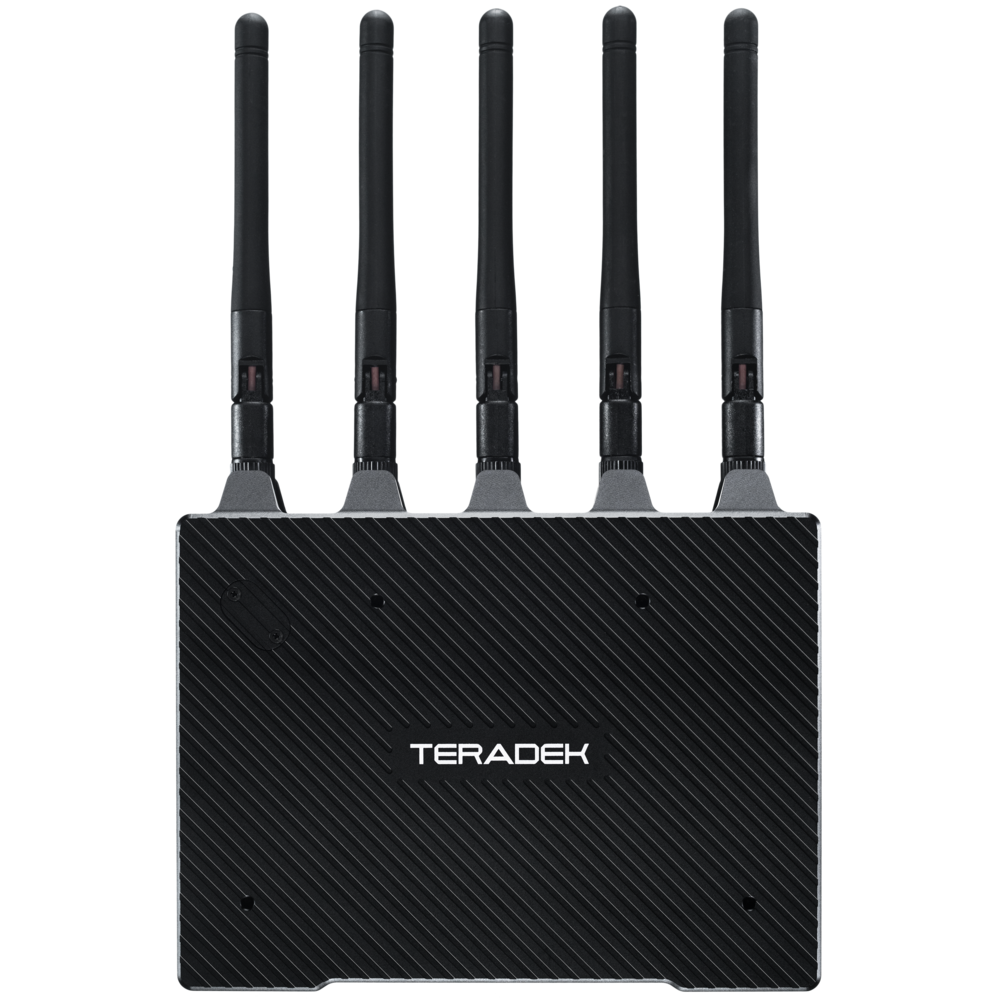

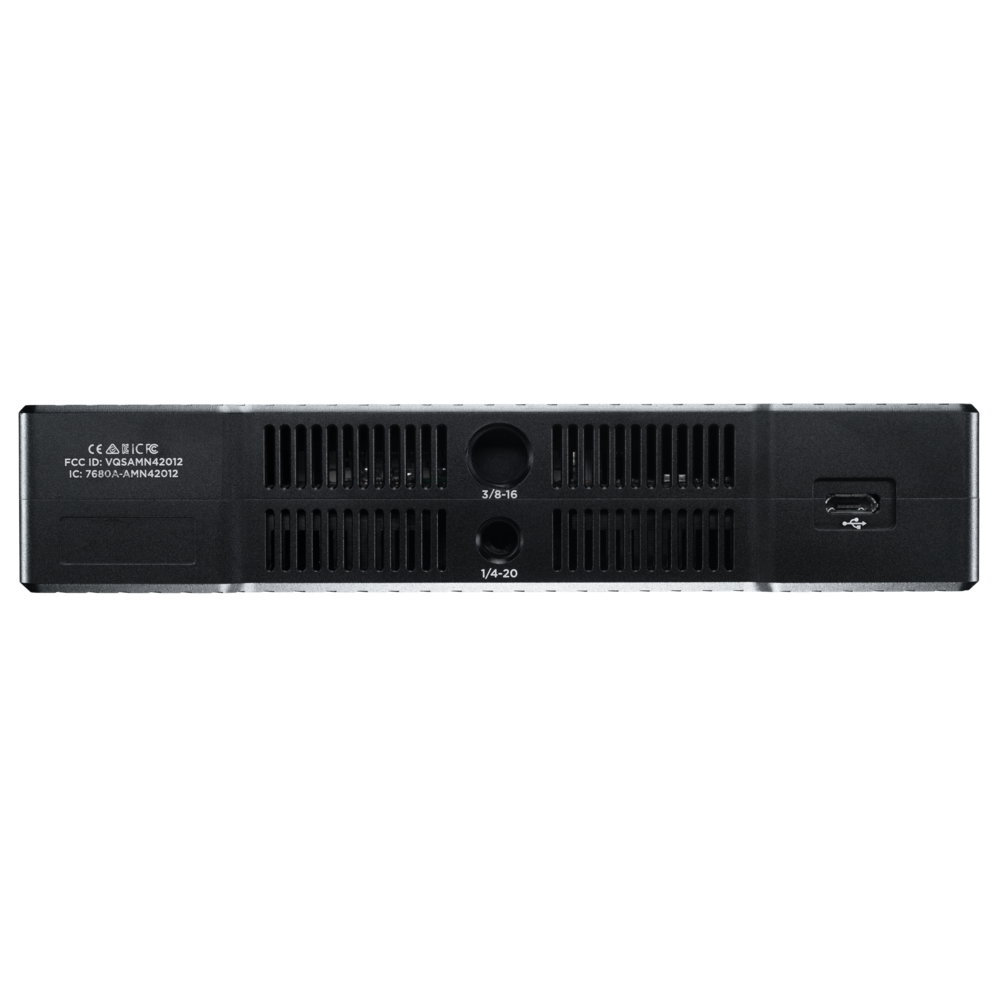

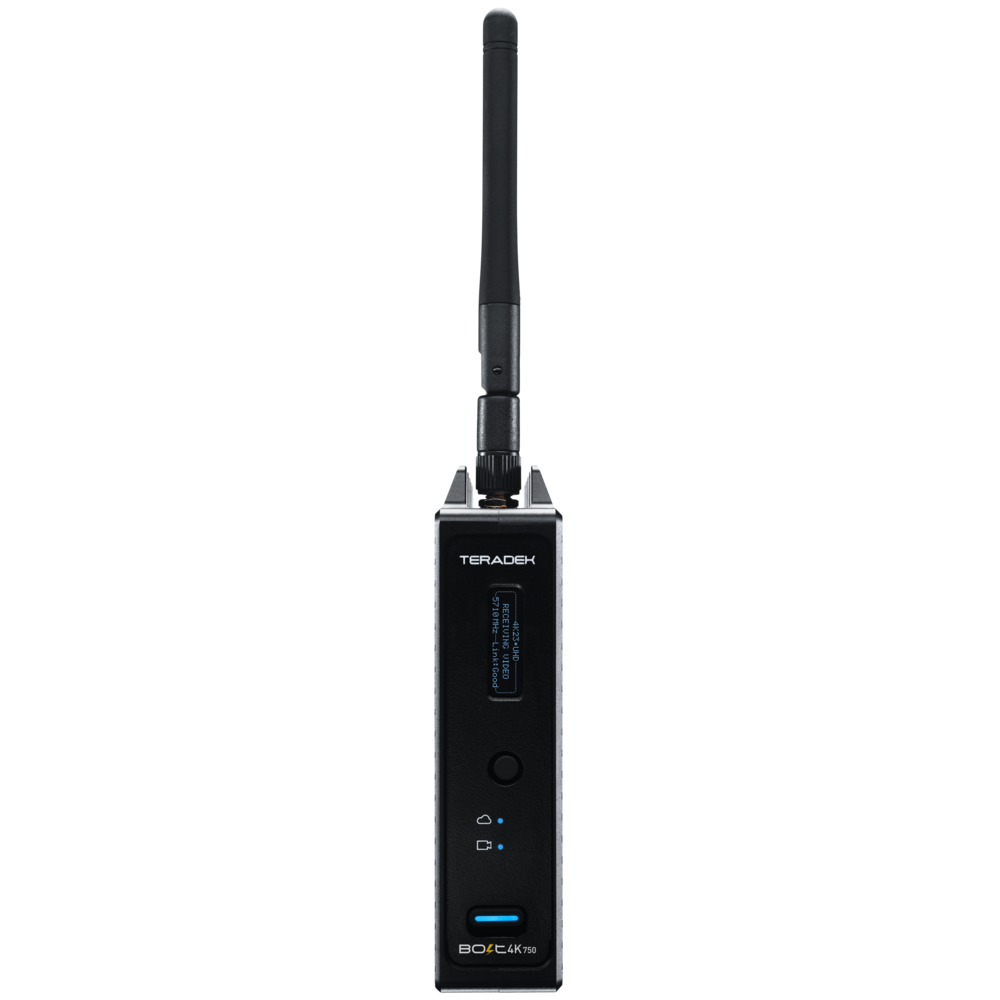

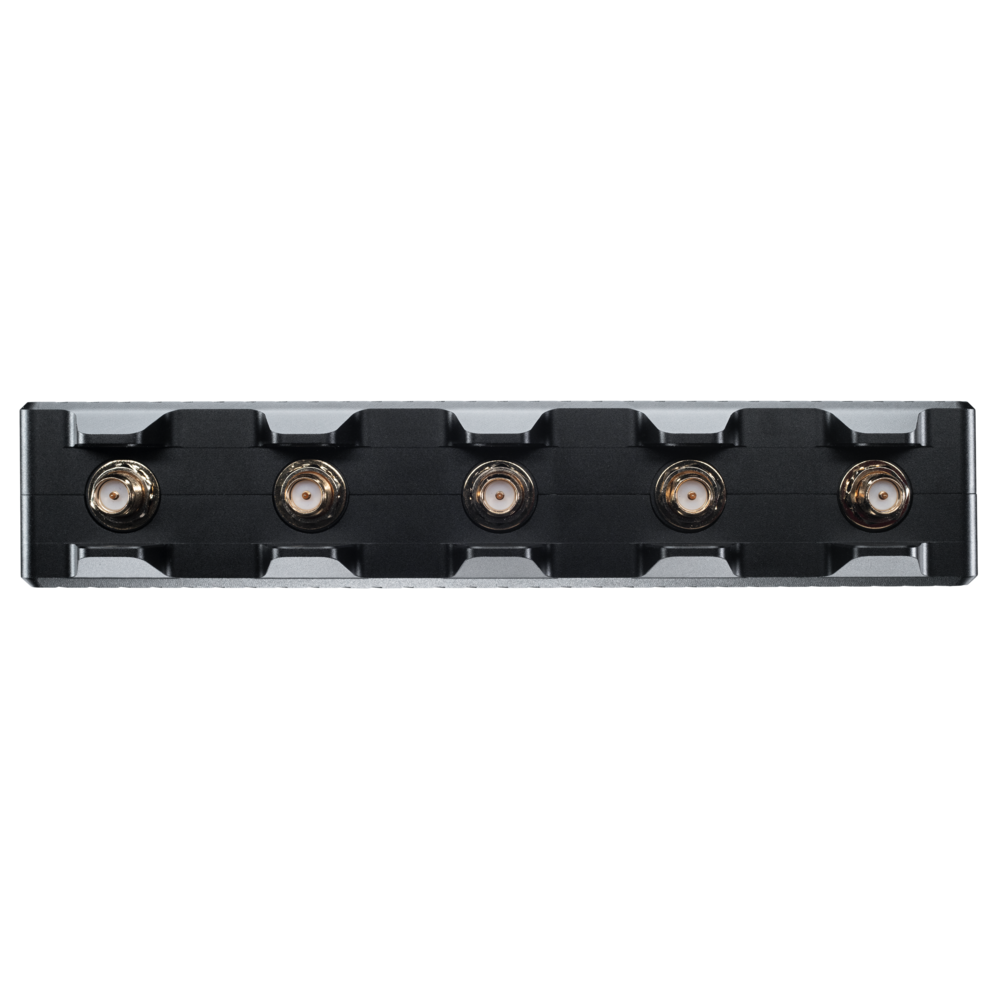

Bolt 4K 750 RX – Bolt 4K 750 12G-SDI/HDMI Wireless RX Only / Gold-Mount – 10-2102-G

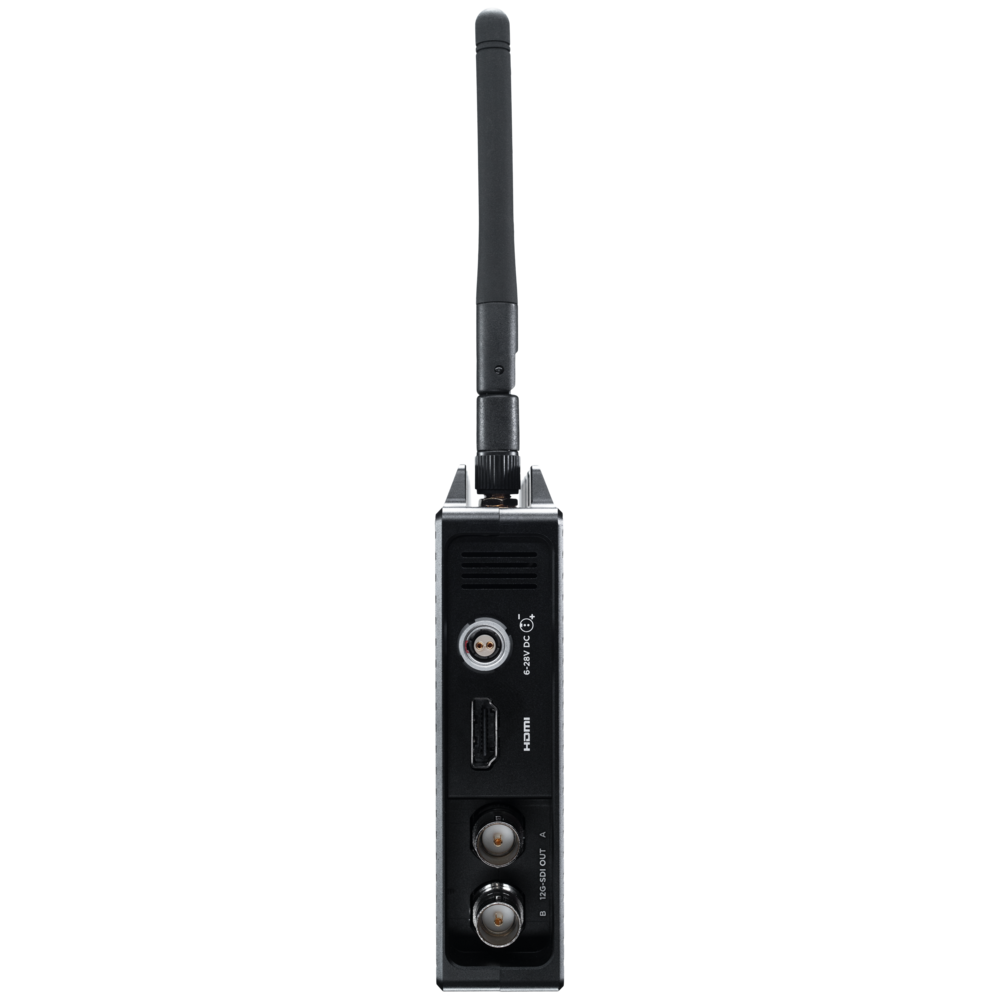

Technical Specifications: #Video – Video Inputs : N/A – Sdi Compliance : N/A – Video Outputs : 2 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4) – Sdi Ancillary Data Support : Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. – Color Sampling : SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : Yes, HDMI to SDI – Delay Tx To Rx : <0.001sec #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : Visually Lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : Connect an HD source to the Tx and get a 4K signal out of Rx Connect a 4K source to the Tx, get HD resolution out of Rx You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx Input/output configurations are controlled directly on units or via Bolt 4K app – Color Correction : 17x17x17 3D LUT (supports 10-bit color) #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : N/A #Outputs – Audio Output : Embedded SDI/HDMI Audio Output (2 Channel) #Physical – Dimensions : 112 x 139 x 27 mm – Weight : 432g (15.2 Oz) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : integrated Gold-Mount Male and Female (with passthrough power) Multiple mounting options with M3 and 3/8", holes #Interfaces – Http : N/A – Configuration Interfaces : OSD with Menu, Joystick Navigation – Switches : On/Off Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : N/A – Usb Interface Functionality : Upgrade via Micro-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : 6 External 2 dBi antennas (included) or optional Array Panel Antenna – Wireless : Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz – Number Of Channels : N/A – Channel Bandwidth : 13x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto, Manual Manual available for non-DFS Channels – Encryption : AES-256, RSA-1024 key exchange – Rf Power : 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power) – Rf Sensitivity : N/A – Range : Up to 750 ft, line of sight – Unicast Multicast : Can connect one Transmitter to up to 6 Receivers – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location #Power – Power Input : 2-Pin Circular locking Connector 6-28 VDC – Power Output : N/A – Battery : None, optional Gold or V mount battery plate – Battery Runtime : N/A – Nominal Power Consumption : 18 Watts – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0-40℃ – Humidity : N/A
