Bolt 4K 1500 Deluxe Kit – V-Mount – 10-2110-V

Includes: 1 TX, 1 RX & 1 Antenna Array in a convenient Protective SKB Case
Video: Up to 4K60FPS
Range: 1500 ft.
Inputs: 12G-SDI, HDMI 2.0
Outputs: 12G-SDI, HDMI 2.0
Multicast: Up to 6 RXs
Compatibility: Bolt 4K 750, Bolt 4K 1500

SKU: 10-2110-V Category: Tags: , , , , , ,

Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.
Real-Time 4K Wireless Video
Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 1500 ft. of range.
True HDR Color
Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.
Rock-Solid Reliability
Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.
Universal Compatibility
Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Battery Plates
Optional Gold or V-mount battery plate with pass-through power available on both TX & RX.
Inputs/Outputs

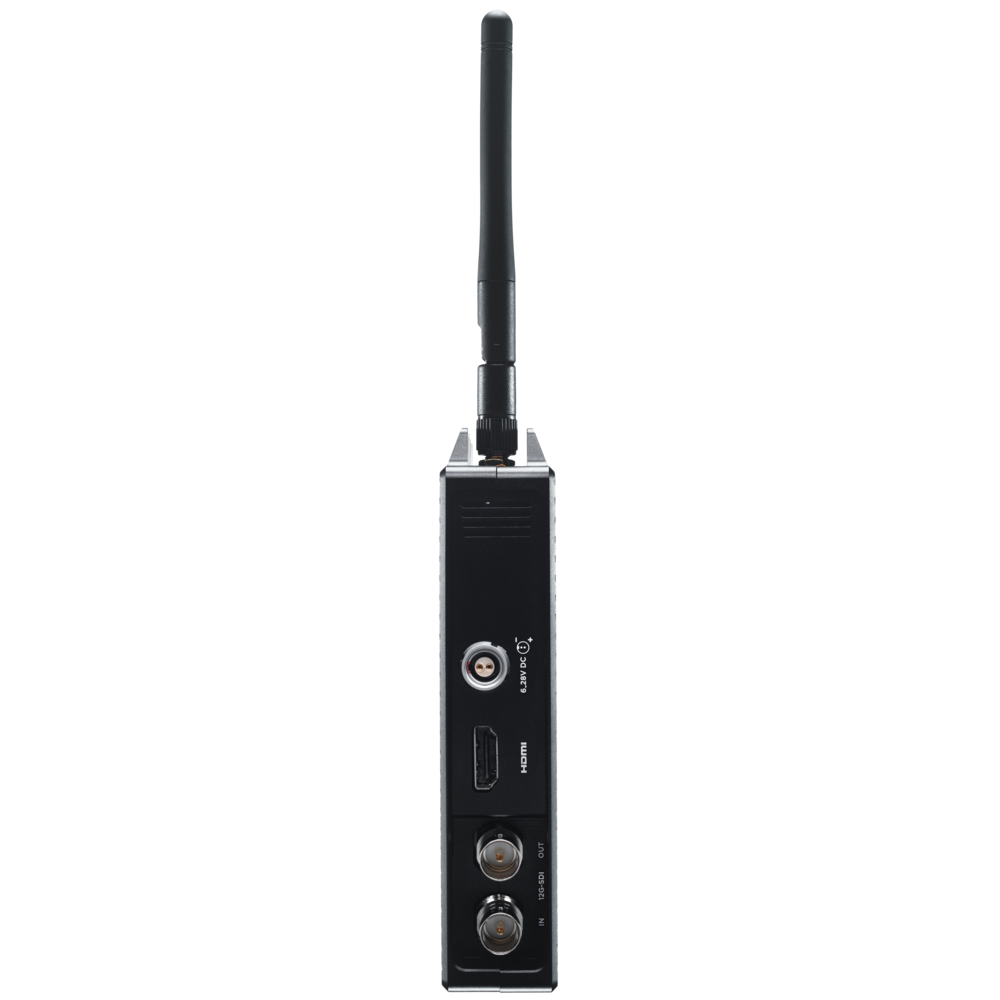

Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.Receiver: 2x 12G-SDI, 1x HDMI 2.0.
Camera Metadata
Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.
Bolt App for iOS
Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand. (10-2110-V) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

Brand

Teradek

Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content. Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
Weight 27 kg
In the box

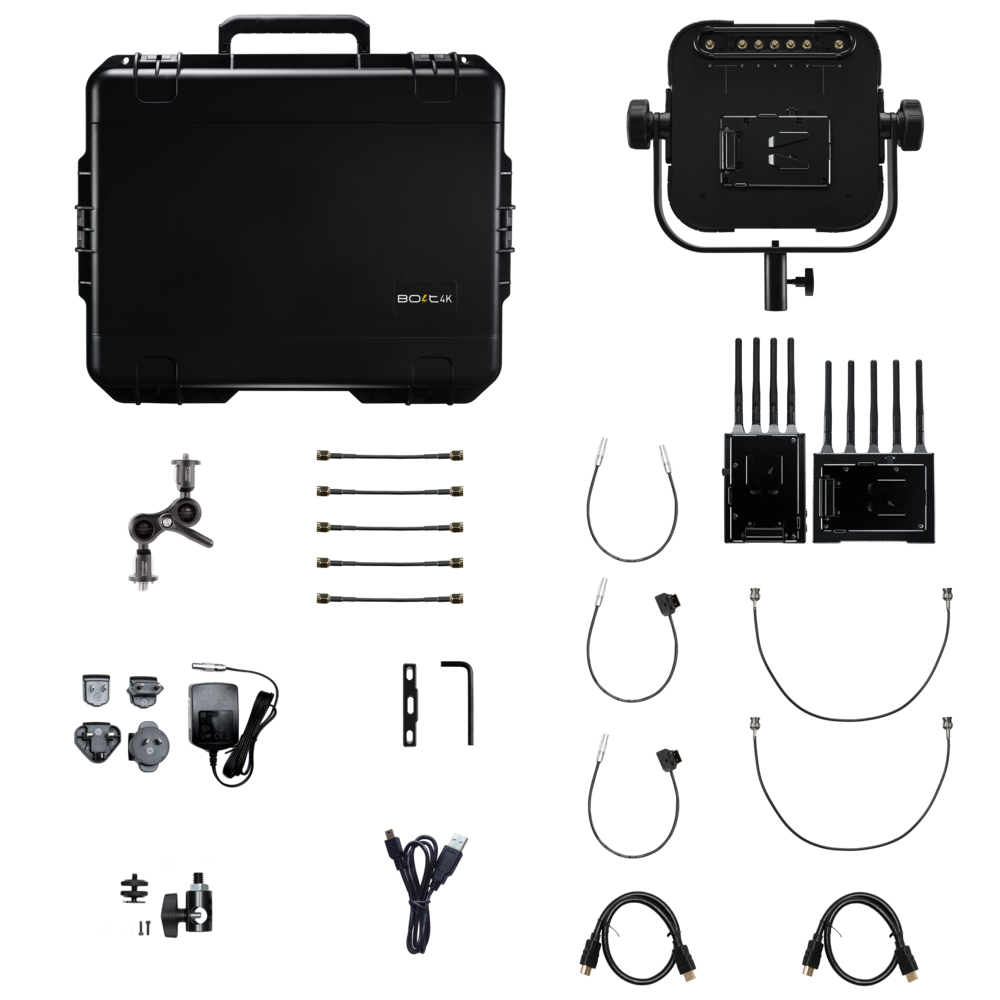

1 x Bolt 1500 12G-SDI/HDMI Wireless TX V Mount 1 x Bolt 1500 12G-SDI/HDMI Wireless RX V Mount 1 x Antenna Array 4 x Bolt 4K Wire Cover Plate (Machined Anodized) 1 x Bolt 4K TX Mounting Bracket 1 x Lightstand Adapter 3/8in 1 x Hot Shoe Adaptor 4 x Screw FlatHead Phillips Black Oxide 18-8 S S 0-80 x 1/8in 2 x Screw Socket Cap A S, M3 x 16mm 1 x Hex L key 2.5mm size 3-5/8" length 2 x (Bit 118) 2pin Conn. to PowerTap – 18in Cable 1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in Cable 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable 5 x RP-SMA Male to RP-SMA Male 4in/10cm Cable 2 x SDI 12G BNC to BNC Cable Length: 18in / 46cm 1 x Teradek Case XL – Bolt 4K TX/4RX and Antenna Array 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable 9 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna) 1 x Teradek Standard Terms and Conditions 1 x Insert – Product Register 1 x Quickstart Guide – Bolt 4K 750/1500 1 x Insert – Bolt 4K A/C Adapter Requirements 1 x Quickstart Guide – Bolt 4K Antenna Array 1 x Wooden Camera – Ultra Arm Monitor Mount (1/4-20 to 3/8-16, 5in)
Specs

Technical Specifications: Bolt 4K 1500 TX V Mount ———— #Video – Video Inputs : 1 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4) – Sdi Compliance : N/A – Video Outputs : 1 x Loopout 12G-SDI SMPTE 2082-1 standard / 75 Ω – Sdi Ancillary Data Support : Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. – Color Sampling : SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : Yes, HDMI to SDI – Delay Tx To Rx : <0.001sec #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : Visually Lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : Connect an HD source to the Tx and get a 4K signal out of Rx Connect a 4K source to the Tx, get HD resolution out of Rx You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx Input/output configurations are controlled directly on units or via Bolt 4K app – Color Correction : None #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded SDI/HDMI Audio Input (2 Channel) #Outputs – Audio Output : N/A #Physical – Dimensions : 132 x 91 x 27 mm – Weight : Bolt 4K Tx without antennas (no battery plates) = 360g Bolt 4K Tx with 4x antennas (no battery plates) = 408g Bolt 4K Rx without antennas (no battery plates) = 440g Bolt 4K Rx with 5x antennas (no battery plates) = 496g Gold-Mount battery plate set (male+female) = +172g V-Mount battery plate set (male+female) = +220 g – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : integrated V-Mount Male and Female (with passthrough power) Multiple mounting options with M3 and 3/8", holes #Interfaces – Http : N/A – Configuration Interfaces : OSD with Menu, Joystick Navigation – Switches : On/Off Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : N/A – Usb Interface Functionality : Upgrade via Micro-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : 4 External 2dBi RP-SMA antennas (included) – Wireless : Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz – Number Of Channels : N/A – Channel Bandwidth : 13x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto, Manual Manual available for non-DFS Channels – Encryption : AES-256, RSA-1024 key exchange – Rf Power : 19 dbm EIRP (4 external 2dBi antennas) (<80mW transmit power) – Rf Sensitivity : N/A – Range : Up to 1500 ft, line of sight – Unicast Multicast : Can connect one Transmitter to up to 6 Receivers – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location #Power – Power Input : 2-Pin Circular locking Connector 7-28V DC – Power Output : N/A – Battery : None, optional Gold or V mount battery plate – Battery Runtime : N/A – Nominal Power Consumption : 20 Watts – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0-40℃ – Humidity : N/A Bolt 4K 1500 RX V Mount ———— #Video – Video Inputs : N/A – Sdi Compliance : N/A – Video Outputs : 2 x 12G-SDI SMPTE 2082-1 standard / 75 Ω (accepts 12G-SDI, 6G-SDI, or 3G-SDI) 1 x HDMI Type-A receptacle accepts HDMI 2.0 or HDMI 1.4) – Sdi Ancillary Data Support : Supports transmitting metadata, timecode, and start/stop flags from most camera manufacturers. – Color Sampling : SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : Yes, HDMI to SDI – Delay Tx To Rx : <0.001sec #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 4Kp23.98/24/25/29.97/30/50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p50 576p59.94/60 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : Visually Lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : Connect an HD source to the Tx and get a 4K signal out of Rx Connect a 4K source to the Tx, get HD resolution out of Rx You can also mix & match from a single source: 4K signal into Tx can be 4K output from 1x Rx and HD output from a 2nd Rx Input/output configurations are controlled directly on units or via Bolt 4K app – Color Correction : 17x17x17 3D LUT (supports 10-bit color) #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : N/A #Outputs – Audio Output : Embedded SDI/HDMI Audio Output (2 Channel) #Physical – Dimensions : 112 x 139 x 27 mm – Weight : Bolt 4K Tx without antennas (no battery plates) = 360g Bolt 4K Tx with 4x antennas (no battery plates) = 408g Bolt 4K Rx without antennas (no battery plates) = 440g Bolt 4K Rx with 5x antennas (no battery plates) = 496g Gold-Mount battery plate set (male+female) = +172g V-Mount battery plate set (male+female) = +220 g – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : integrated V-Mount Male and Female (with passthrough power) Multiple mounting options with M3 and 3/8", holes #Interfaces – Http : N/A – Configuration Interfaces : OSD with Menu, Joystick Navigation – Switches : On/Off Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : N/A – Usb Interface Functionality : Upgrade via Micro-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : 5 External 2 dBi antennas (included) or optional Array Panel Antenna – Wireless : Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.270 ~ 5.670 GHz – Number Of Channels : N/A – Channel Bandwidth : 13x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto, Manual Manual available for non-DFS Channels – Encryption : AES-256, RSA-1024 key exchange – Rf Power : 17 dbm EIRP (one external 2dBi antenna) (<51mW transmit power) – Rf Sensitivity : N/A – Range : Up to 1500 ft, line of sight – Unicast Multicast : Can connect one Transmitter to up to 6 Receivers – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location #Power – Power Input : 2-Pin Circular locking Connector 6-28 VDC – Power Output : N/A – Battery : None, optional Gold or V mount battery plate – Battery Runtime : N/A – Nominal Power Consumption : 18 Watts – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0-40℃ – Humidity : N/A
UPC

818264025314
Teradek : Bolt 4K 1500 12G-SDI/HDMI Wireless TX/RX Deluxe Kit (V-Mount) - New Item Includes Antenna Array / (Bolt 4K 1500 12G-SDI/HDMI Wireless TX/RX Deluxe Kit (V-Mount))
