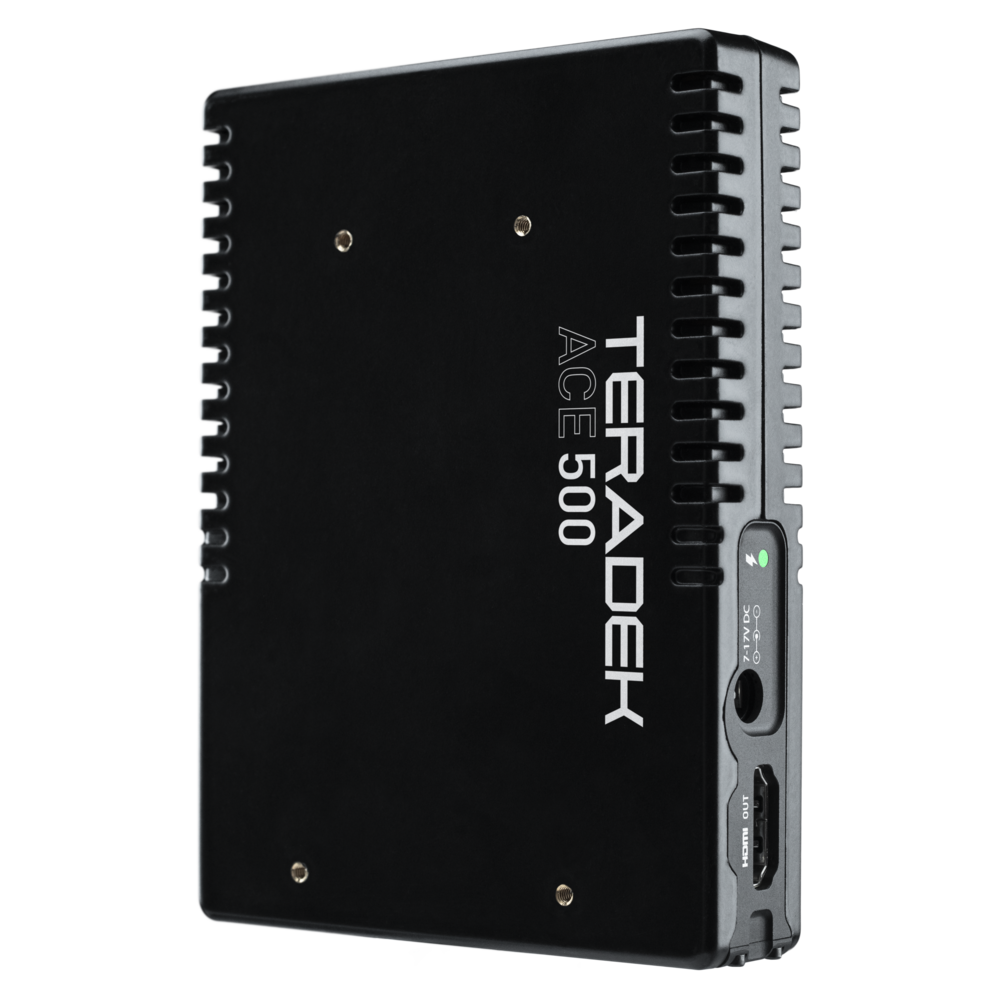

Ace 500 is a compact, lightweight and powerful wireless video system designed for professionals on a budget.
Zero-Delay Wireless Video
Transmit uncompressed 1080p60 video to receivers up to 500 ft. away with less than 1ms of delay.
Bolt Compatibility
Ace 500 receivers are compatible with all Bolt 500, LT & XT transmitters and integrated SmallHD Bolt monitors.
Reliability
Built with the same reliability and performance as the Bolt, Ace 500 ensures you have a continuous video feed when you need it most.
Receivers
Send video from the transmitter to up to 4 receivers within 500 ft.
Mounting Options

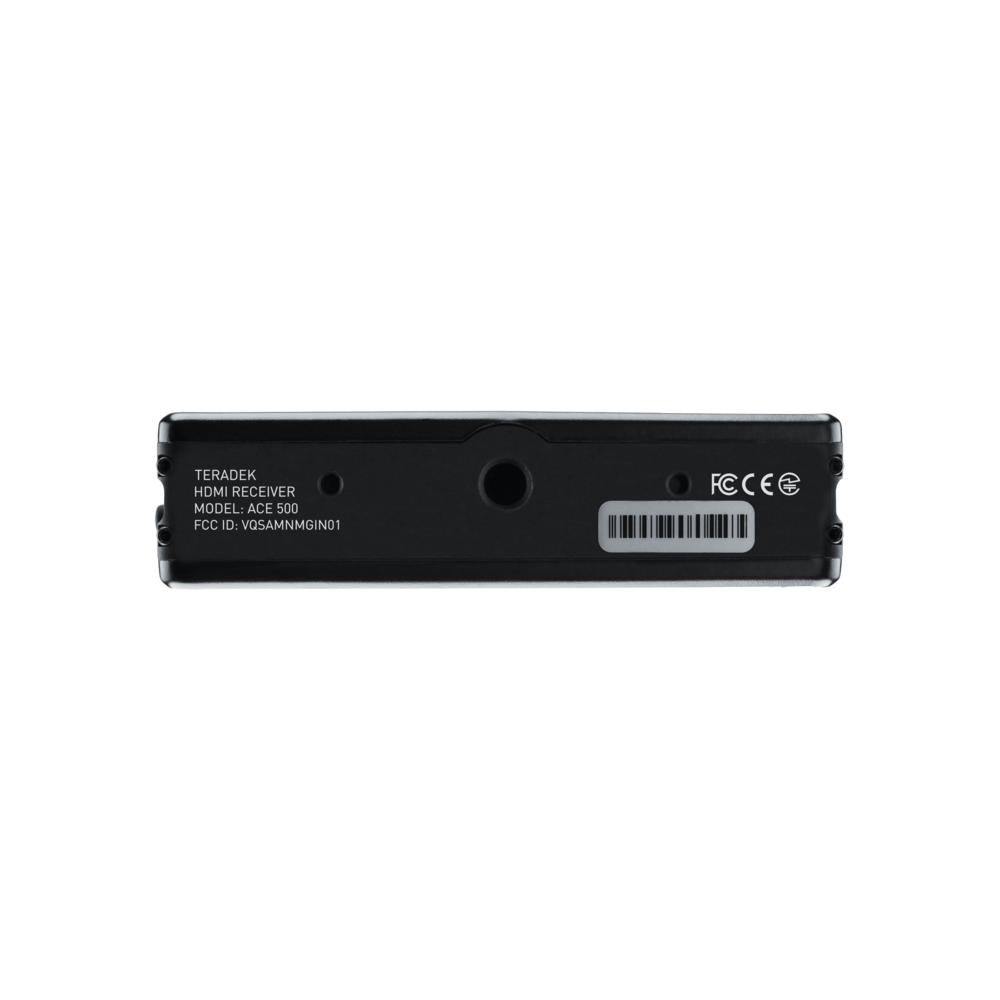

Ace receiver includes 1x 1/4-20″ and 2x 4-40″ mounting points.
Powering Options
Keep your Ace powered with optional battery plates* attached directly to your receiver.
*Available in Sony L-Series, BP-U, BP-9 and Canon LP-E6. (10-1807) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
Teradek Ace 500 RX only – 10-1807
1080p60 wireless video, less than 1ms of delay.
Up to 500 ft. wireless range.

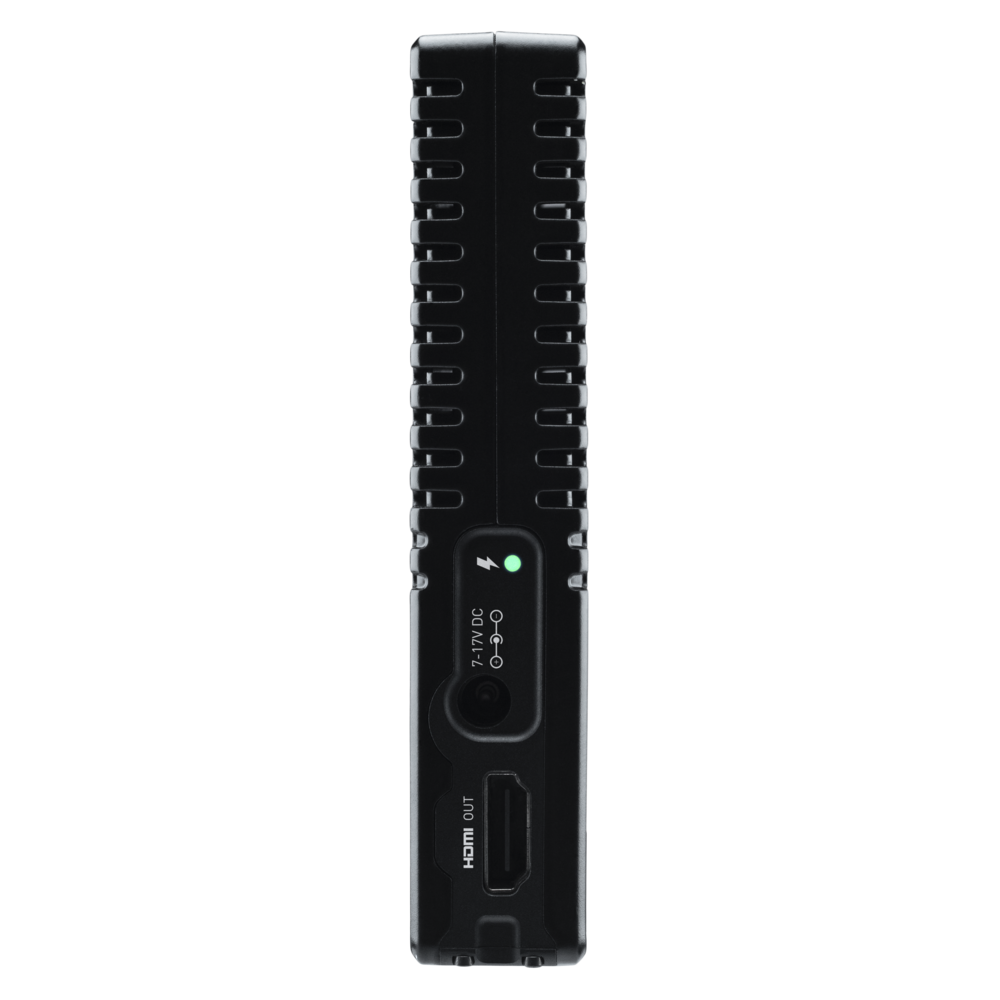

HDMI output.
Transmit to up to 4 receivers.
1x ¼-20” mounting point.
Rx weight: 146g.
Brand
Teradek
| Weight | 4.32 kg |
|---|---|
| In the box | 1 x Ace 500 RX [10-1807] 1 x Mini-USB (5pin) to USB – 18in/45cm Cable [11-1267] 1 x Ultra Thin HDMI Male Type A to HDMI Male Type A 18 Inch [11-1235] 1 x R/A Barrel Power Supply Unit 18W AC Adapter 12VC (International) 6 ft [11-0058] 1 x Quickstart Guide |
| Specs | Technical Specifications: #Video – Video Inputs : N/A – Sdi Compliance : N/A – Video Outputs : 1 x HDMI Type-A receptacle – Sdi Ancillary Data Support : N/A – Color Sampling : HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : N/A – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : visually lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : Yes – Video Format Conversion Support : None – Color Correction : None #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 3.4 x 4.5 x 0.6", (8.6 x 11.5 x 1.5 cm) – Weight : 5.2 oz (146 g) – Construction : Aluminum and ABS plastic – Mountability : 1/4", -20 mounting threads 2x 4-40 mounting holes #Interfaces – Http : N/A – Configuration Interfaces : OSD that appears on the Video Output which can be controlled with the Menu Joystick – Switches : Reset Button – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager Application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : Internal Antennas – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Number Of Channels : N/A – Channel Bandwidth : 12x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : up to 17dBm – Rf Sensitivity : N/A – Range : Up to 500ft line of sight – Unicast Multicast : Unicast / Multicast – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones #Power – Power Input : Barrel Connector 7-17 VDC – Power Output : None – Battery : N/A – Battery Runtime : N/A – Nominal Power Consumption : 7.3 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A |
| UPC | 818264024768 |
