Shipping begins in September 2020. Delivery schedules are subject to change.
Industry leading, low-latency blade decoder for Prism 1RU and 2RU rack mount systems. Supports 4K, 10-bit, 4:2:2 video decoding in a high density format. Can receive video from Prism, Cube, Slice, Core, and T-Rax encoders. – (10-2873) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

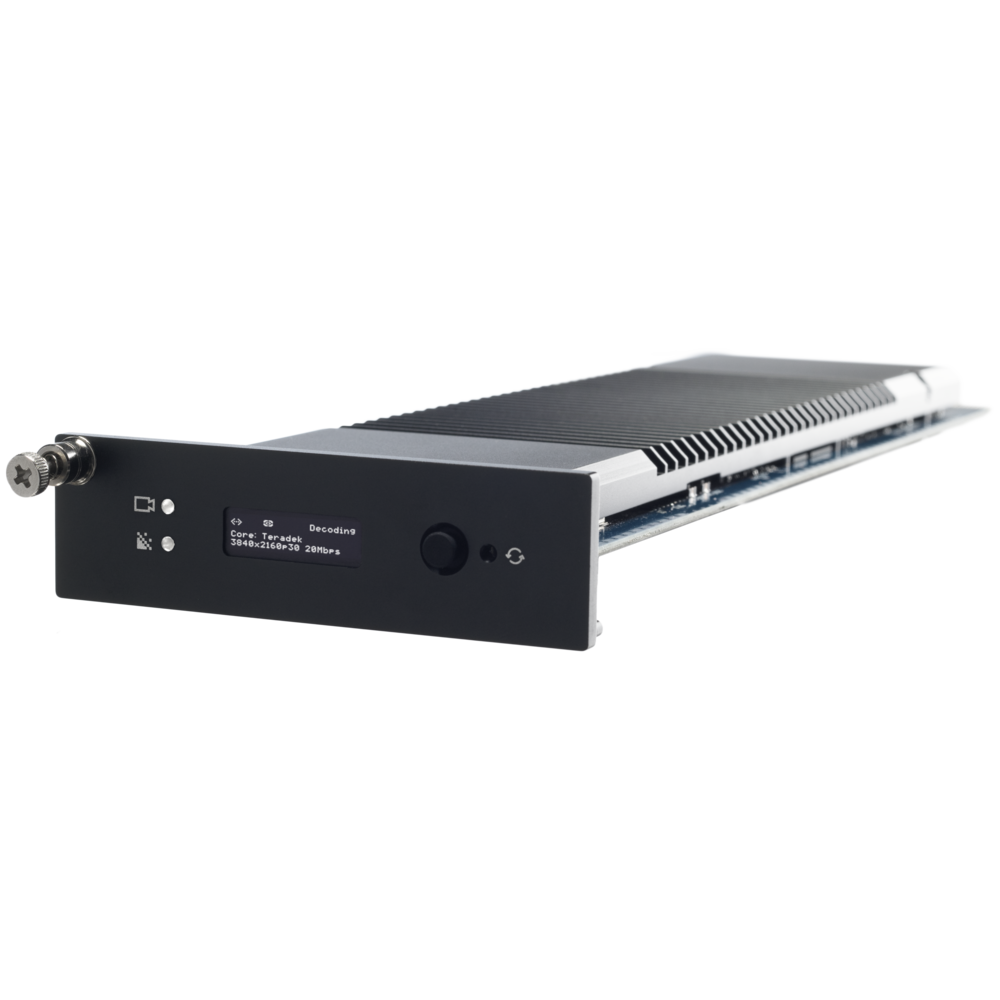

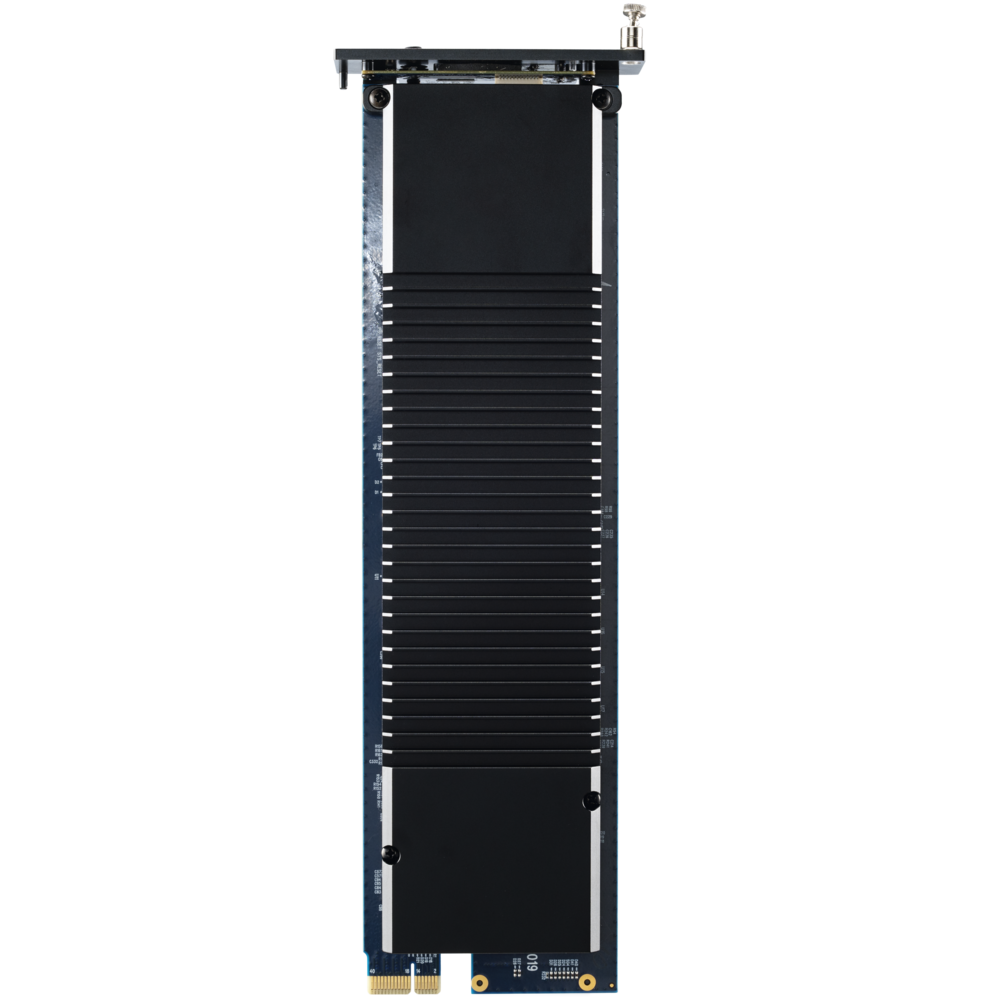

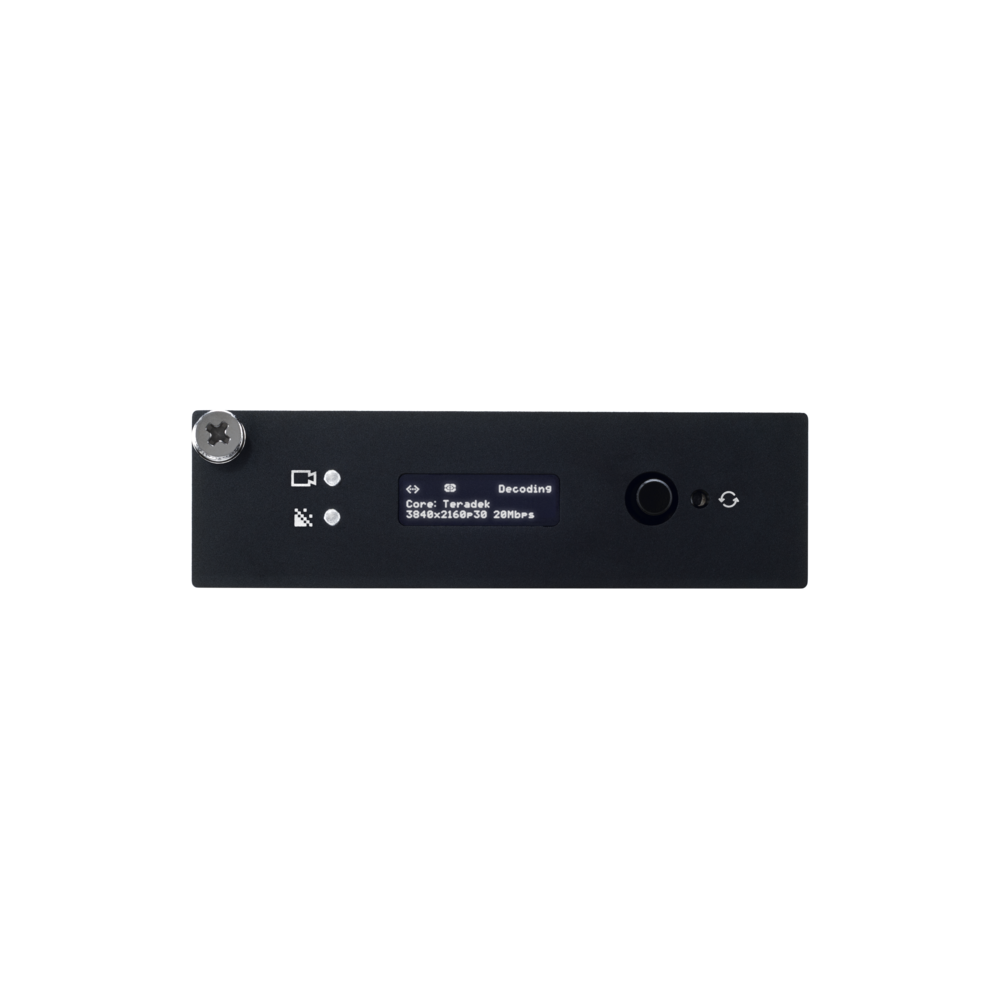

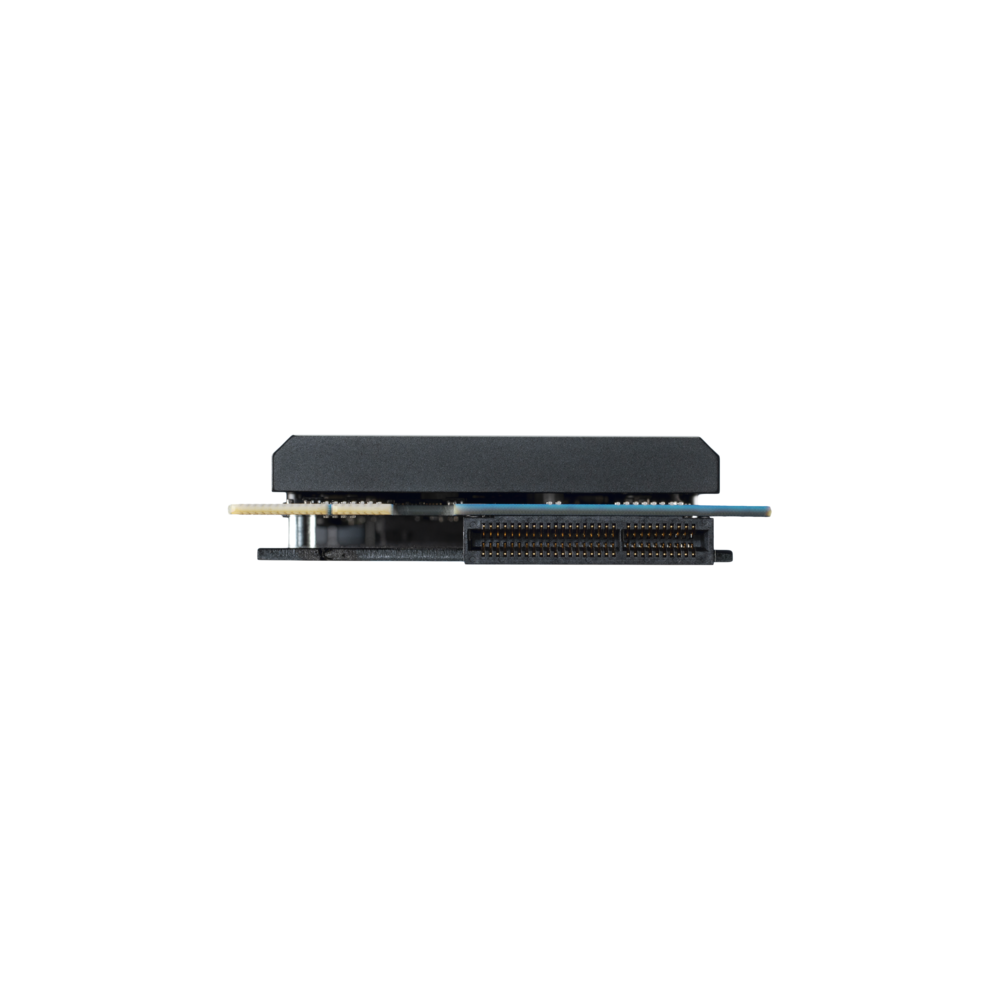

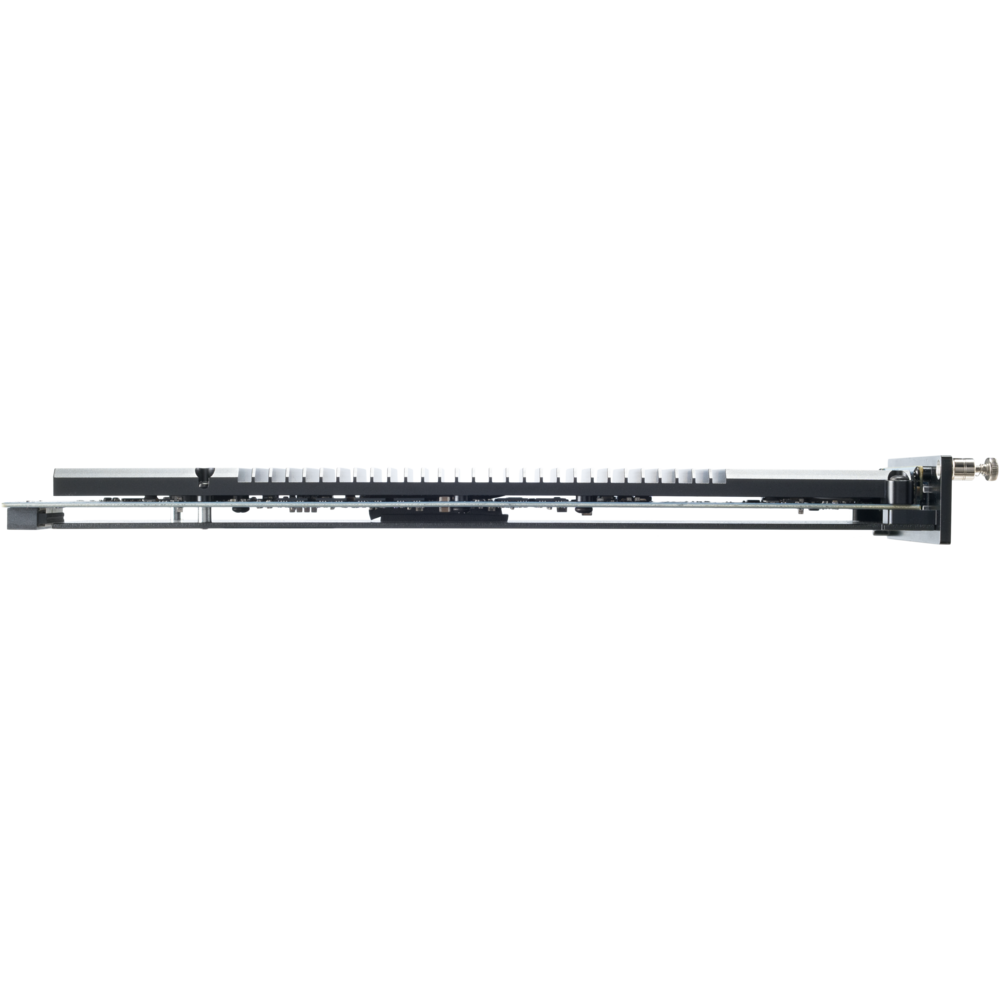

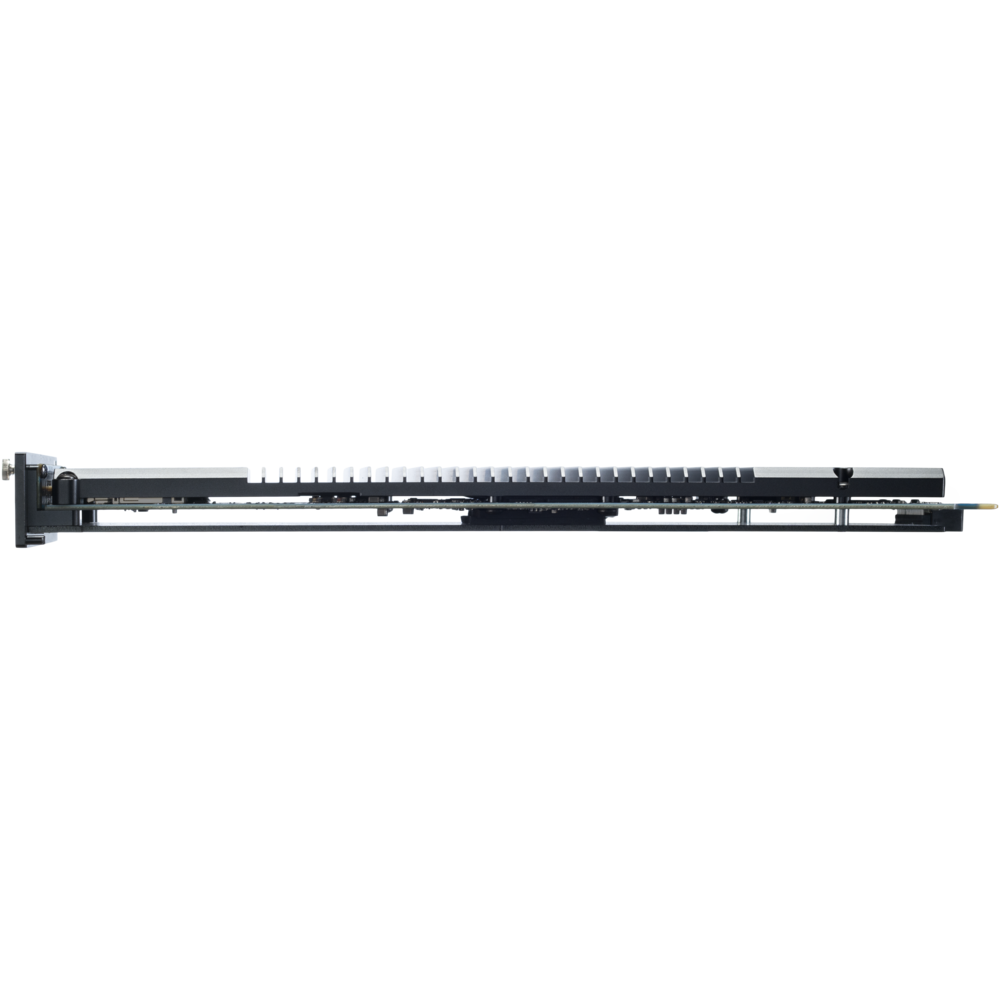

Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card – T-RAX HEVC/AVC Decoder Card – 10-2873
Designed for Prism Rack Base System
HEVC / H.264 compression
Supports decoding up to 2160p60
HDR ready: 10-bit, 4:2:2
Protocols: SRT, MPEG-TS 2x

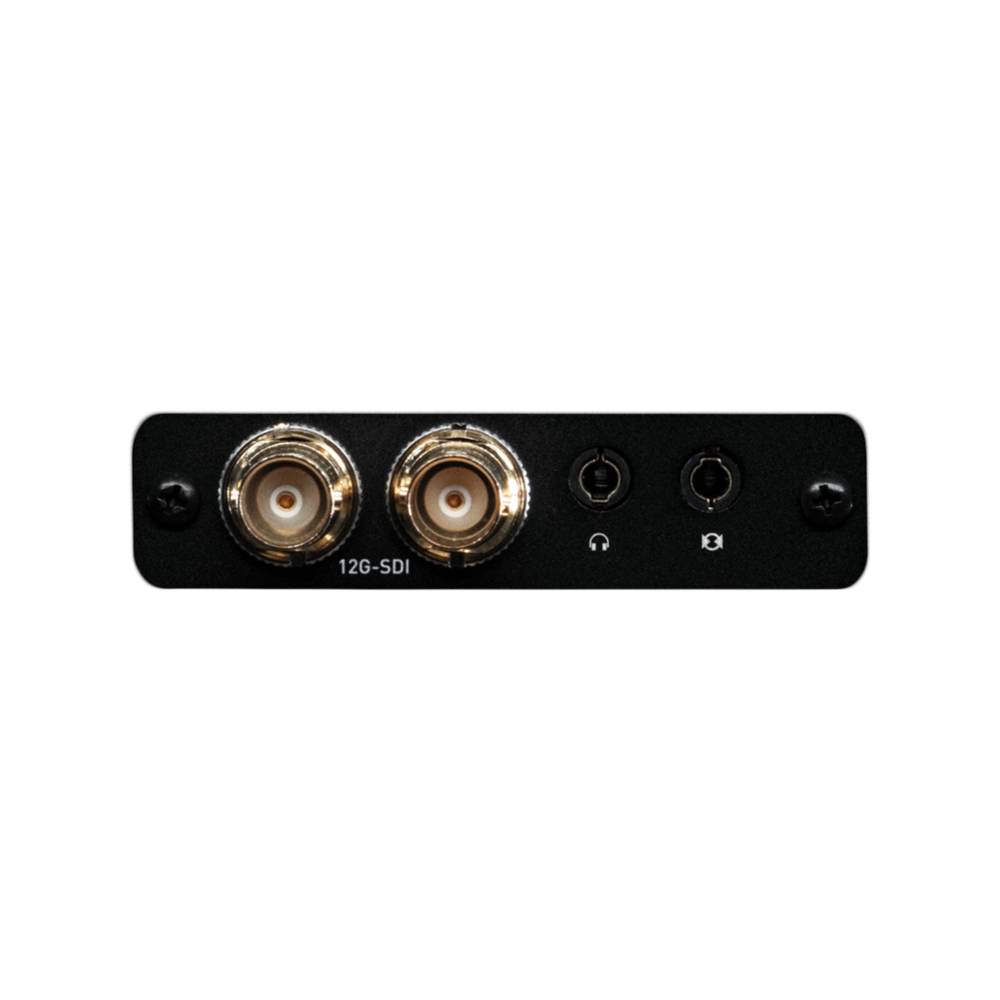

12G-SDI outputs
3.5mm analog audio input and output
Brand
Teradek
Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content.
Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek
Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
| Weight | 4.32 kg |
|---|---|
| In the box | 1 x Prism 873 4K 10bit HEVC/AVC 12G-SDI Decoder Card 1x Audio/Video Backplate |
| Specs | #Video – Video Inputs : N/A – Hdr Support : 10-bit, 4:2:2 – Genlock Input : 75 Ω BNC (From Chassis) – Sdi Compliance : N/A – Video Outputs : 2 x SD/HD/3G/6G/12G-SDI (75 Ω BNC) – Sdi Ancillary Data Support : N/A – Color Sampling : N/A – Delay Tx To Rx : N/A #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 4Kp 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i #Video Processing – Video Compression : ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264 AVC: Baseline, Main, High, High10, High 4:2:2 up to 5.2 level ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265 HEVC: Main, Main Intra, Main10, Main10 Intra, Main 4:2:2 10, Main 4:2:2 10 Intra up to 5.1 High Tier – Supported Video Bitrate : 250 Kbps to 85 mbps – Supported Video Bitrate Details : N/A – Supported Output Resolutions : N/A – Graphics : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : Built in Video Scaler and Deinterlacer – Color Correction : None #Protocol Support – Network Protocols : TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP – Supported Video Transport Protocols : SRT, MPEG-TS – Remote Control : Teradek Core – Software Or Platform Integration : N/A #Audio Processing – Audio Compression : AAC-LC – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded, 8 channels #Outputs – Audio Output : Embedded, 8 channels 3.5mm Stereo Line Level Analog #Physical – Dimensions : N/A – Weight : N/A – Construction : N/A – Mountability : N/A #Interfaces – Http : N/A – Configuration Interfaces : Feature-rich Web UI for configuration and control 0.9” OLED Status Display w/ Nav control Video LED ENC/DEC LED – Switches : Reset Switch – Recording Storage : N/A – Mobile App : N/A – Desktop App : N/A – Usb Interface Functionality : N/A – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Wireless : N/A – Usb : N/A – Rf Channel Selection : N/A – Encryption : N/A – Rf Power : N/A – Range : N/A – Unicast Multicast : N/A – Noise Rejection : N/A #Power – Power Input : Powered By Chassis – Power Output : N/A – Battery : N/A – Battery Runtime : N/A – Nominal Power Consumption : Up to 15W per card – Auxilary Power Input : N/A #Environmental – Operating Temperature : N/A – Humidity : N/A |
| UPC | 818264026588 |
