What is HEVC?HEVC, also known as H.265, is a next-generation compression standard that offers a number of enhancements over H.264. Compared to AVC (H.264) compression, HEVC is 50% more efficient, which translates into maintaining the same video quality at half the bitrate or double the video quality at the same bitrate.The new Cube 700 and Slice 756 seriesThe new Cube 700 and Slice 756 series bring the latest in compression technology at a size and price point never before seen. What makes HEVC Cube and Slice unique• Can use both HEVC (H.265) and AVC (H.264) High Profile compression• Compatible with Core transcoding engine. This allows you to take advantage of HEVC encoding when streaming to Core, while delivering your content in AVC to your destination.• Dual input (HDMI + 3G-SDI) • Compatible with the new Bond expansion module, allowing you to turn your Cube 700 series into a professional bonding solution• GigE and 2.4 / 5Ghz 802.11ac WiFi built-in• Bitrate support up to 30Mbps• Streaming resolution support up to 1080p60• Compatible with T-21, Sencore, and Vitec HEVC decoders• Uses just 6W of powerWhat can Cube and Slice codecs do?• Stream to any online video platform, such as Facebook, Youtube, Twitch, Periscope, and more.• Stream point-to-point to decoders over the internet or on local networks with latency as low as 80msComprehensive protocol support: MPEG-TS, RTSP, RTMP, HLS, TDS • Monitor your live video feed on an iOS device for confidence or local configuration• Turn your camera into a wireless video feed for Teradek’s Live:Air iOS switcher application (10-0755) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

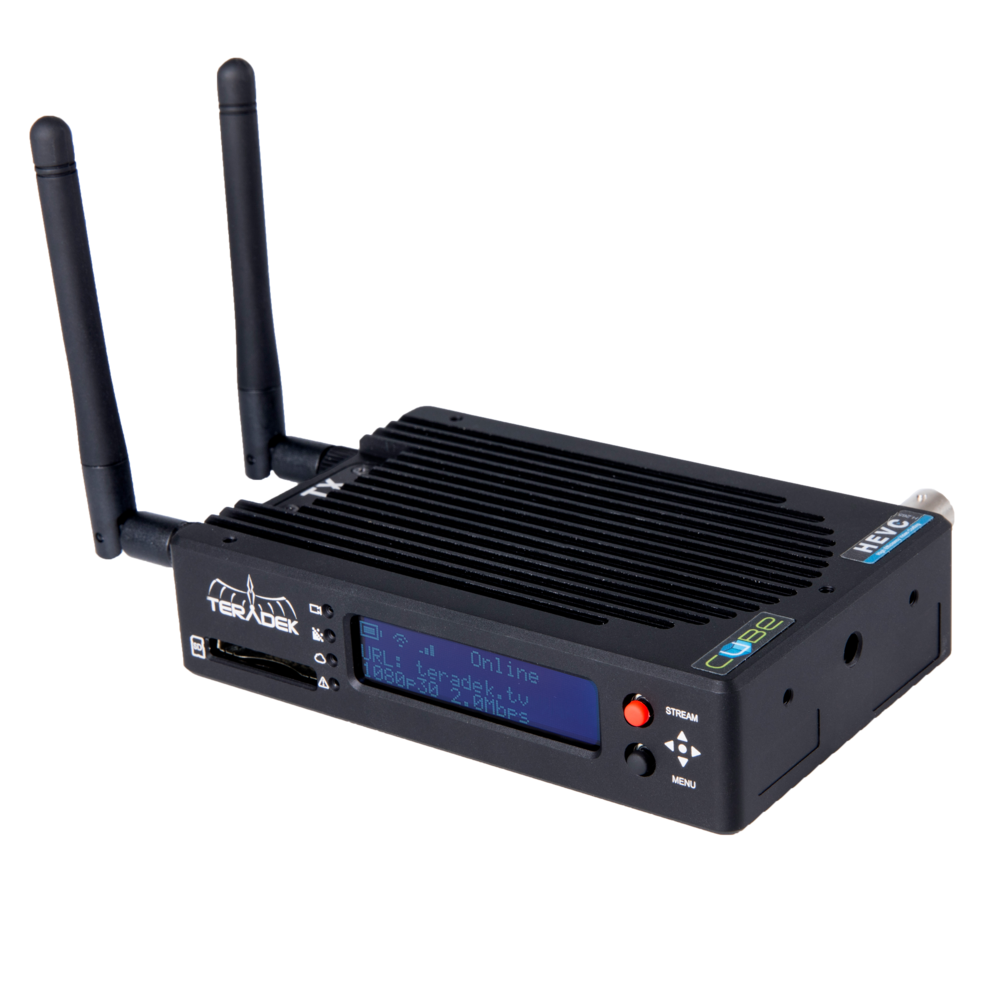

Cube 755 – H.265 (HEVC) and H.264(AVC) Camera Top Encoder – Cube-755 – 10-0755
Real-Time H.265(HEVC) and H.264(AVC) Encoder
Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces

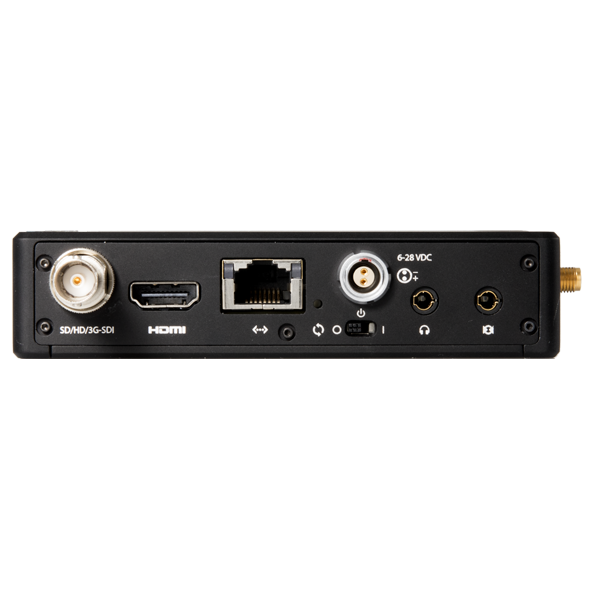

HDMI and SDI Video Inputs
Camera Top Form Factor
Built-In Color Grading
On-Board SD Card Recording
Two-Pin Connector-Type Power Input
Brand
Teradek
| Weight | 2 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
| In the box | 1 x 2-pin Connector to 18W AC Power Adapter 1 x Ethernet Cable 1 x SDI Cable (BNC to BNC) 1 x HDMI Cable (Full Type A to Full Type A) 1 x 1-Year Warranty 2 x Wireless Antennas (2dBi 2.4/5.8 Ghz) 1 x Hot Shoe Adapter |
| Specs | Technical Specifications: #Video – Video Inputs : 1 xSD/HD/3G-SDI (75 Ohm BNC) 1 x HDMI Type-A receptacle – Sdi Compliance : N/A – Video Outputs : None – Sdi Ancillary Data Support : N/A – Color Sampling : N/A – Delay Tx To Rx : N/A #Bonding – Bonding : TeraLink #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i 480p (for HDMI input only) 576p (for HDMI input only) #Video Processing – Video Compression : H.264: base/main/high profile up to level 4.2 H.265: main profile up to level 4.1 – Supported Video Bitrate : 250 Kbps to 30 Mbps – Supported Video Bitrate Details : N/A – Supported Output Resolutions : N/A – Graphics : N/A – Test Pattern Generator Support : Supports Custom Test Pattern – Video Format Conversion Support : Built in Video Scaler and Deinterlacer – Color Correction : CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) #Protocol Support – Network Protocols : TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP – Supported Video Transport Protocols : SRT RTMP RTP, RTSP, RTSP over HTTP MPEG-TS (MPEG-TS is an optional paid license) – Remote Control : Teradek Core – Software Or Platform Integration : Ustream, YouTube Live, Facebook & new Livestream #Audio Processing – Audio Compression : AAC-LC, MPEG Layer 2 – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input Analog Line or Mic in, adjustable gain #Outputs – Audio Output : Headphone output #Physical – Dimensions : 4.75", W x 3"D x 1.1", H [120.7 x 76.2 x 27.9mm] – Weight : 11.6oz [328.9g] – Construction : Milled Aluminum – Mountability : Can be mounted horizontally or vertically with 1/4", 20 mounting holes #Interfaces – Http : WebUI for Configuration and Control – Configuration Interfaces : OLED Display with joystick Navigation buttons Feature-rich WebUI for configuration and control – Switches : On/Off and Reset Switch – Recording Storage : SD Card: Full Size – Mobile App : Vuer, Live:Air – Desktop App : N/A – Usb Interface Functionality : 1x Powered USB 2.0 host port – External Control : N/A – Bluetooth : N/A #Network – Ethernet : 10/100/1000 BASE-T Gigabit – Wireless : WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo – Usb : USB 3G/4G Modem support** ** refer to this article on which modems are known to be supported: https://support.teradek.com/hc/en-us/articles/217447037-What-3G-4G-USB-Modems-are-supported- – Rf Channel Selection : Auto with 3 modes: (2.4 or 5 GHz), Auto (2.4 GHz only), Auto (5 GHz only) Manual: Configurable to specific channels – Encryption : 802.1x, 802, 11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES – Rf Power : N/A – Range : N/A – Unicast Multicast : N/A – Noise Rejection : N/A #Power – Power Input : 2 Pin Connector Power input – Power Output : N/A – Battery : No Battery Included – Battery Runtime : N/A – Nominal Power Consumption : 8W, 7W (no WiFi) – Auxilary Power Input : 6-28V DC #Environmental – Operating Temperature : N/A – Humidity : N/A |
| UPC | 818264020470 |
