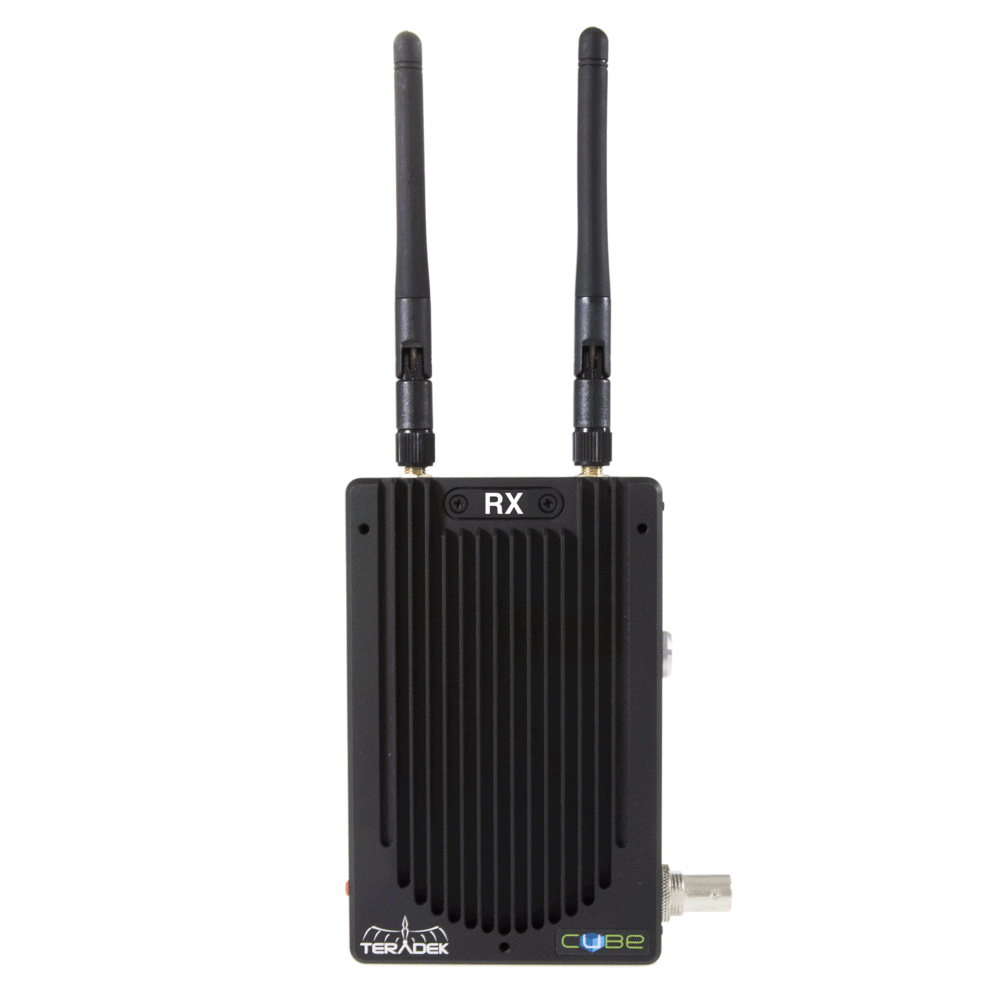

Cube 675 is the latest in Teradek’s line of professional, scalable integrated decoders designed for video over IP delivery. Compatible with Cube encoders, Cube 675 offers SD/HD MPEG-4 AVC decoding for point-to-point video distribution, allowing content creators, broadcasters and system integrators to cost-effectively and reliably meet strict QoS requirements.
With flexible HDMI/3G-SDI dual-output and Ethernet/WiFi (2.4/5Ghz)/cellular USB connection options, Cube 675 streamlines IP video deployment in existing workflows and enhances infrastructure for all users. Small form factor and high-performance decoding make it one of the most versatile solutions for content delivery strategies in the video ecosystem. (10-0675) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
Cube 675 – H.264(AVC) Decoder SDI/HDMI GbE WiFi – Cube 675 – AVC Decoder SDI/HDMI GbE Wifi – 10-0675
Real-Time H.264 (AVC) Decoder

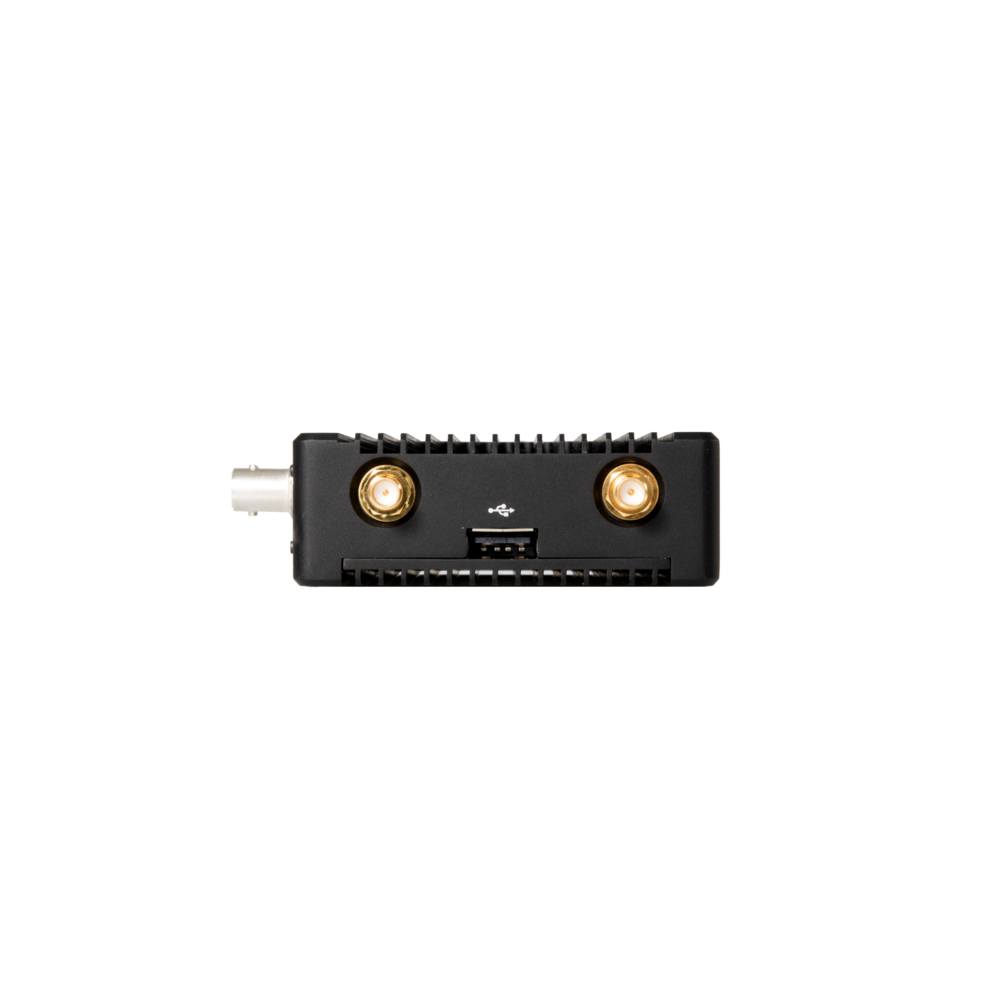

Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces
HDMI and SDI Video Outputs (Outputs 1080p/30)
Camera Top Form Factor
Built-In Scaler
OLED Display
Powers by AC Adapter or 2-pin Connector Battery
Outfitted for 1/4″ Mounting
Brand
Teradek
| Weight | 2 kg |
|---|---|
| Dimensions | 7 × 7 × 5 cm |
| In the box | 1 x 2-pin Connector to 18W AC Power Adapter 1 x Ethernet Cable 1 x SDI Cable (BNC to BNC) 1 x HDMI Cable (Full Type A to Full Type A) 1 x 1-Year Warranty 2 x Wireless Antennas (2dBi 2.4/5.8 Ghz) |
| Specs | Technical Specifications: #Video – Video Inputs : N/A – Sdi Compliance : N/A – Video Outputs : HDMI 1.4a: Full Size SD/HD/3G-SDI (75 Ω BNC) – Sdi Ancillary Data Support : N/A – Color Sampling : N/A – Delay Tx To Rx : N/A #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60* 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i 480p (for HDMI output only) 576p (for HDMI output only) #Video Processing – Video Compression : Decompresses H.264, Baseline, Main and High Profile – Supported Video Bitrate : 250 Kbps to 15 Mbps* *15 Mbps (wired), 10 Mbps (WiFi) – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : None – Video Format Conversion Support : Built in Video Scaler and Deinterlacer – Color Correction : None #Protocol Support – Network Protocols : TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP – Supported Video Transport Protocols : RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP Teradek Streaming : Unicast/UDP, Multicast/UDP – Remote Control : Teradek Core – Software Or Platform Integration : N/A #Audio Processing – Audio Compression : AAC-LC, MPEG Layer 2 – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input Analog Line or Mic in, adjustable gain #Outputs – Audio Output : Headphone output, adjustable volume #Physical – Dimensions : 4.75", W x 3"D x 1.1", H [120.7 x 76.2 x 27.9mm] – Weight : 11.6oz [328.9g] – Construction : Milled Aluminum – Mountability : N/A #Interfaces – Http : WebUI for Configuration and Control – Configuration Interfaces : OLED Display with joystick Navigation buttons Feature-rich WebUI for configuration and control – Switches : On/Off and Reset Switch – Recording Storage : N/A – Mobile App : Vuer, Live:Air – Desktop App : N/A – Usb Interface Functionality : Powered USB 2.0 host port – External Control : N/A – Bluetooth : N/A #Network – Ethernet : 10/100BASE-T – Wireless : WiFi: 2.4/5GHz 802.11 a/b/g/n MiMo – Usb : None – Rf Channel Selection : Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only) Configurable to specific channels – Encryption : 802.1x, 802, 11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES – Rf Power : N/A – Range : N/A – Unicast Multicast : N/A – Noise Rejection : N/A #Power – Power Input : 2 Pin Connector Power input – Power Output : N/A – Battery : No Battery Included – Battery Runtime : N/A – Nominal Power Consumption : 8W, 7W (no WiFi) – Auxilary Power Input : 6-28V DC #Environmental – Operating Temperature : N/A – Humidity : N/A |
| UPC | 818264020456 |
