Bolt XT
The Bolt XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility.
A key feature of the Bolt XT is its backward compatibility with any Bolt of the same range, Sidekick II / LT / XT, and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.

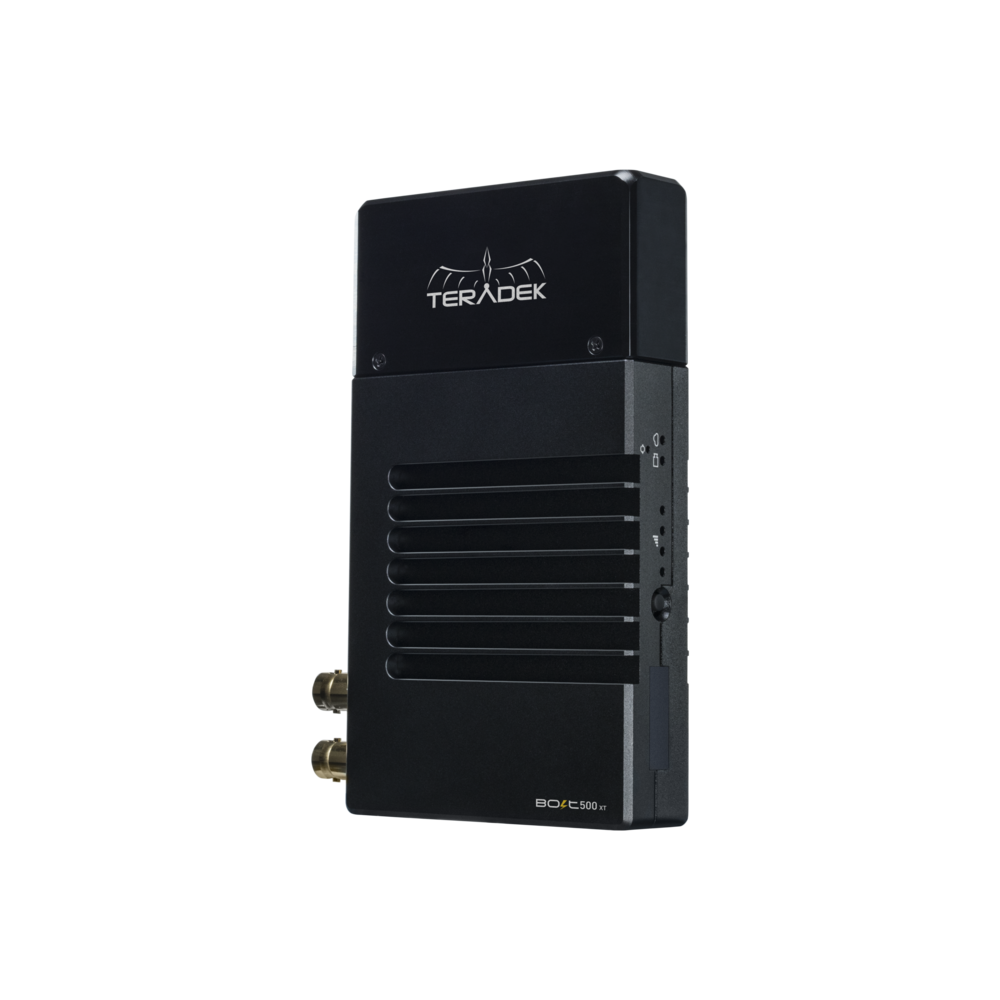

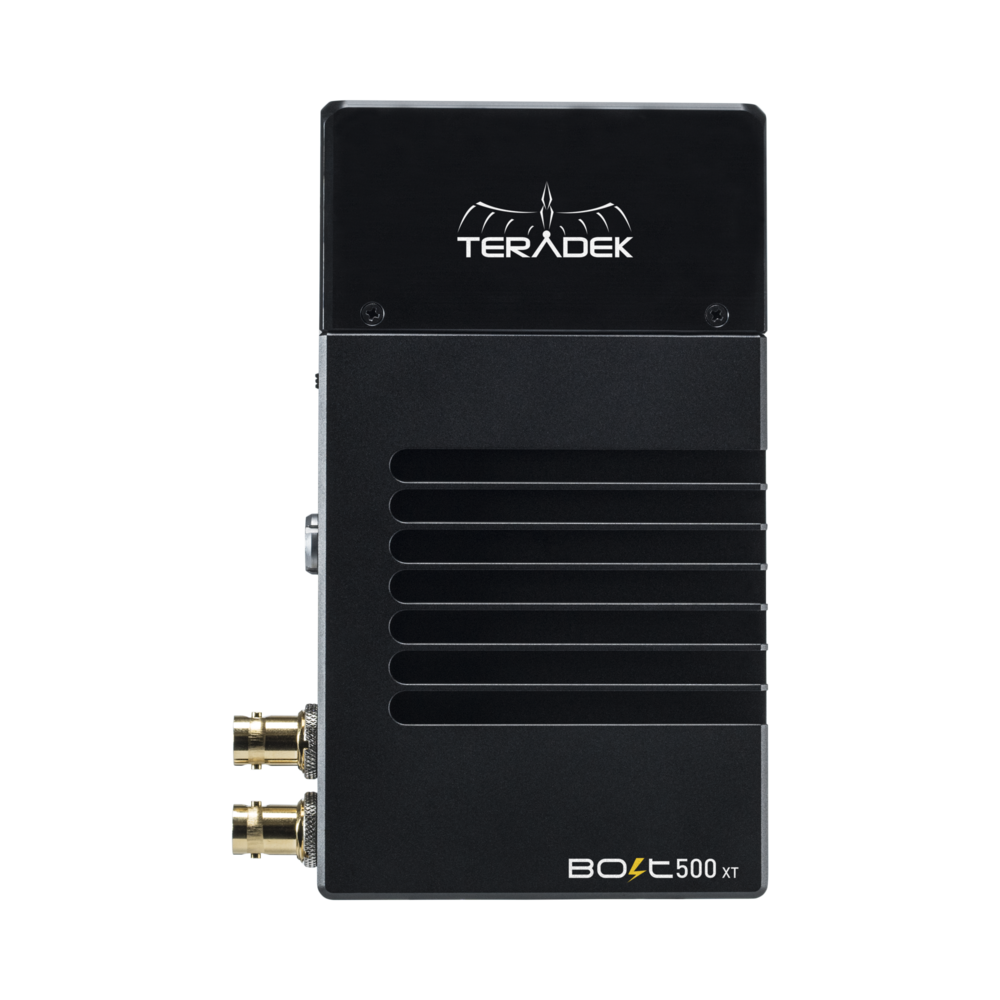

Each transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. Receivers feature an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up. With the Bolt XT line, Teradek has added an integrated NATO rail on the receiver, several 1/4”-20 and 3/8” mounting points, and an ARRI rosette on the transmitter to greatly improve available mounting options.

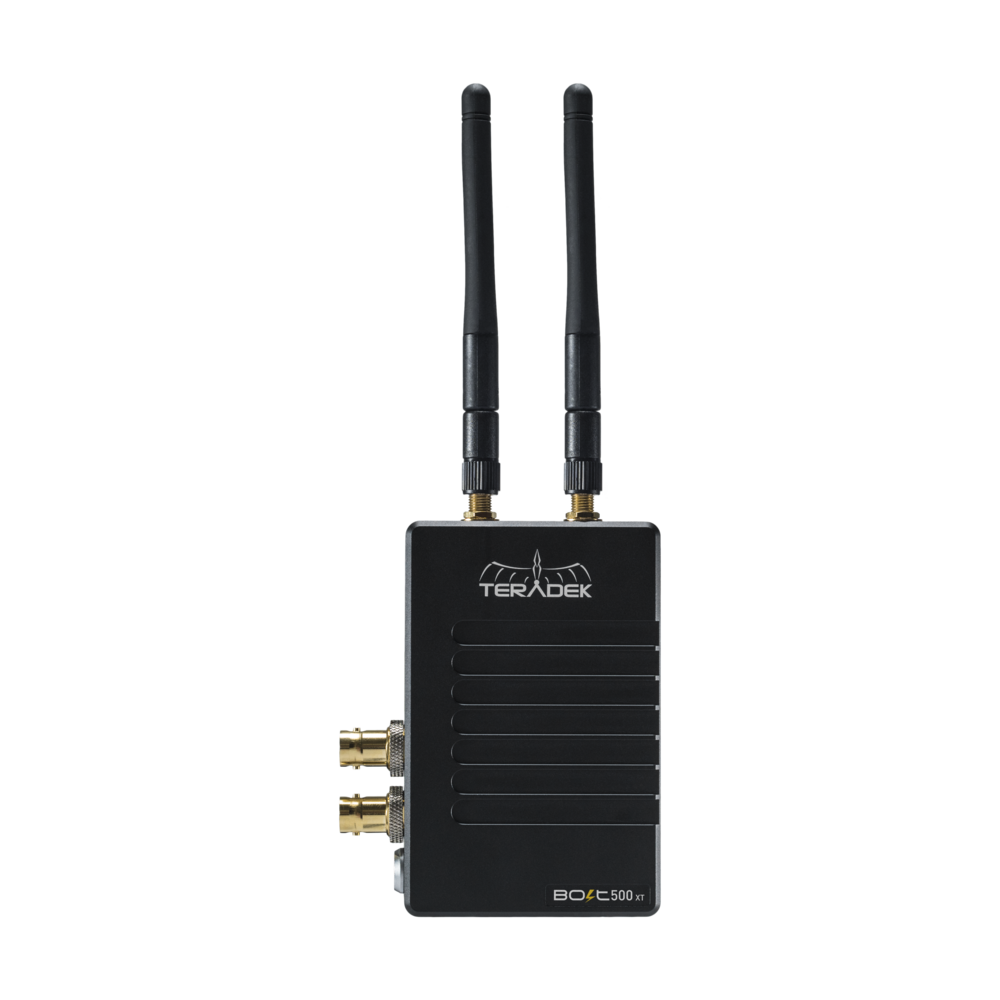

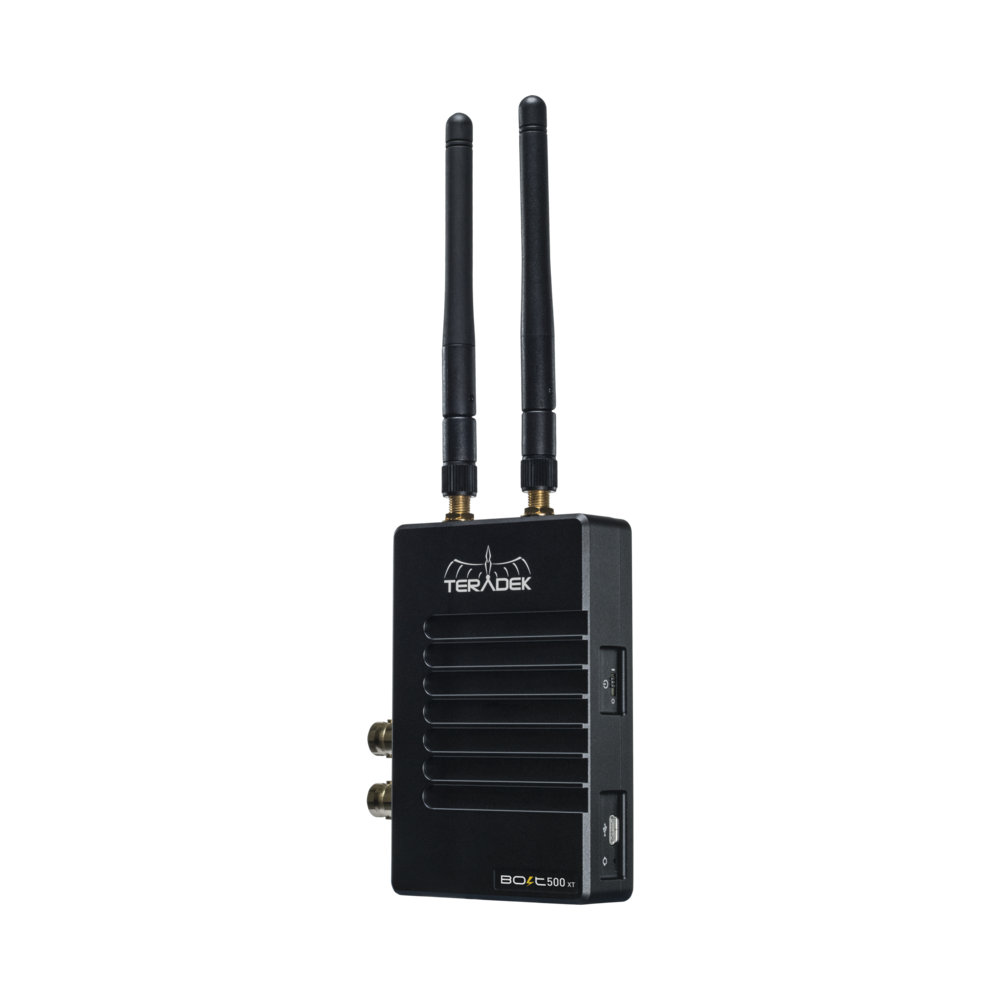

An all-new aluminum chassis further reduces the size and weight of the Bolt line, with receivers also allowing for integrated pass-through power. Available battery plate accessories include V- or Gold-mount, in addition to bi-directional Sony L-series or Canon LP-E6 plates on the Bolt 500 XT. Teradek has also replaced the internal antennas on the Bolt 500 XT transmitter with an external set to enhance wireless performance when operating in environments with large obstacles or heavy interference.
The Bolt XT, like the previous generation, is multicast capable up to 4 receivers and includes built-in cross conversion and Teradek’s proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5GHz spectrum analyzer to keep an eye on interference in your area. (10-1935-1V) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
Bolt 500 XT SDI/HDMI Wireless TX/RX Deluxe Kit – 1 / V Mount – 10-1935-1V
Compatible with 3rd generation Bolt 500, Bolt 500 LT, Sidekick II, and 703 Bolt
Professional software features: 3D LUTs, 5GHz spectrum analyzer

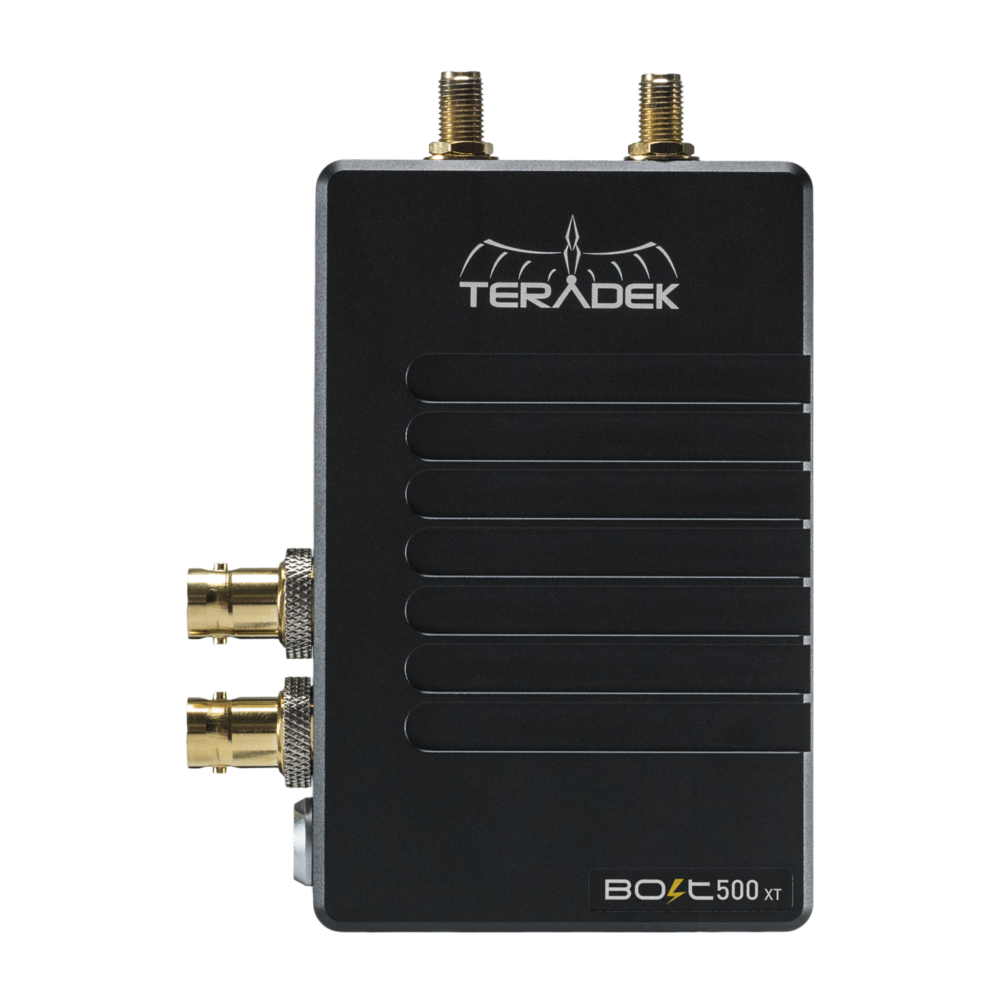

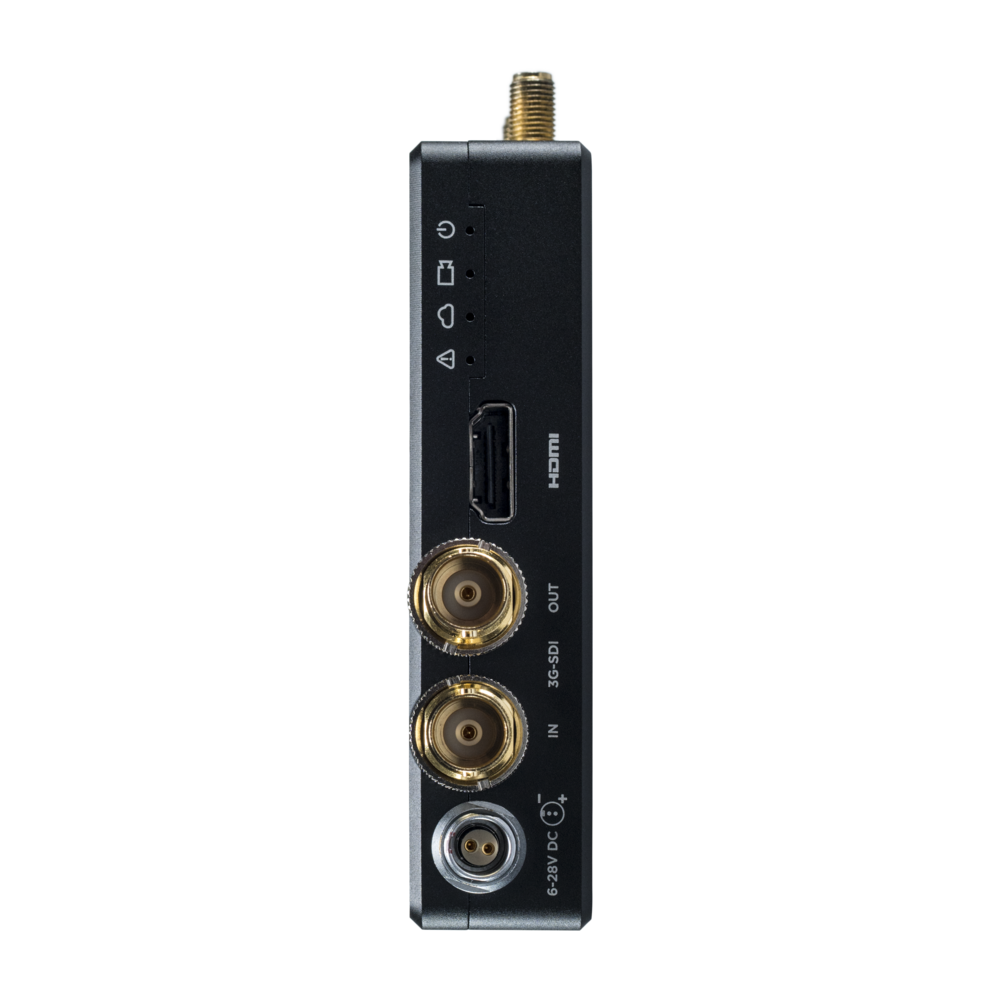

Dual input (SDI + HDMI) and SDI loop out on TX

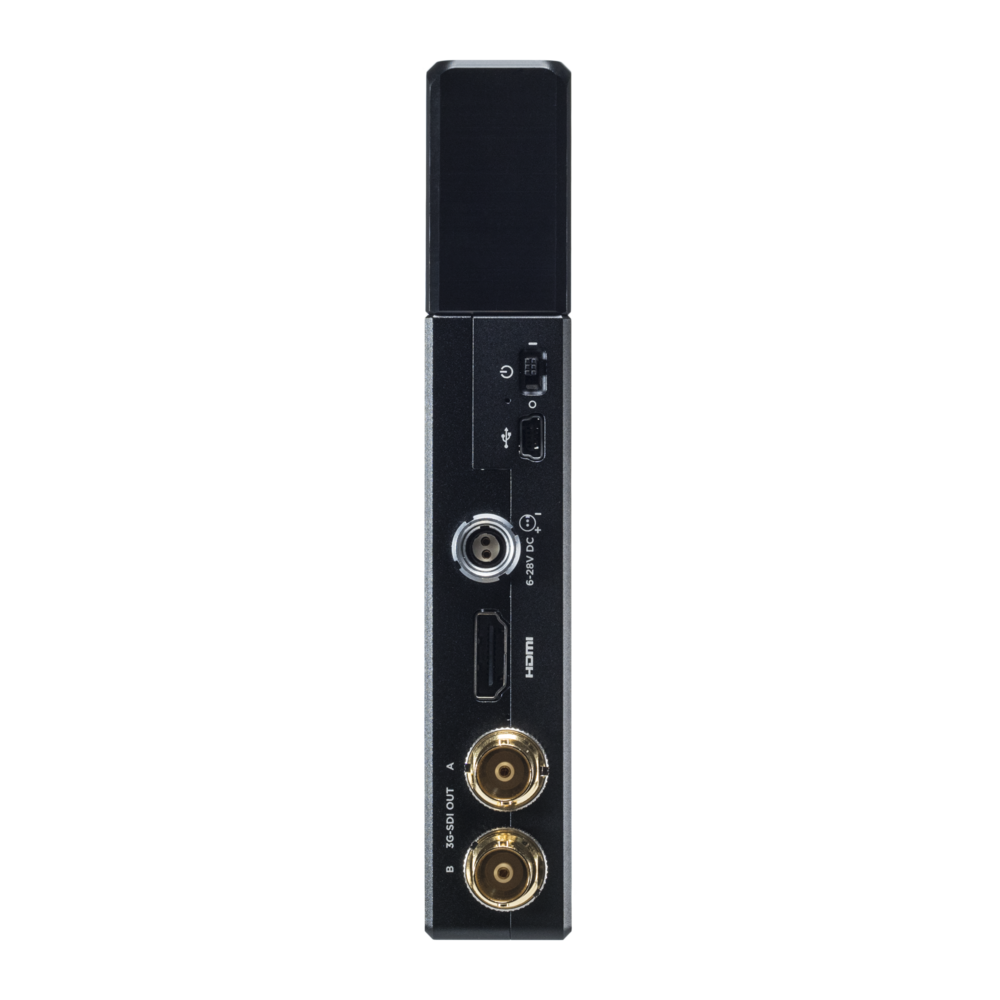

HDMI and Dual 3G-SDI outputs on RX
Includes Wooden Camera Ultra Arm, Nato Kit, large protective case
Brand
Teradek
| Weight | 11.05 kg |
|---|---|
| Dimensions | 16 × 12 × 8 cm |
| In the box | Comes with a 1 Bolt transmitter, 1 Bolt receiver, 1 Wooden Camera ultra arm, 1 NATO lock kit and a military-grade Protective SKB Case that fits everything in custom foam. 1 x Protective SKB Case – military-standard waterproof hard case with custom foam (13.5in x 9.5in x 6.5in – 34.29cm x 24.13cm x 16.51cm) 1 x Wooden Camera Ultra Arm Mini Monitor Mount (1/4-20 to 1/4-20) with Arm Ball (3/8-16) 1 x Wooden Camera NATO Lock Kit 1 x Teradek Vinyl Zipper Bag 250x150mm 1 x Hex L Key 2.5 mm size 3-5/6 inch length 1 x Hex L key 3/16inch x 2 13/16inch length 1 x factory-installed Gold Mount (female) Battery Plate 14.4V attached to RX Transmitter 1 x 2-pin Connector to PowerTap 18 inch Cable 1 x Hot Shoe Adapter (1/4"-20 inch) 2 x Antenna 2dBi WiFi 2.4/5.8 GHz 1 x USB 2.0 Cable (A-Male to Mini-B) 1 x HDMI 18in Cable (Type A to Type A) 1 x SDI (BNC to BNC) Cable 10 inch Receiver 1 x Lightstand Adapter (1/4"-20 inch) 1 x USB 2.0 Cable (A-Male to Mini-B) 1 x PSU 2-Pin Connector to 18W AC Adapter 6ft cable 1 x HDMI 18in Cable (Type A to Type A) 1 x SDI (BNC to BNC) Cable 10 inch |
| Specs | Technical Specifications: Bolt XT 500 SDI/HDMI Wireless TX ———— #Video – Video Inputs : 1 x SD/HD/3G-SDI (75 Ohm BNC) 1 x Type A receptacle HDMI – Sdi Compliance : N/A – Video Outputs : 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC) – Sdi Ancillary Data Support : supports metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087 – Color Sampling : SDI: YCbCr 4:2:2, 8-bit HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : N/A – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : visually lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : Yes – Color Correction : N/A #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 0.95", x 2.6" x 4.47", (24mm x 66mm x 101.5mm) – Weight : 8oz (226g) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : Multiple mounting options with M3 and 1/4", holes 3/8" ARRI style accessory mount #Interfaces – Http : None – Configuration Interfaces : None – Switches : N/A – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager Application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : N/A – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Number Of Channels : N/A – Channel Bandwidth : 12x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : 17dBm – Rf Sensitivity : N/A – Range : Up to 500ft line of sight – Unicast Multicast : Unicast / Multicast – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones #Power – Power Input : 2-Pin Connector 7-28 VDC – Power Output : N/A – Battery : None – Battery Runtime : N/A – Nominal Power Consumption : 7.3 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A Bolt 1937 Bolt XT 500 SDI/HDMI Wireless RX ———— #Video – Video Inputs : N/A – Sdi Compliance : N/A – Video Outputs : 1 x SD/HD/3G-SDI (75 Ohm BNC) 1 x HDMI Type-A receptacle – Sdi Ancillary Data Support : supports metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087 – Color Sampling : SDI: YCbCr 4:2:2, 8-bit HDMI: RGB 4:4:4, 8-bit – Input Cross Conversion : N/A – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : visually lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : Yes – Video Format Conversion Support : Yes – Color Correction : 1024 1D LUT 17x17x17 3D LUT #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 6", x 3.4" x 1", (152 x 86 x 25)mm – Weight : 10.5oz(299g) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB Plastic Cap – Mountability : Multiple mounting options with M3 and 1/4", holes #Interfaces – Http : None – Configuration Interfaces : OLED Screen with Menu Joystick Navigation – Switches : N/A – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager Application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : N/A – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Number Of Channels : N/A – Channel Bandwidth : 12x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : 15dBm EIRP – Rf Sensitivity : N/A – Range : Up to 500ft line of sight – Unicast Multicast : Unicast / Multicast – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones #Power – Power Input : 2-Pin Connector 7-28 VDC – Power Output : N/A – Battery : None – Battery Runtime : N/A – Nominal Power Consumption : 9 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A |
| UPC | 818264023518 |
