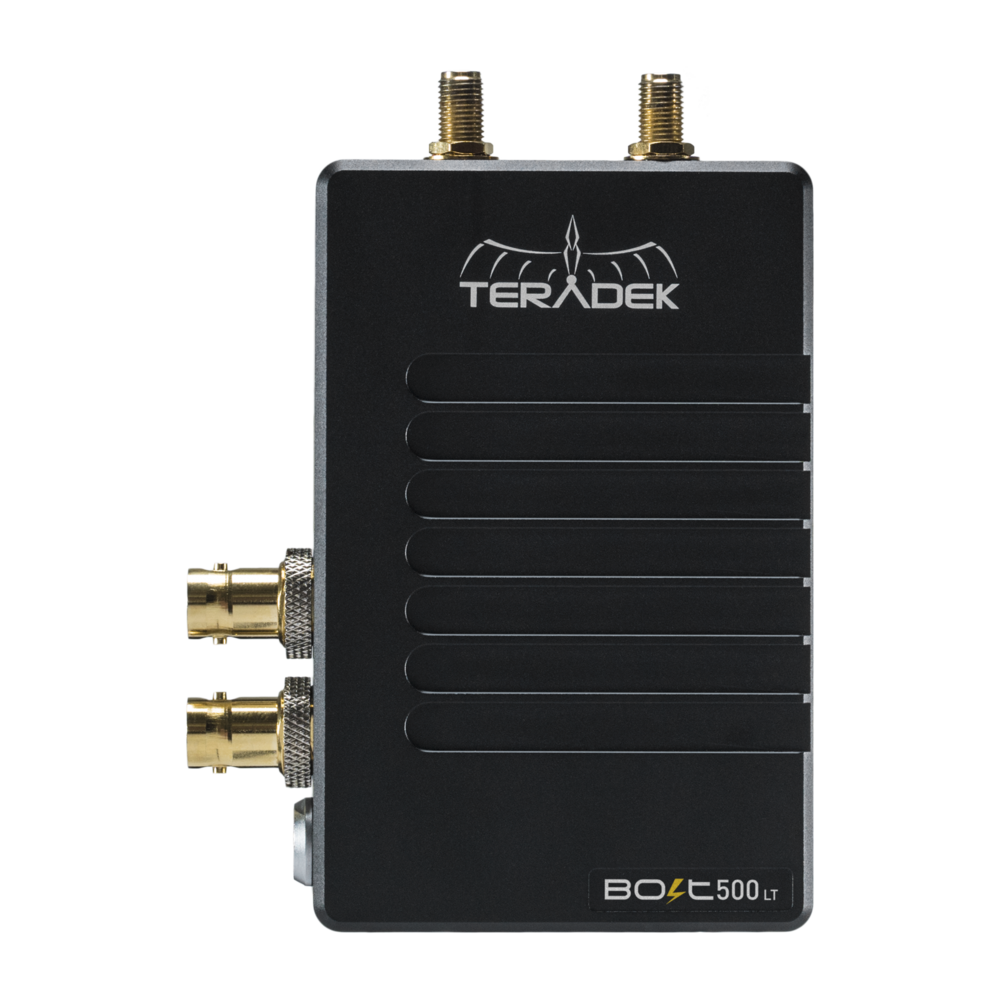

Bolt 500 LT 3G-SDI Wireless TX – SDI – 10-1926

Compatible with 3rd generation Bolt 500, Bolt 500 XT, Sidekick II, Focus Bolt RX, and 703 Bolt

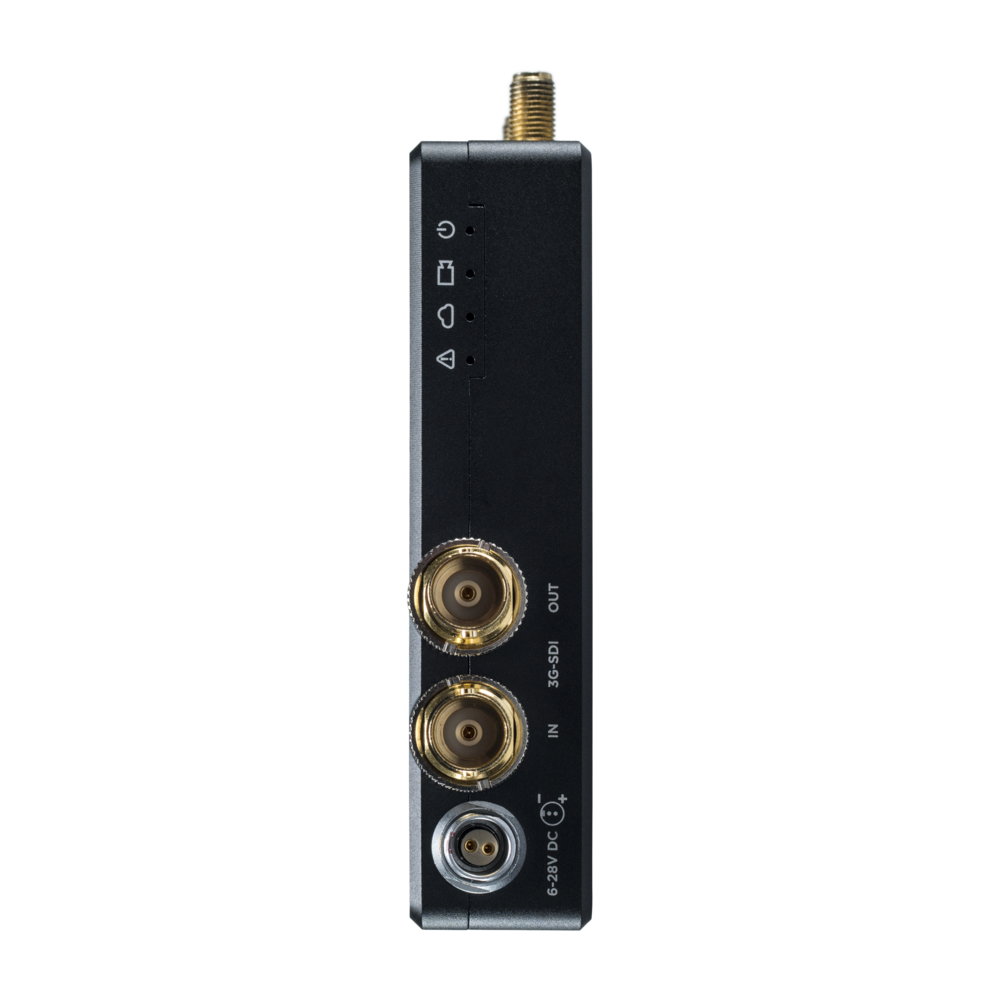

SDI loop out on TX
External antennas on Bolt 500 TX
Smaller and lighter chassis design with robust mounting points (3/8” and ¼”-20)
Extremely affordable and offers the same wireless performance as the XT

SKU: 10-1926 Categories: , Tags: , , , , , , , ,

Bolt LT
The Bolt LT takes Teradek’s industry-leading wireless performance and packages it into an affordable, streamlined series of zero-delay wireless video systems. The LT line is available in 500ft. or 1000ft. max-range models, with the LT 500 offering external antennas on the transmitter for enhanced wireless performance.

Not only lighter, but smaller too, the Bolt LT is the essential, no-frills high performance wireless video system. Each transmitter includes a single 3G-SDI or HDMI input with matching looping output, while the receiver includes a single 3G-SDI or HDMI output. Several ⅜” and ¼”-20 mounting points allow Bolt LT to mount seamlessly to any camera rig and integrated bi-directional Sony L-series or Canon LP-E6 pass-through battery plates allow you to power your system far more easily than before.

The Bolt LT also retains critical features from the previous generation, including AES 128 encryption to protect your video feed from prying eyes and multicasting to up to 4 receivers. (10-1926) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek

Brand

Teradek

Teradek designs and manufactures high performance video solutions for broadcast, cinema, and general imaging applications. From wireless monitoring, color correction, and lens control, to live streaming, SaaS solutions, and IP video distribution, Teradek technology is used around the world by professionals and amateurs alike to capture and share compelling content. Sematron Italia official Teradek distributor - Sematron Italia distributore ufficiale Teradek Rivenditore di tutti i prodotti Teradek: Teradek Bolt 4k, Teradek Bolt, Teradek RT, Teradek Serv Pro, Teradek Ace 500, Teradek Ace 800, Teradek Colr, Teradek Aci, Ip video, Teradek Prism, Teradek Vidiu Go, Teradek Bond, Teradek Cube Encoder Decoder, Teradek Core, Teradek Sharelink, Teradek Airmix, Teradek Orbit PTZ, Teradek Ranger, Teradek Link Pro, Teradek Link, Teradek Node
Weight 2 kg
Dimensions 7 × 7 × 5 cm
In the box

This set comes with 1 transmitter only. You will need a corresponding receiver to work with the transmitter. 1 x 2-pin Connector to PowerTap 18 inch Cable 1 x Hot Shoe Adapter (1/4"-20 inch) 2 x Antenna 2dBi WiFi 2.4/5.8 GHz 1 x USB 2.0 Cable (A-Male to Mini-B) 1 x SDI BNC to BNC Cable
Specs

Technical Specifications: #Video – Video Inputs : 1 x SD/HD/3G-SDI (75 Ohm BNC) – Sdi Compliance : N/A – Video Outputs : 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC) – Sdi Ancillary Data Support : supports metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087 – Color Sampling : SDI: YCbCr 4:2:2, 8-bit – Input Cross Conversion : N/A – Delay Tx To Rx : <0.001sec (without format conversion) #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i(NTSC)/576i(PAL) #Video Processing – Video Compression : visually lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : None – Color Correction : N/A #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 0.95", x 2.6" x 4.47", (24mm x 66mm x 101.5mm) – Weight : 8oz (226g) – Construction : Milled Aluminum(Chassis) and regulation-compliant PCB – Mountability : Multiple mounting options with M3 and 1/4", holes 3/8" ARRI style accessory mount #Interfaces – Http : None – Configuration Interfaces : None – Switches : N/A – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager Application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : N/A – Wireless : Non-DFS Frequencies: US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz EU & JP: 5.19 ~ 5.23 GHz DFS Frequencies: US: 5.27 ~ 5.55 GHz and 5.67 GHz EU & JP: 5.27 ~ 5.67 GHz – Number Of Channels : N/A – Channel Bandwidth : 12x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : 17dBm – Rf Sensitivity : N/A – Range : Up to 500ft line of sight – Unicast Multicast : Unicast / Multicast – Noise Rejection : Can coexist with WiFi and 5GHz cordless phones #Power – Power Input : 2-Pin Connector 6-28 VDC – Power Output : N/A – Battery : None – Battery Runtime : N/A – Nominal Power Consumption : 7.3 Watts (Measured at 1080p60) – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 40 deg-C – Humidity : N/A
UPC

818264023099
Teradek : Bolt 500 LT 3G-SDI Wireless TX
