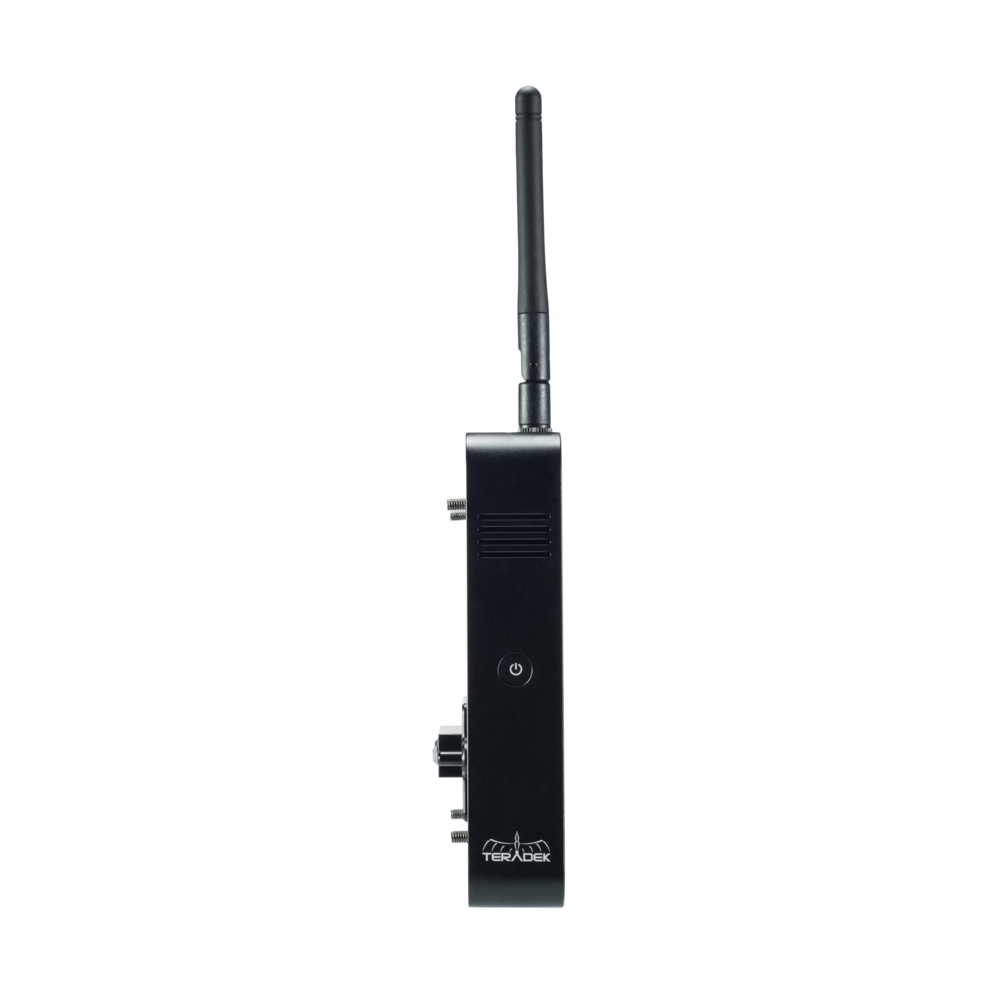

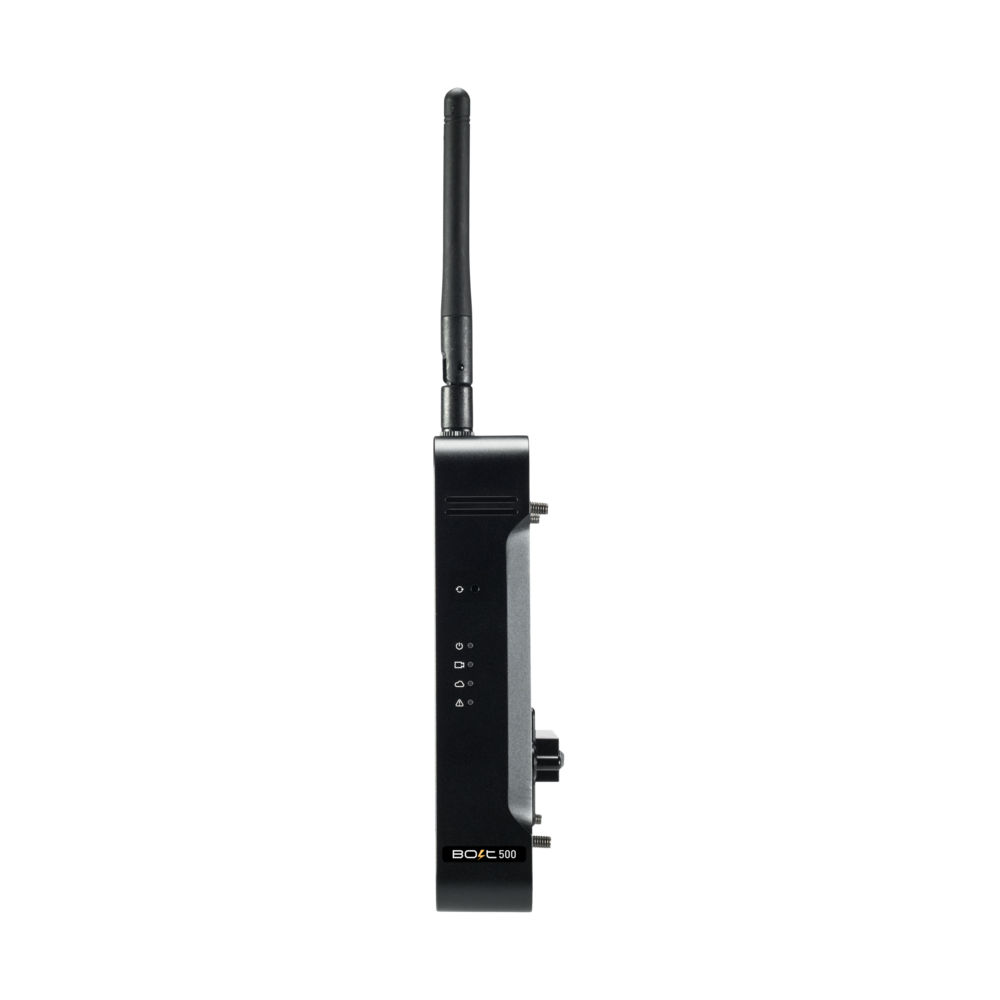

Bolt 500 for Sony VENICE mounts directly to the rear of the Sony VENICE and offers a streamlined solution for integrating high-performance wireless video without extraneous cables.
Clean Mounting

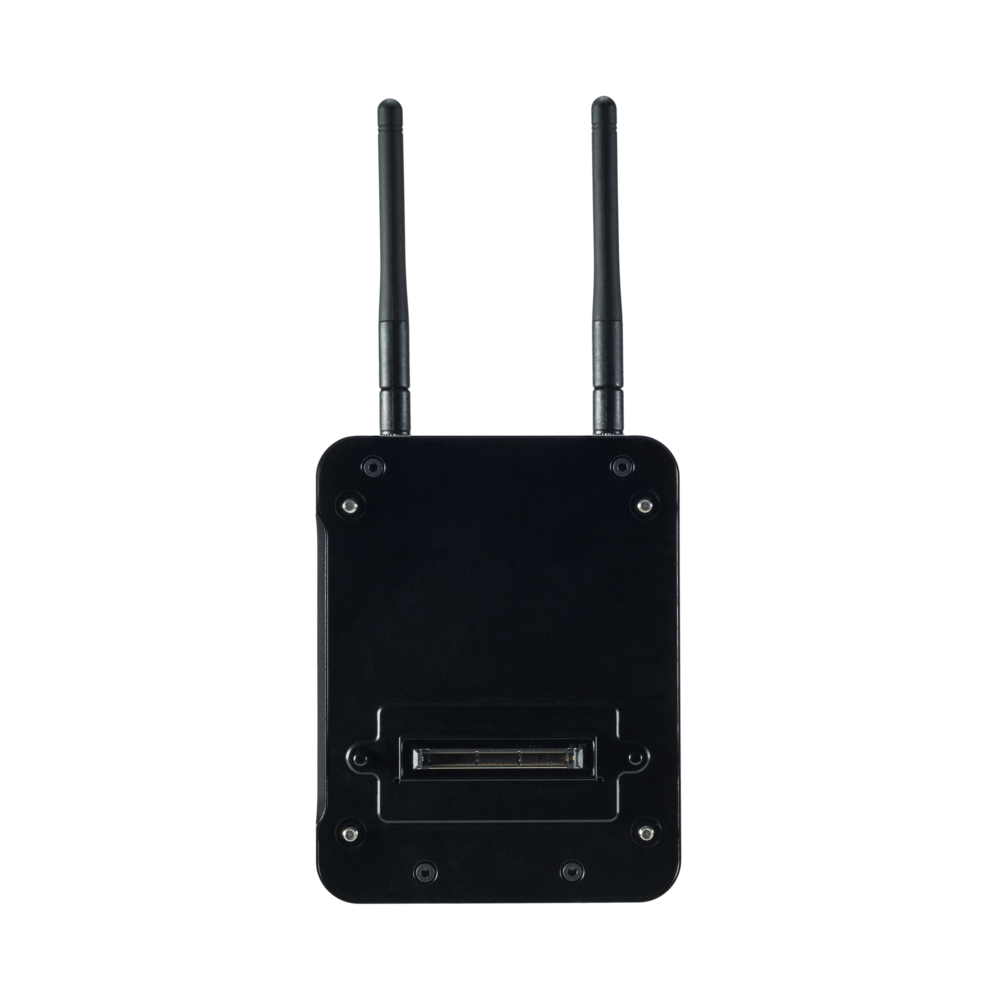

Modules pass-through data, audio and video via the camera’s rear 144-pin connector, eliminating clunky power and video cables while ensuring data path integrity from camera to other accessories such as the AXS-R7 recording module.
Compatibility
Bolt 500 for Sony VENICE is compatible with all Bolt 500, LT & XT models, Sidekick II, and integrated SmallHD Bolt monitors.
Receivers
Send video from the transmitter to up to 4 receivers within 500 ft.
Software Features
Take advantage of Bolt’s powerful software features including 5GHz spectrum analyzer, manual channel selection (available on Bolt 1000 & 3000 models), 3D LUT engine, and much more.*
*Software features are activated on Bolt receiver units. (10-1939) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
Bolt 500 for Sony VENICE (Wireless TX) – Bolt 500 for Sony VENICE – 10-1939

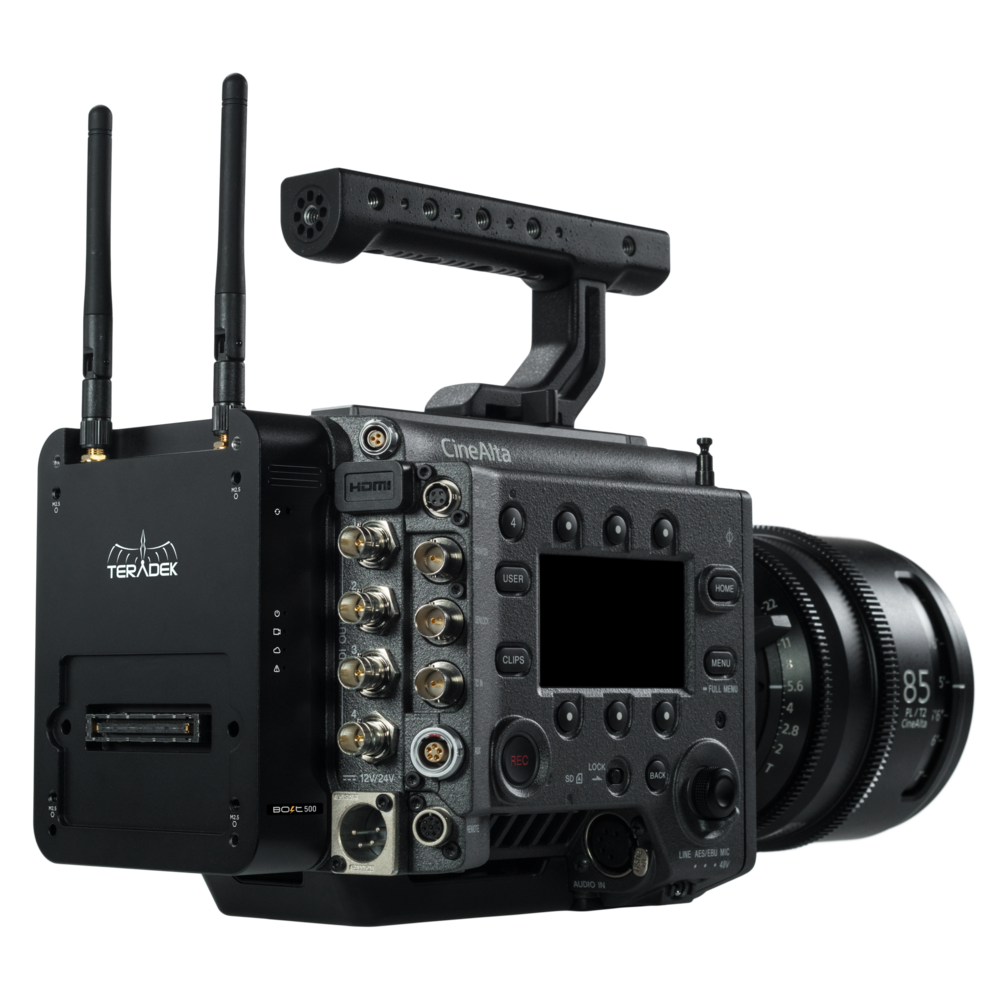

Attaches seamlessly to the Sony VENICE cameras, with pass-through power and video for a cable-free setup.
Zero-delay 1080p60 wireless video.
Up to 500 ft. of range.
Compatible with Bolt XT & LT receivers of the same range.
Compatible with Sidekick II and integrated SmallHD monitors.
Brand
Teradek
| Weight | 2 kg |
|---|---|
| In the box | 1 x Bolt 500 for Sony Venice1 x Hex L Key 2.5 mm size 3-5/8" length 1 x Mini-USB (5pin) to USB – 18in/45cm Cable [11-1267] 2 x Antenna 2dBi WiFI 2.4/5.8 GHz 1 x quickstart guide |
| Specs | Technical Specifications: #Video – Video Inputs : Sony Venice connector – Sdi Compliance : N/A – Video Outputs : none – Sdi Ancillary Data Support : metadata, timecode, and start/stop flags – Color Sampling : RGB 4:4:4, 8-bit – Input Cross Conversion : N/A – Delay Tx To Rx : <0.001sec #Bonding – Bonding : N/A #Supported Resolutions – Supported Resolutions : 1080p23.98/24/25/29.97/30/50/59.94/60 720p50/59.94/60 #Video Processing – Video Compression : Visually Lossless – Supported Video Bitrate : N/A – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : N/A – Video Format Conversion Support : N/A – Color Correction : N/A #Protocol Support – Network Protocols : N/A – Supported Video Transport Protocols : N/A – Remote Control : N/A – Software Or Platform Integration : N/A #Audio Processing – Audio Format : 48kHz 24-bit PCM – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input #Outputs – Audio Output : N/A #Physical – Dimensions : 106.71mm x 63.68mm x 20.54mm – Weight : 226g (8 Oz) – Construction : Milled aluminum chassis and regulation-compliant PCB – Mountability : Mounts directly to Sony Venice Brain #Interfaces – Http : N/A – Configuration Interfaces : None – Switches : On/Off and Pairing button – Recording Storage : N/A – Mobile App : N/A – Desktop App : Feature-rich Bolt Manager application for OSX & Windows – Usb Interface Functionality : Upgrade via Mini-USB – External Control : N/A – Bluetooth : N/A #Network – Ethernet : N/A – Antennas : 2 External 2dBi antennas (included) – Wireless : Non-DFS Frequencies: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz DFS Frequencies: 5.27 ~ 5.31 GHz – Number Of Channels : N/A – Channel Bandwidth : 12x 40MHz wide channels – Usb : N/A – Rf Channel Selection : Auto only (NOT configurable) – Encryption : AES-128 – Rf Power : up to 17 dBm – Rf Sensitivity : N/A – Range : Up to 500 ft line of sight – Unicast Multicast : one transmitter connects to up to 4 receivers – Noise Rejection : Coexists with WiFi and 5GHz cordless phones Operates up to 3 sets in same location #Power – Power Input : Sony Venice connector – Power Output : N/A – Battery : None – Battery Runtime : N/A – Nominal Power Consumption : up to 10W – Auxilary Power Input : N/A #Environmental – Operating Temperature : 0 ~ 50 deg-C – Humidity : N/A |
| UPC | 818264024133 |
