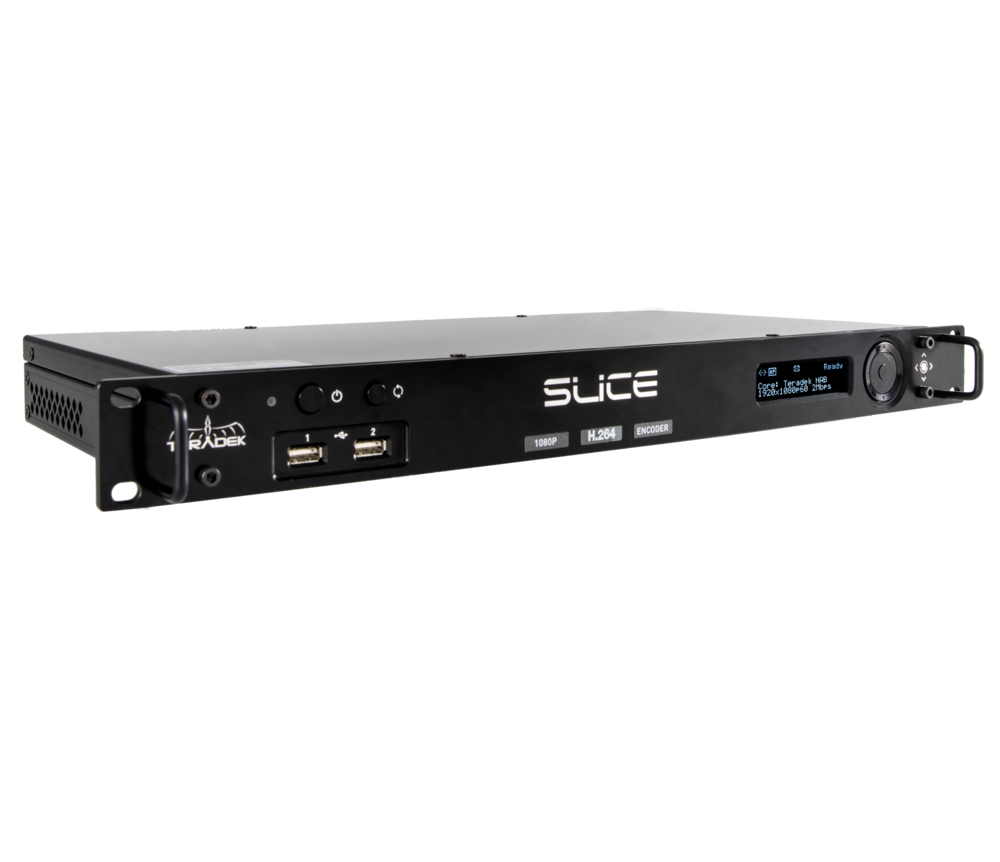

Rack Mount H.264 Encoder
Slice is a rack mount HD-SDI high profile H.264 encoder and decoder solution for mission critical enterprise applications. Slice enables video professionals to broadcast low latency high definition 1080p video for IPTV, streaming servers, OTT content, set-top boxes, and recorders at an unprecedented price.
Comprehensive Protocol Support
Slice encoders output a variety of stream types, including MPEG Transport Stream, RTMP, RTSP, and RTP Multicast.
Additional Features
Slice supports all standard resolutions up to 1080p at 10mbps. Slice can utilize IFB communication and remote monitoring features that give broadcasters full control over their IP video deployments.
Core Fleet Management
Core is Teradek’s new cloud-based encoder fleet management system. From a single elegant web GUI, you can monitor and control all of your Teradek encoders, cellular bonding systems, and decoders effortlessly. The interface allows you to direct streams from any one encoder to any number of decoders, even if both are behind firewalls or on private networks. All the encoding and transmission parameters can be controlled remotely from any location, allowing your field reporters to focus on the content and not the transmission gear. The automatic device discovery and drag and drop workflow makes entering IP addresses a thing of the past, while customizable warnings and notifications ensure that things keep operating smoothly. (10-0656) – Sematron Italia official Teradek distributor – Sematron Italia distributore ufficiale Teradek
Slice 656 – H.264(AVC) Encoder Rack Mount (includes MPEG-TS) – Slice 656 – 10-0656
Real-Time H.264 (AVC) Encoder
Dual-Band 2.4/5.8 GHz WiFi, Ethernet and USB Interfaces
HDMI and SDI Video Inputs
1U Rack Mount
Built-In Color Grading
Two-Pin Connector-Type Power Input
Brand
Teradek
| Weight | 14.5 kg |
|---|---|
| Dimensions | 24 × 14 × 6 cm |

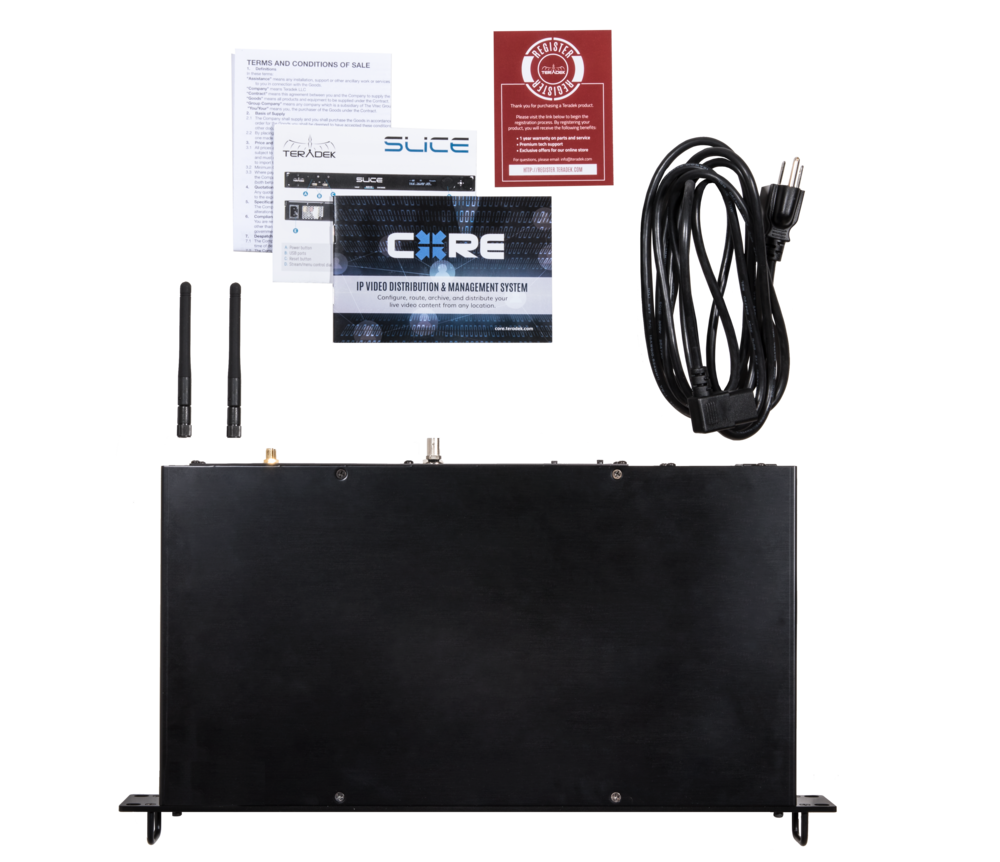

| In the box | 1 x Slice Encoder 1 x Quickstart Guide 1 x Power Cable IEC 2 x Antenna 2dBi WiFi 2.4/5.8 GHz 1-Year Warranty |
| Specs | Technical Specifications: #Video – Video Inputs : 1 x SD/HD-SDI (75 Ohm BNC) 1 x HDMI Type-A receptacle – Sdi Compliance : N/A – Video Outputs : N/A – Sdi Ancillary Data Support : N/A – Color Sampling : N/A – Delay Tx To Rx : N/A #Bonding – Bonding : TeraLink #Supported Resolutions – Supported Resolutions : 1080p 23.98/24/25/29.97/30/50/59.94/60* 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i 480i 480p (for HDMI input only) 576p (for HDMI input only) *Ingests 1080p50/59/60 #Video Processing – Video Compression : H.264, Baseline, Main and High Profile – Supported Video Bitrate : 250 Kbps to 15 Mbps* *15 Mbps (wired), 10 Mbps (WiFi) – Supported Video Bitrate Details : N/A – Supported Output Resolutions169 : N/A – Test Pattern Generator Support : Supports Custom Test Pattern – Video Format Conversion Support : Built in Video Scaler and Deinterlacer – Color Correction : CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) #Protocol Support – Network Protocols : TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP – Supported Video Transport Protocols : SRT RTMP RTP, RTSP, RTSP over HTTP MPEG-TS (MPEG-TS is an optional paid license) – Remote Control : Teradek Core – Software Or Platform Integration : Ustream, YouTube Live, Facebook & new Livestream #Audio Processing – Audio Compression : AAC-LC, MPEG Layer 2 – Supported Audio Bitrate Details : N/A #Inputs – Audio Input : Embedded Audio Input Analog Line or Mic in, adjustable gain #Outputs – Audio Output : Headphone output #Physical – Dimensions : 9.8", W x 17"D x 1.7", H (1U) [248.92 x 431.8 x 43.2mm] – Weight : 144oz [4082g] – Construction : Milled Aluminum – Mountability : Mount as industrial rack-mount or placed on a desktop for rugged commercial applications #Interfaces – Http : WebUI for Configuration and Control – Configuration Interfaces : OLED display with control dial navigation Feature-rich WebUI for configuration and control – Switches : On/Off and Reset Switch – Recording Storage : USB formatted FAT32 – Mobile App : Vuer, Live:Air – Desktop App : N/A – Usb Interface Functionality : 2x Powered USB 2.0 host port – External Control : N/A – Bluetooth : N/A #Network – Ethernet : 10/100/1000 BASE-T Gigabit – Wireless : WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo – Usb : USB 3G/4G Modem support** ** refer to this article on which modems are known to be supported: https://support.teradek.com/hc/en-us/articles/217447037-What-3G-4G-USB-Modems-are-supported- – Rf Channel Selection : Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only) Configurable to specific channels – Encryption : 802.1x, 802, 11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES – Rf Power : N/A – Range : N/A – Unicast Multicast : N/A – Noise Rejection : N/A #Power – Power Input : 110/240V AC Power Input – Power Output : N/A – Battery : No Battery Included – Battery Runtime : N/A – Nominal Power Consumption : 8W, 7W (no WiFi) – Auxilary Power Input : 6-28V DC #Environmental – Operating Temperature : N/A – Humidity : N/A |
| UPC | 818264020548 |
